ORION Quick Read-All
The ORION Quick Read-All screen displays readings for all ORION Migratable and Classic endpoints in range, up to 50 readings
One endpoint may display several readings during a Quick Read
NOTE:
N
Make sure the handheld is configured for the type of endpoint you want to read See
for more
information.

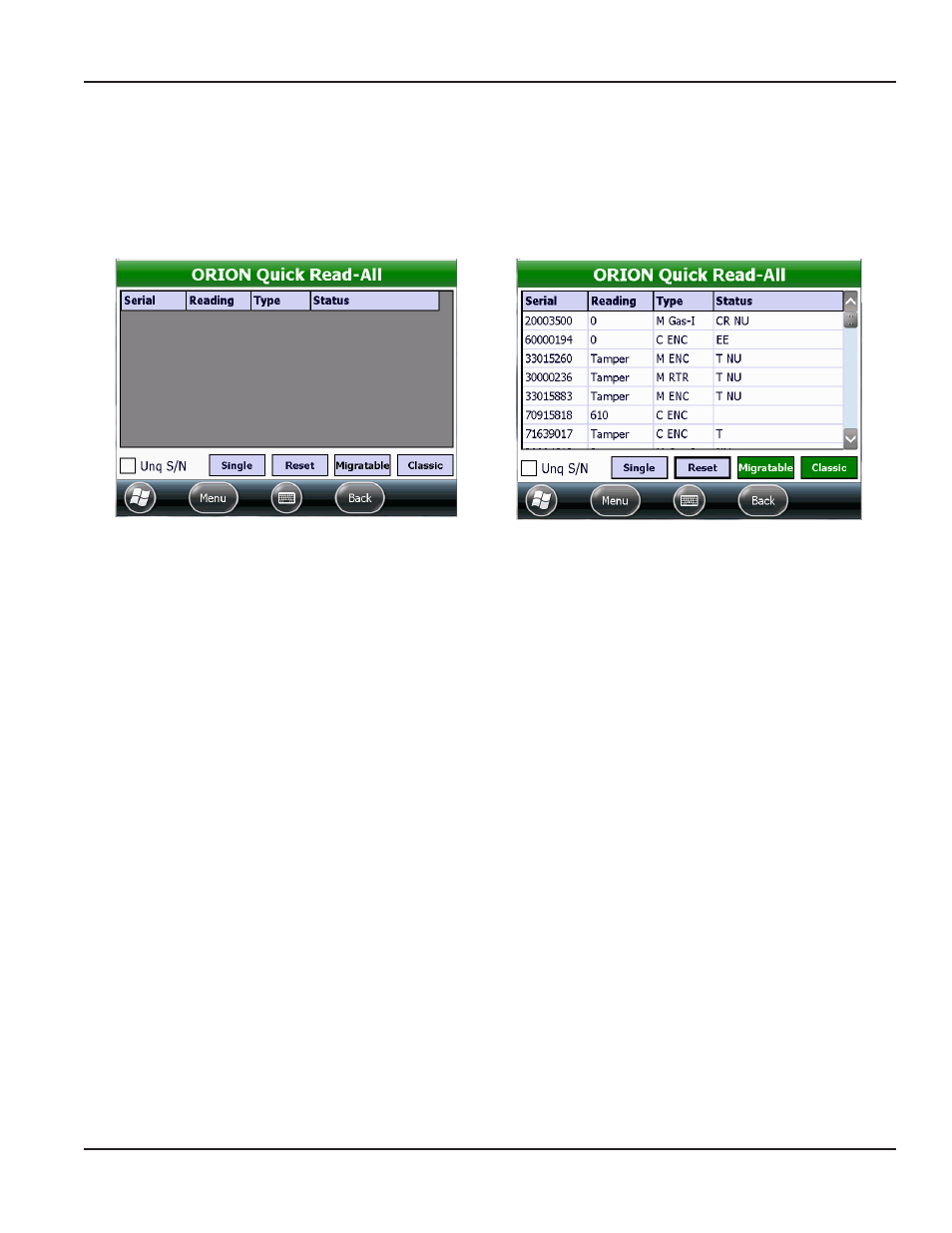

Figure 66: Quick Read-All screen without readings
Figure 67: With ORION endpoint readings
Fields Quick Read-All
Serial
Displays the endpoint serial number
Reading
Displays a reading for the corresponding endpoint serial number
Type
Displays the encoder type
Status
Displays any potential exception issues such as a tamper (T) or no usage (NU) If no exception is noted, the
Status field is blank
NOTE:
N
For a list of status codes and their descriptions, see
Buttons Quick Read-All
Single/List
Displays the quick read of a single endpoint or a quick read list of all endpoints Tap Single or List to toggle
between the individual endpoint view and list view
Reset
Clears the current screen Tap Migratable and/or Classic to begin reading again
Unq S/N
Displays each unique endpoint serial number once if the box is checked
Save
Captures a Quick Read session and saves it to a file on the handheld
NOTE:
N
These files are not included with the route reading files
Migratable
Tap Migratable once to start reading ORION Migratable water and gas endpoints Tap again to stop the
Quick Read
Classic
Tap Classic once to start reading ORION Classic water and gas endpoints Tap again to stop the Quick Read
