5 Place the endpoint into position
NOTE: N Put the endpoint into its final physical
location For example, with a pit lid
installation, mount the endpoint according
to the pit lid installation instructions before
proceeding
6 Align the optical head of the IR cable with the
endpoint IR LED port and tap IR GO
Result: The software goes through a series of steps to
complete the Ping.

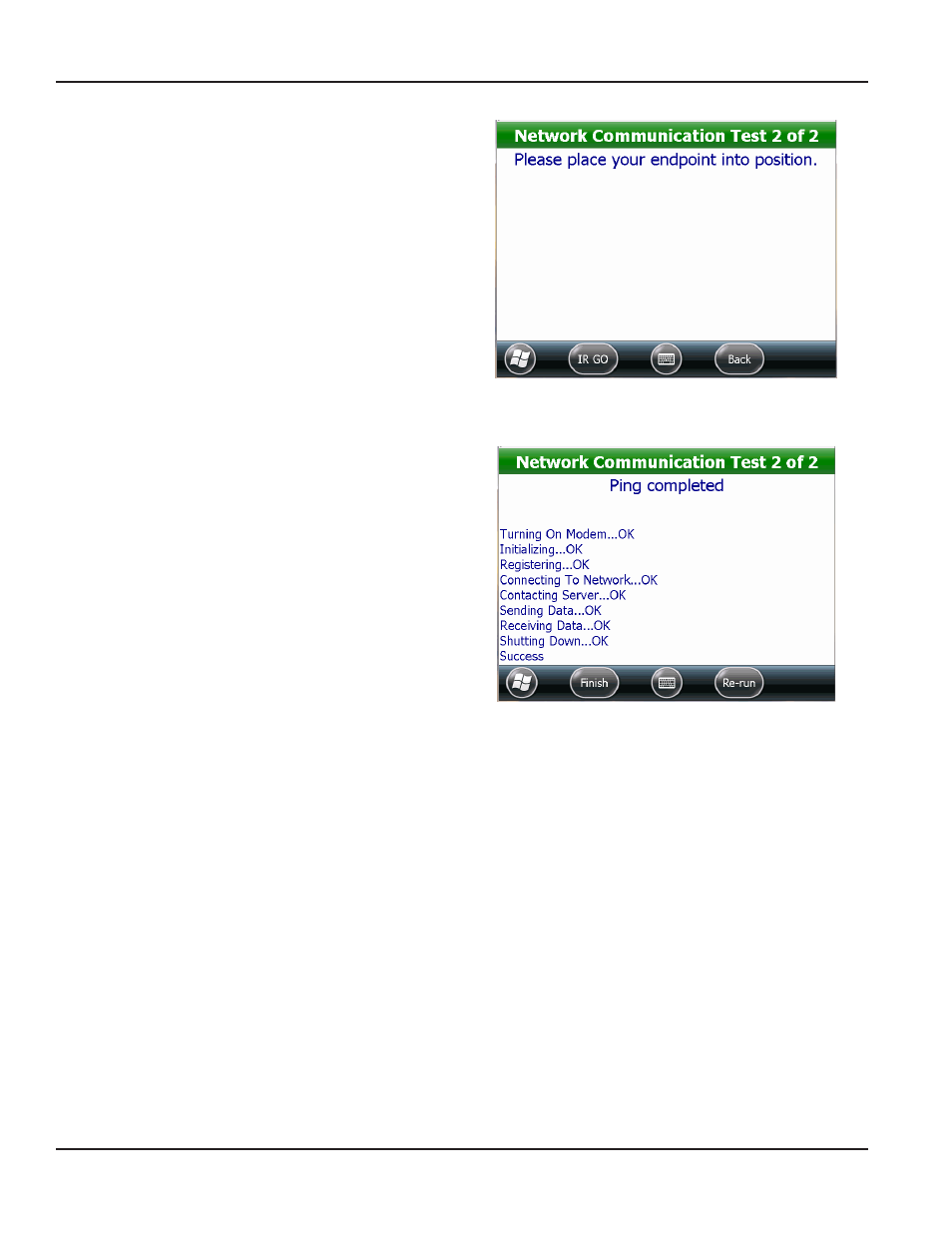

Figure 91: Place the endpoint
“Ping completed” displays when the communication
test is complete.
7 Tap Finish to return to the Network Communication
Test main screen
Figure 92: communication test complete
ORION NETWORk cOMMUNIcATION TEST
Page 56 April 2014 ORION® Endpoint Utility for Trimble® Ranger 3
