ENC Extended Status

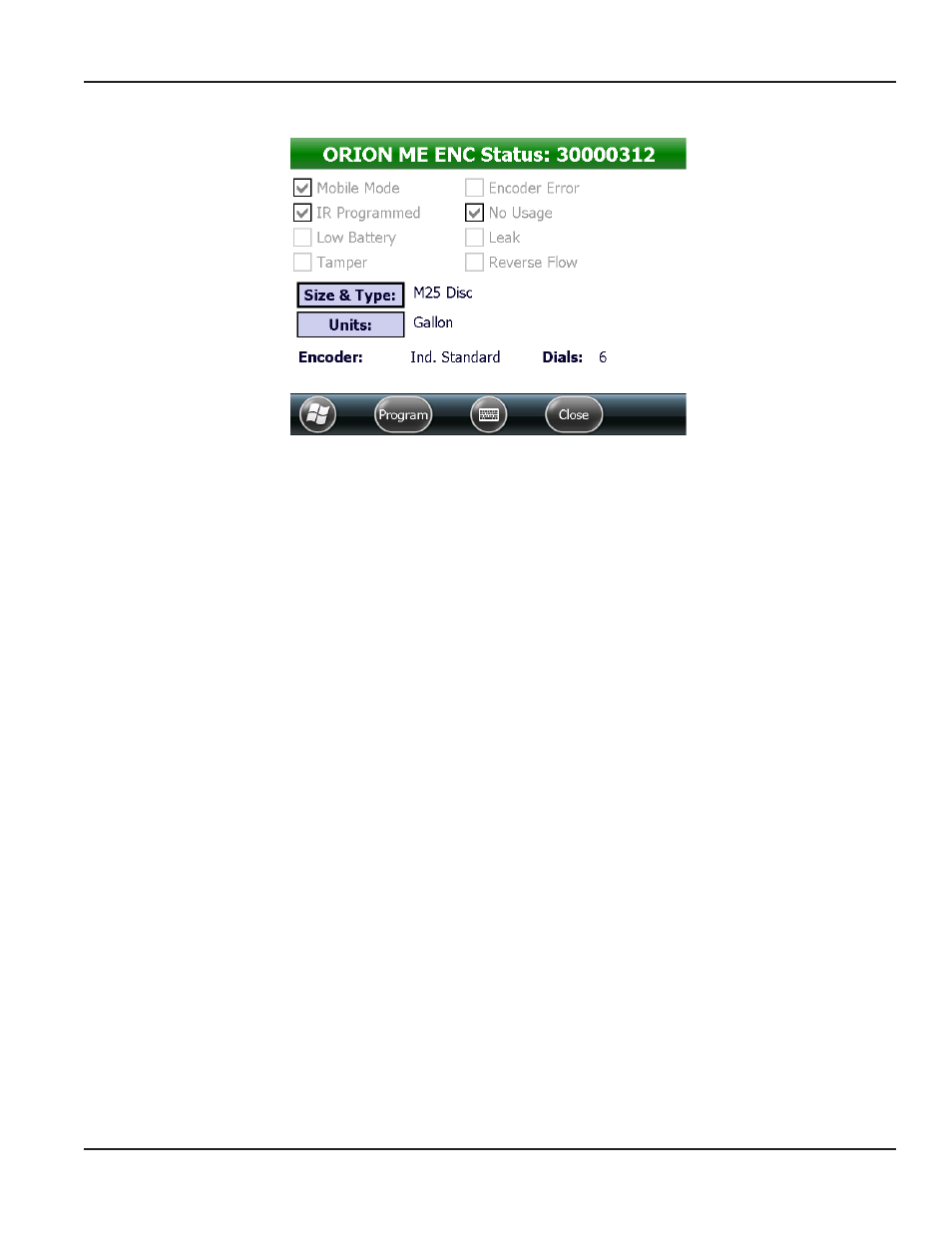

Figure 27: Extended Status - AdE
The status indicators described below apply for an ORION Migratable or Fixed Network (in mobile mode) endpoint when
connected to an ADE encoder (ENC)
Status Indicator Description
Mobile Mode Endpoint is communicating in mobile transmission mode
IR Programmed Endpoint has been reprogrammed via IR
Low Battery Endpoint is reporting a low battery condition
Tamper Endpoint is reporting a tamper condition This condition occurs when the wire between the register
and the endpoint is cut or shorted, or the encoder is not connected
Encoder Error Device error reported by the endpoint when the encoder exhibits a temporary or permanent failure
to extract the current reading
No Usage Endpoint is reporting a no usage condition This condition occurs when there is no water flow
registered over a 30-day time frame
Leak Endpoint is reporting a potential condition when there is continuous usage over a 24-hour time
period without a non-usage period of about 2 hours
Reverse Flow Encoder is reporting a reverse flow condition to the endpoint
Encoder Information Description
Size & Type The size and type of the meter for which the encoder was programmed Tap the button to change
the meter size and type See "IR Programming Meter Size, Type and Units of Measure (RTR, AdE)"
on page 28 for more information
Units The units of measure as defined by the encoder: cubic meters, cubic feet, gallons, imperial gallons or
liters Tap the button to change the units See "IR Programming Meter Size, Type and Units of Measure
(RTR, AdE)" on page 28 for more information
Encoder The encoder protocol
Dials The encoder dial resolution (4-, 5- or 6-dials) as reported from the encoder
NOTE: N Refer to the ORION Migratable Endpoint product data sheet, available at www.badgermeter.com , for
complete information
