IR Force Read (HR-E LCD, HR-E, ADE)
When an ORION Migratable (or Fixed Network in mobile mode) endpoint connected to an HR-E LCD, HR-E or ADE encoder is
read, the Force Read button displays instead of the Program button on the IR Programming screen Force Read is used to
view the real-time encoder odometer value and to verify a successful tamper repair
1 Align the optical head of the IR cable with the
ORION Migratable endpoint IR LED port
2 On the ORION IR Programming screen, tap Read to
read the endpoint
3 Tap Force Read
Result: The reading value updates to reflect the current
encoder odometer value. A reading will display if the
tamper condition no longer exists.

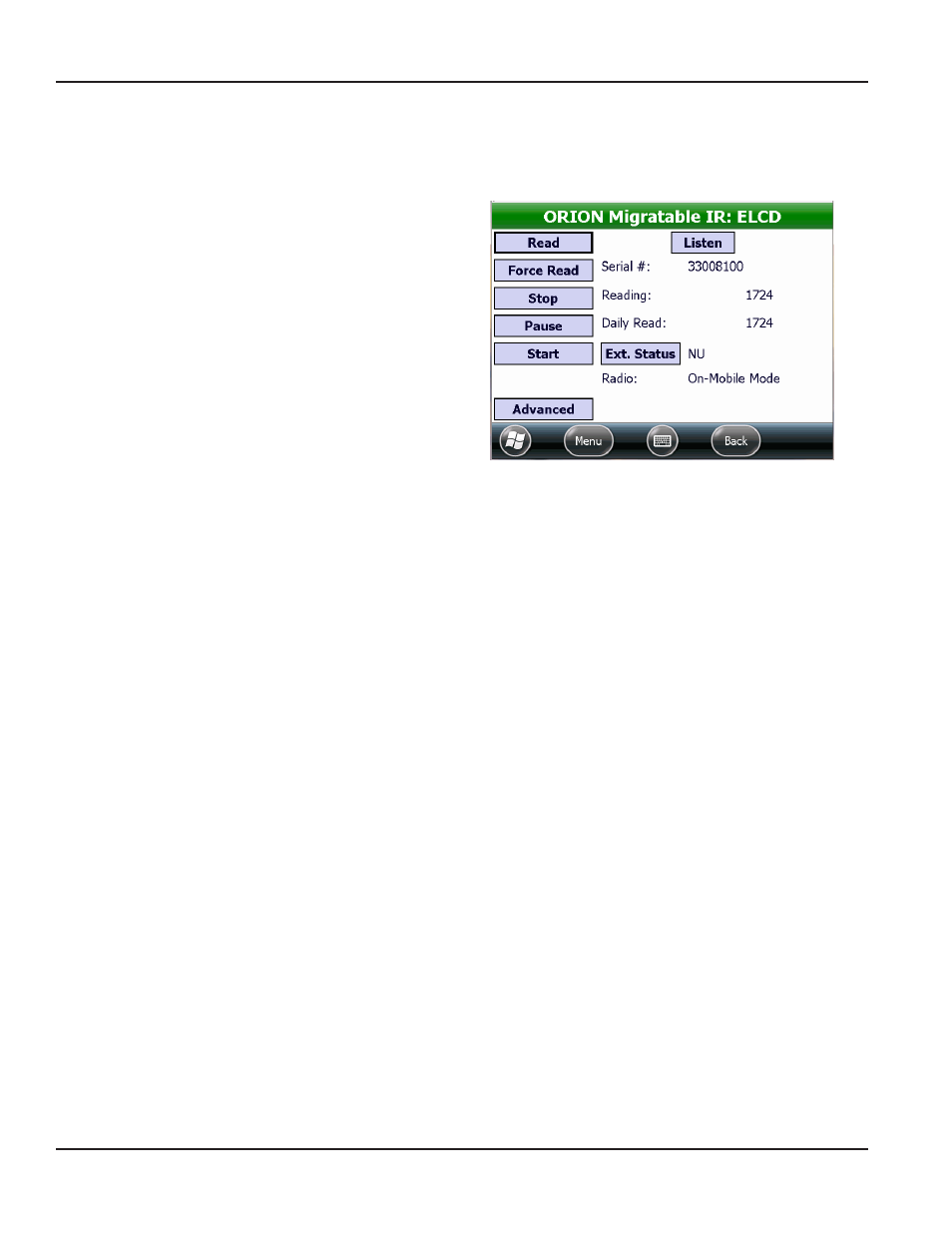

Figure 24: Force Read on E lcd
Listen
NOTE: N Prior to using the Listen function, make sure the handheld has a built in ORION Migratable transceiver or an external
mobile transceiver is connected and the appropriate COM port is set See "glossary" on page 70 if you need help
Tap Listen to activate radio frequency (RF) and display the RF quick read information for the selected endpoint when in
mobile mode For additional information, see "ORION Quick Read-Single" on page 46
