Warning:
ç
Use National Electric (NEC) or other
country-specific standard wiring and
safety practices when wiring and
connecting this controller to a power
source and to electrical sensors or pe-
ripheral devices. Failure to do so may
result in damage to equipment and
property, and/or injury or loss of life.
Note:
Maximum wire size termination and
torque rating:
• 0.0507 to 3.30 mm2 (30 to 12 AWG)
single-wire termination or two 1.31
mm2 (16 AWG)
• 0.8 Nm (7.0 in-lb.) torque
Note:
Adjacent terminals may be labeled
differently, depending on the model
number.
Note:
To prevent damage to the controller,
do not connect wires to unused ter-
minals.
Note:
Maintain electrical isolation between
digital input-outputs, switched dc/open
collector outputs and process outputs
to prevent ground loops.
Watlow EZ-ZONE ® RML Module • 24 • Chapter 2 Install and Wire
• 5 A at 240VÅ (ac) or 30VÎ (dc)
maximum resistive load
• 20 mA at 24V minimum load
• 125 VA pilot duty @ 120/240VÅ
(ac), 25 VA at 24VÅ (ac)
• 100,000 cycles at rated load
• Output does not supply power.
• for use with ac or dc
See Quencharc note.
- Slot D Outputs 1 - 6
RMLx-xx(J)x-xxxx
- Slot E Outputs 7 - 10
RMLx-xxx(J)-xxxx

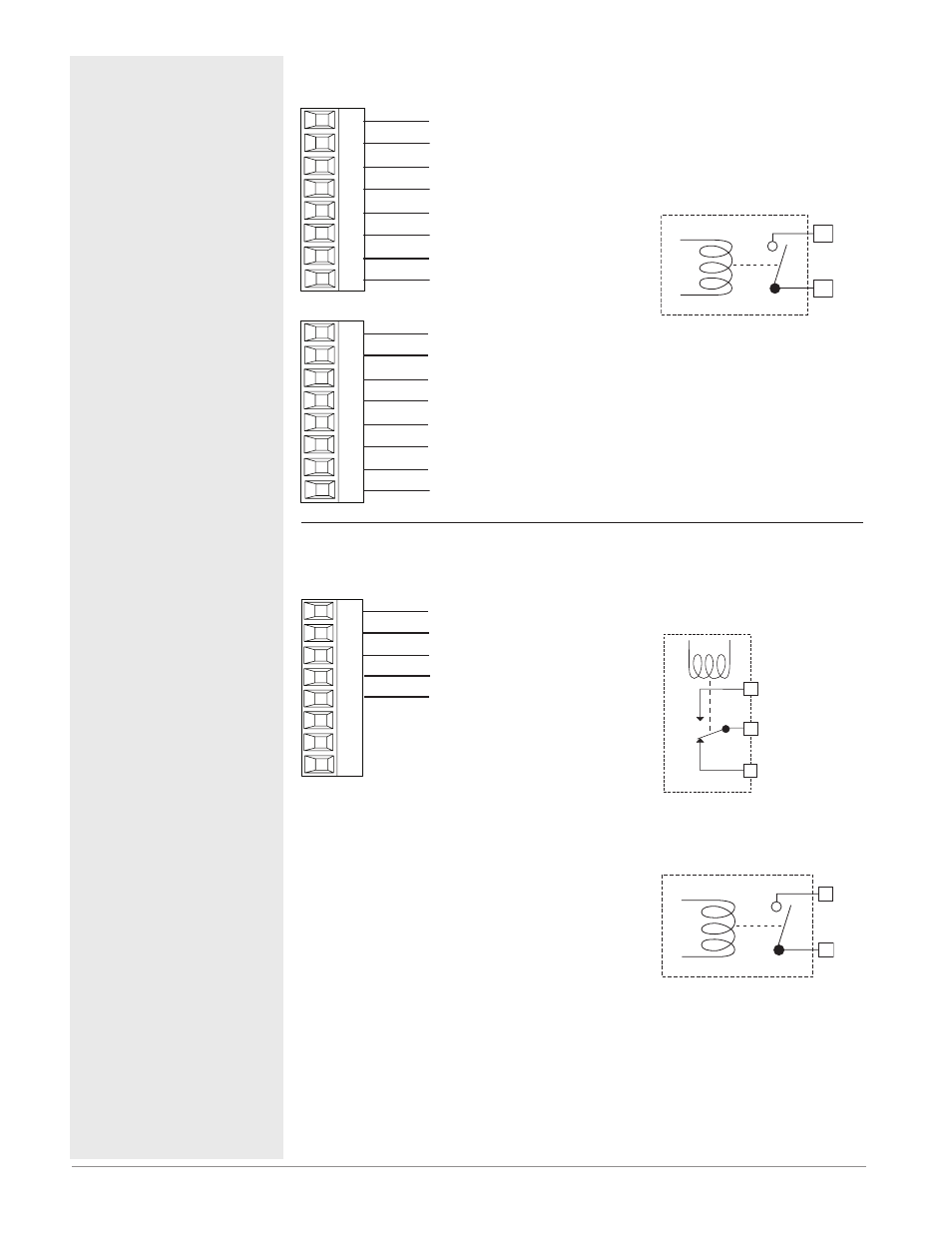

Output 1 - 4 and 7 - 10 Mechanical Relay, Form A
RML Part # Digit 7, 8 is J
normally open
common
L1
K1
L2
K2
L3
K3
L4
K4
Slot D
normally open
common
normally open
common
normally open
common
L_
K_
Mechanical RelayForm A
Internal Circuitry
normally open
common
L7
K7
L8
K8
L9
K9
L10
K10
Slot E
normally open
common
normally open
common
normally open
common
Output 7 and 8 Mechanical Relays, Form A
RML Part # Digit 8 is B
common
normally open L7
K7
J7
L8
K8
Slot E
normally closed
normally open
common
• 5 A at 240VÅ (ac) or 30VÎ (dc)
maximum resistive load
• 20 mA at 24V minimum load
• 125 VA pilot duty @ 120/240VÅ
(ac), 25 VA at 24VÅ (ac)
• 100,000 cycles at rated load
• Output does not supply power.
• for use with ac or dc
See Quencharc note.
- Slot E Output 8
RMLx-xxx(B)-xxxx
L8
K8
Mechanical Relay Form A
• 5 A at 240VÅ (ac) or 30VÎ (dc)
maximum resistive load
• 20 mA at 24V minimum load
• 125 VA pilot duty at 120/240VÅ
(ac), 25 VA at 24VÅ (ac)
• 100,000 cycles at rated load
• Output does not supply power.
• for use with ac or dc
See Quencharc note.
- Slot E Output 7
RMLx-xxx(B)-xxxx
normally open
common
normally closed
L _
K _
J _
Mechanical Relay Form C
