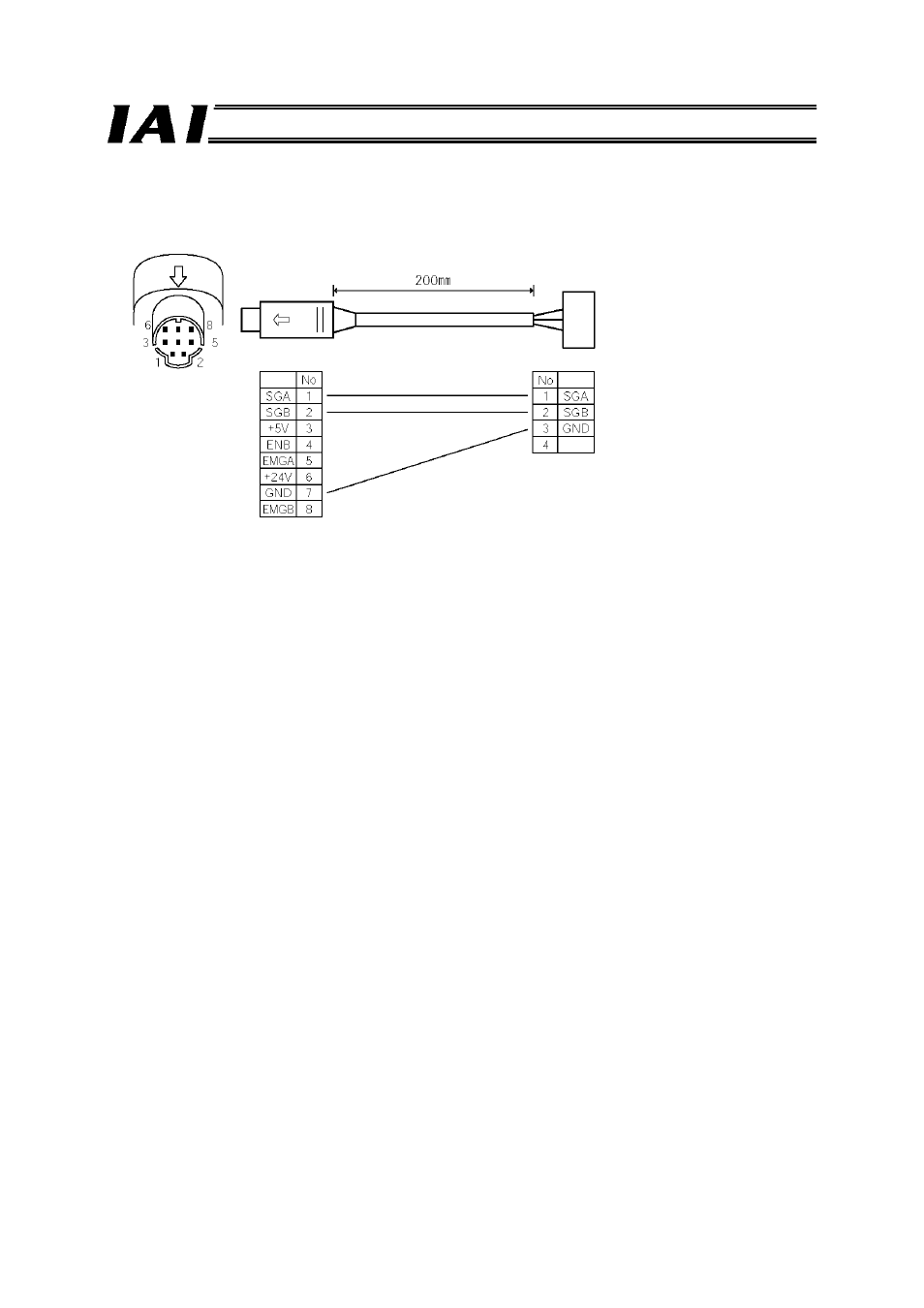

c. Controller link cable (CB-RCB-CTL002)
This is an optional cable for the controller. You must purchase this cable separately.
The following parts are supplied with the controller link cable.
[1] 4-way junction Model: 5-1473574-4 by AMP x 1 unit
[2] e-CON connector 4-1473562-4 by AMP x 1 unit
Outer diameter of applicable wire 1.35 to 1.6 mm
[3] Terminal resistor 220
Ω 1/4 W
With e-CON connector x 1 unit
Controller end
Mini DIN connector
e-CON connector
3-1473562-4
(Housing color: Orange)
Signal
Yellow
Orange
Blue
Signal
