115
PfofiBus Gateway

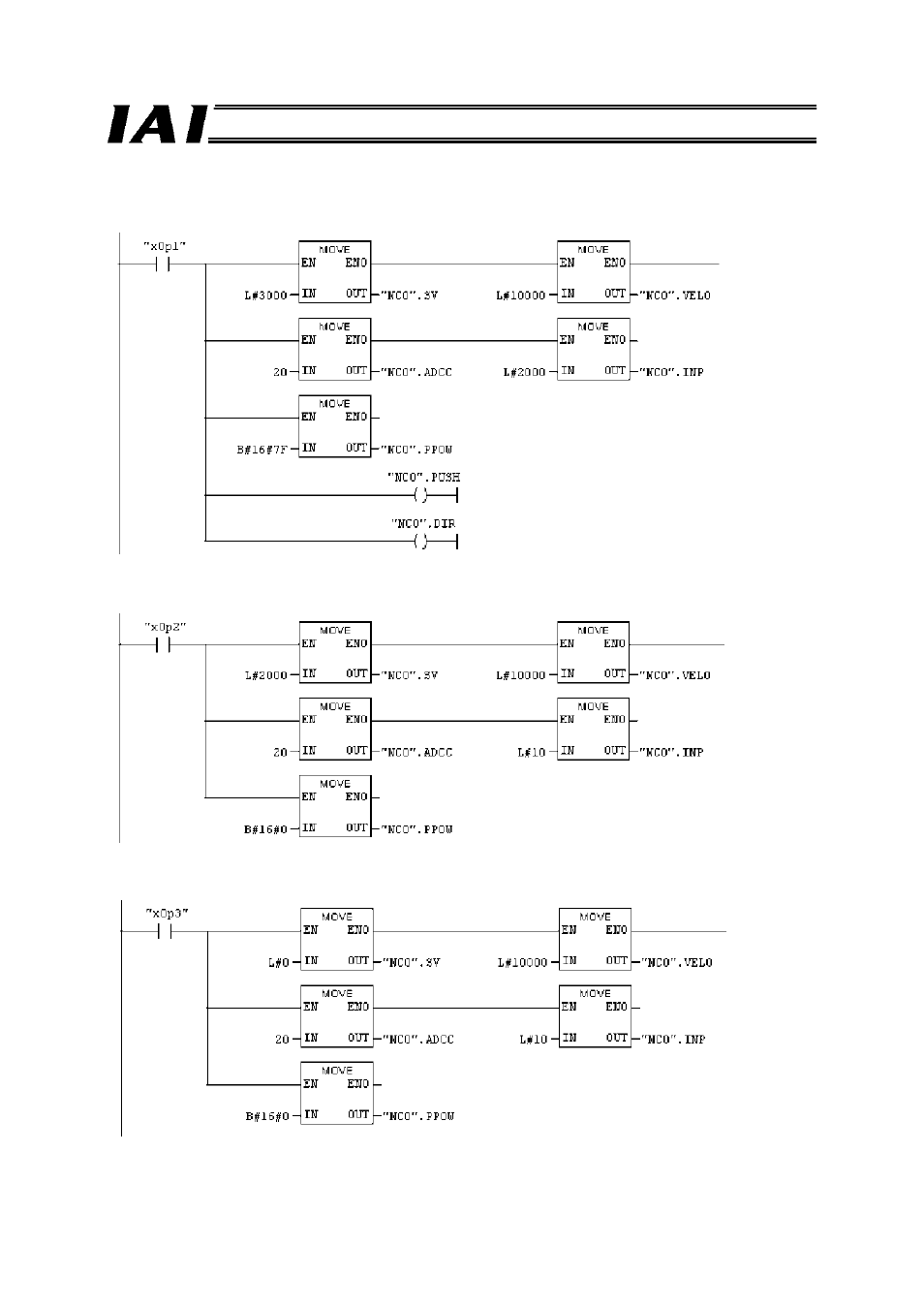

Step1 movement data set (push motion)
Target position: 30.00 mm Speed: 100.00 mm/s
Acceleration/deceleration: 0.2 Push band: 20.00 mm Push rate: 49% (7F / FF)
Step2 movement data set (normal movement)
Target position: 20.00 mm Speed: 100.00 mm/s
Acceleration/deceleration: 0.2 Positioning band: 00.10 mm Push rate: 0%
Step3 movement data set (normal movement)
Target position: 00.00 mm Speed: 100.00 mm/s
Acceleration/deceleration: 0.2 Positioning band: 00.10 mm Push rate: 0%
