Page 62

52

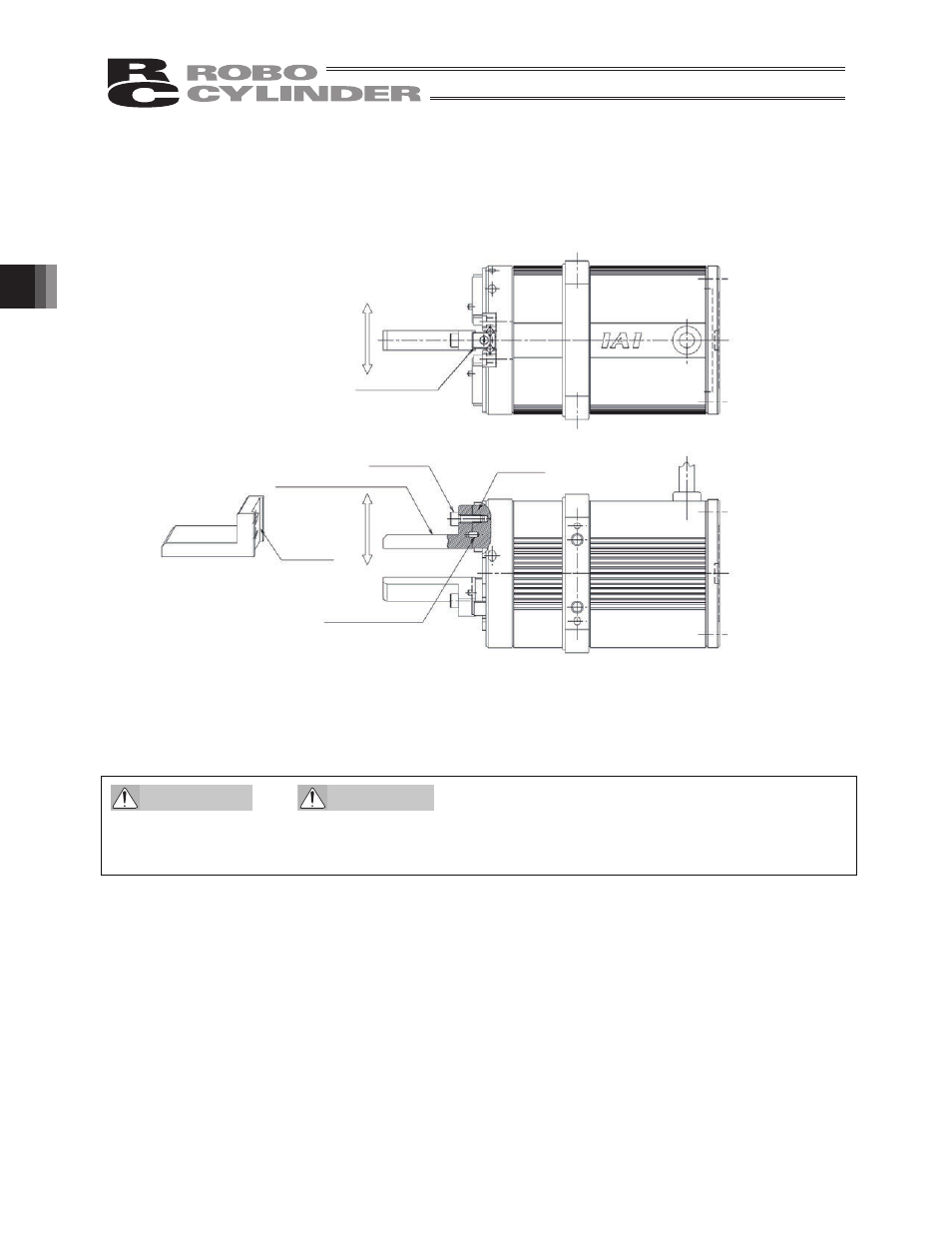

4. Installation Method
[RCP2-GR3SS/GR3SM]
Warning
Caution
x
When installing or removing the attachment to/from the finger, tighten the screw while holding the
attachment with a spanner wrench, etc., so that the guide will not receive any load or impact.
Finger
Positioning pin
Positioning in open/close directions
Open/clo
se
direction
s
Finger attachment
Affixing bolt
Shoulder contact surface
Positioning in vertical directions
Vertical
directions
Shoulder
contact
surface
