Page 58

48

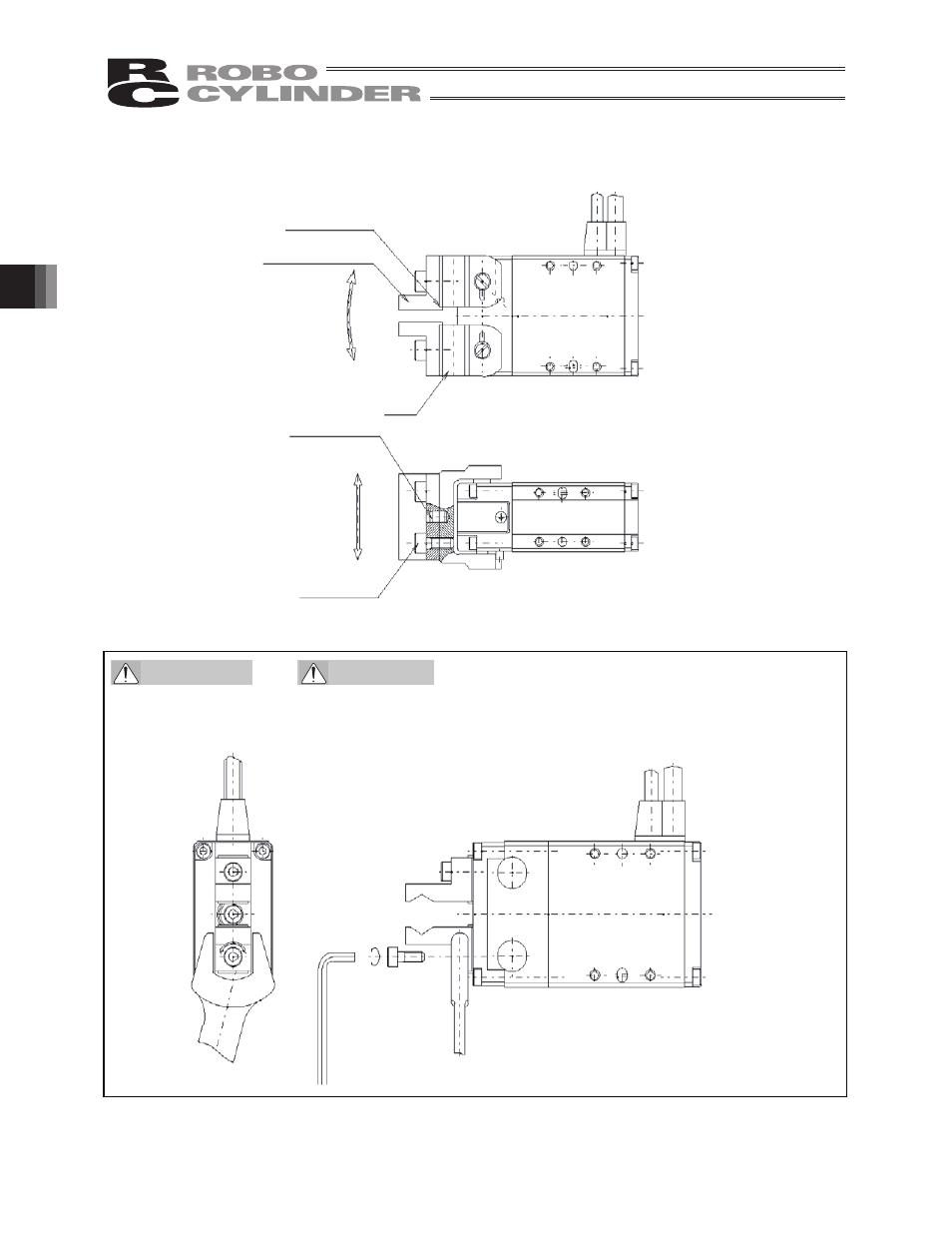

4. Installation Method
[RCP2-GRLS, RCP2CR-GRLS, RCP2W-GRLS]
Warning
Caution
x
When installing or removing an attachment to/from a finger, tighten the mounting bolts while securely
holding the attachment with a spanner wrench, etc., to prevent the guide from receiving any load or
impact.
Shoulder contact surface
Positioning in open/close direction
Lever attachment
Lever
Positioning pin
Positioning in
vertical direction
Affixing bolt M4
Open/close
directions
Vertical
directions
