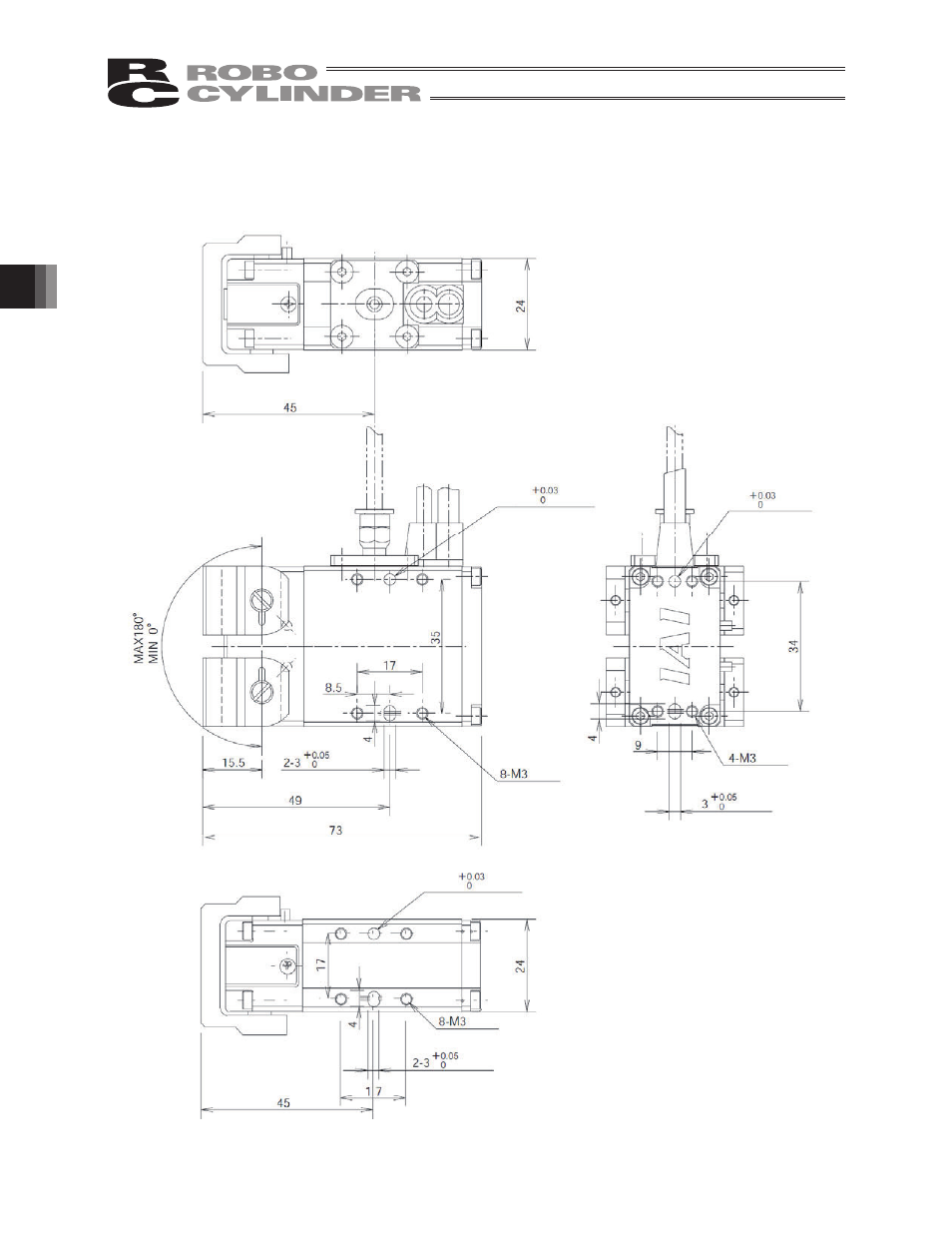

4. Installation Method
[RCP2CR-GRLS]
The cleanroom specification structurally allows installation on four surfaces.
Installation is not possible on the top surface due to the suction joint.
(Same on opposite side)
depth 3
depth 3
depth 5
(Same on opposite side)
depth 5
depth 5
(Same on opposite side)
depth 3
(Same on opposite side)
depth 3
depth 5
(Same on opposite side)
2-
3
(Same on opposite side)
depth 2.5
3
2-
3
