1. Appendix

11. Appendix

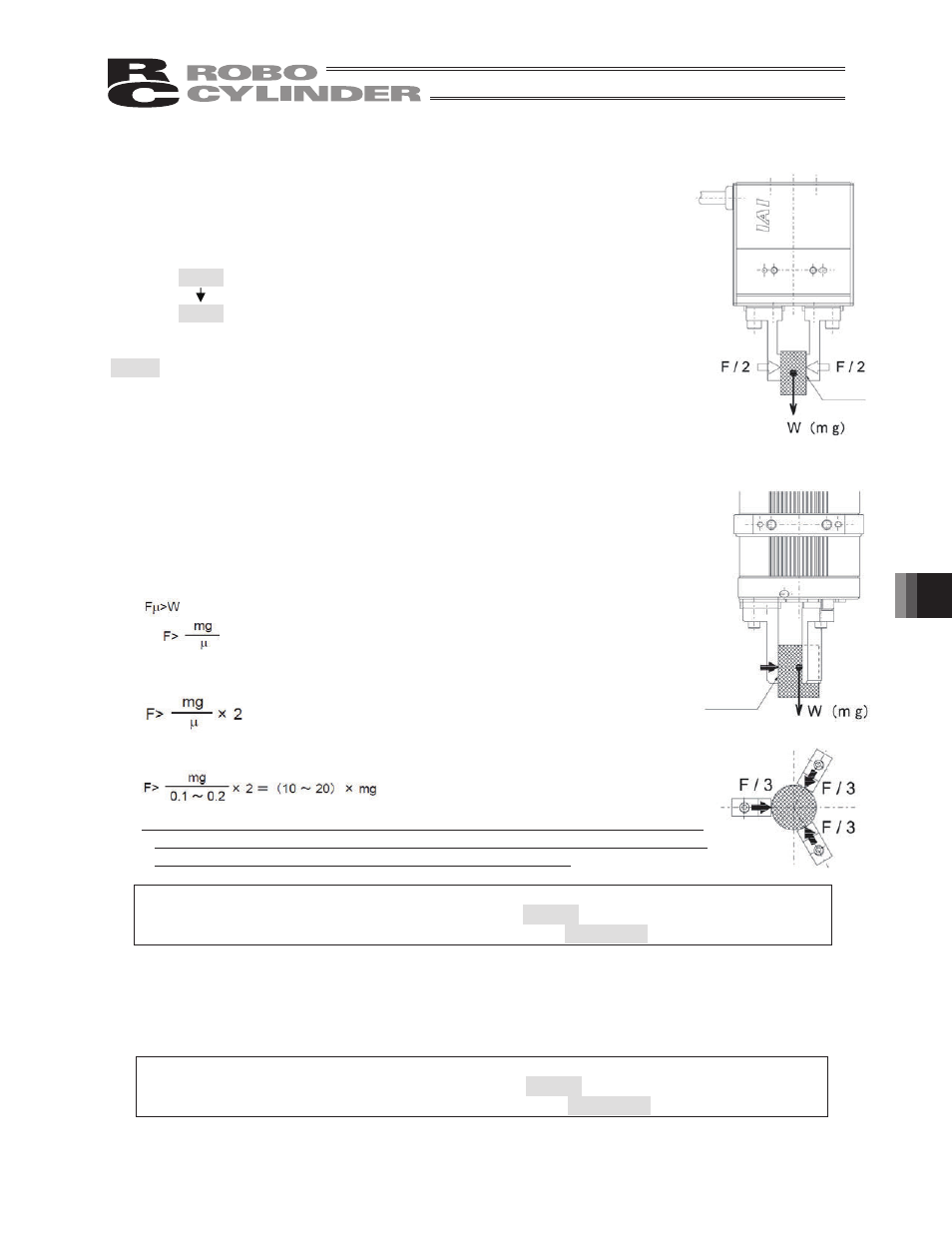

11.1 Notes on Use Regarding the Gripping Force

Upon using, the following conditions must be satisfied.

11.1.1 Slide

Type

Step 1: Check the required gripping force and work part mass that can be

transferred

Step 2: Check the allowable vertical loads and allowable moments

of the finger

Step 1: Check the required gripping force and work part mass that can be

transferred

When gripping the work part by utilizing the friction force generated by the
gripping force, calculate the required gripping force as explained below.

(1) Normal transfer application

F: Gripping force [N] --- Total sum of push forces of respective fingers
P: Static friction coefficient between the finger attachment and work part
m: Mass of the work part [kg]
g: Gravitational acceleration [= 9.8 m/s

2

]

The condition under which the work part can be gripped statically without
dropping is as follows:

Assuming a recommended safety factor of 2 in a normal transfer application,
the required gripping force is calculated as follows:

If the friction coefficient is

P0.1 to 0.2, the following equation is valid:

* The higher the static friction coefficient, the greater the work part mass that can

be transferred. To ensure safety, however, select an appropriate model that can
produce a gripping force of at least 10 to 20 times this value.

Normal transfer of work part

Required gripping force

Ÿ At least 10 to 20 times the mass of the work part.

Work part mass that can be transferred

Ÿ No more than 1/10 to 1/20 of the gripping force

(2) When the work part is subject to high acceleration/deceleration or large impact force during

transfer

The acceleration/deceleration or impact force is added to the gravity and an even stronger inertial
force acts upon the work part. In this case, increase the safety factor further to select an appropriate
model.

When a high acceleration/deceleration or large impact force is applied

Required gripping force

Ÿ At least 30 to 50 times the mass of the work part

Work part mass that can be transferred

Ÿ No more than 1/30 to 1/50 of the gripping force

(safety factor)

Friction coefficient

P

Friction
coefficient

P
