Page 41

31

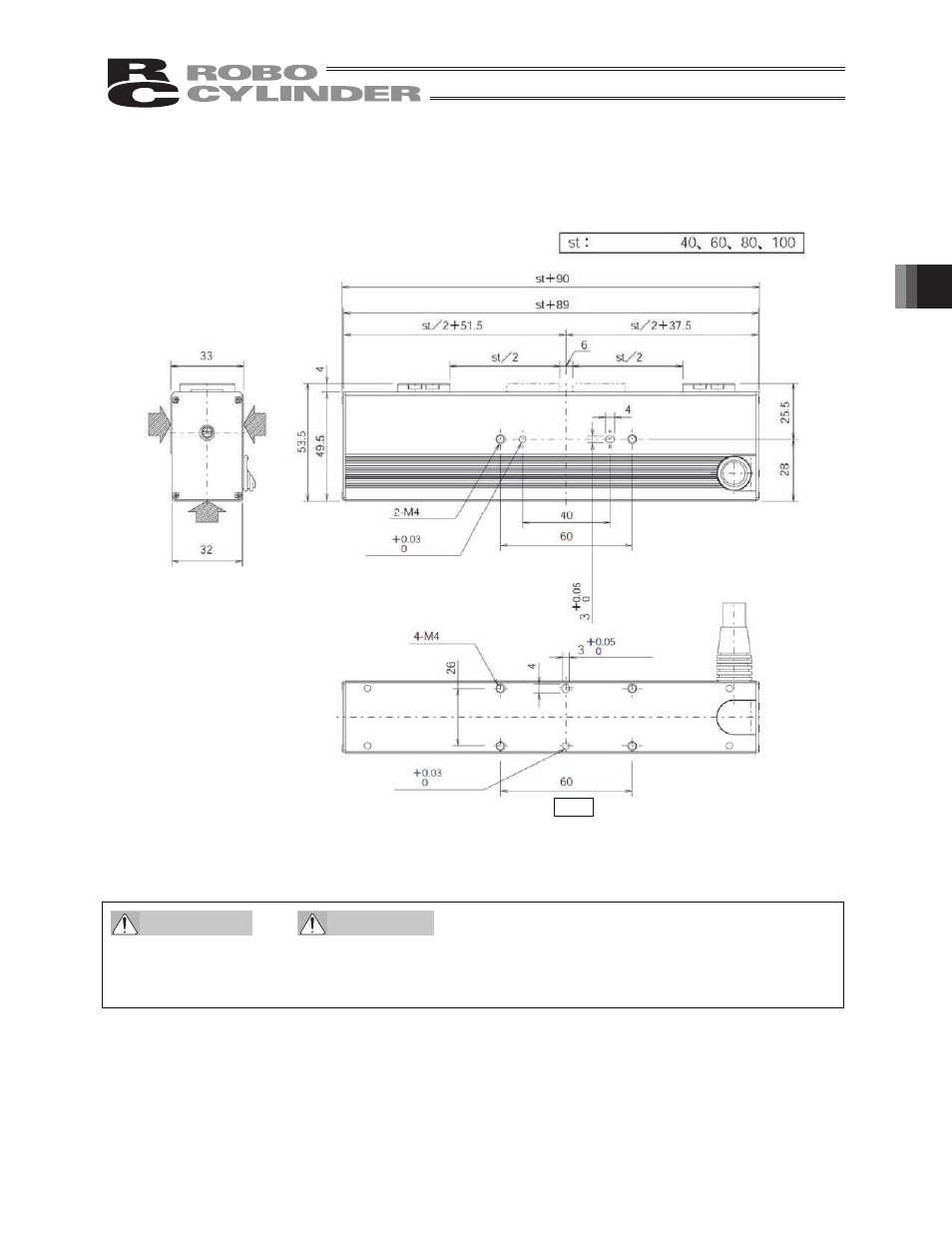

4. Installation Method
[RCP2-GRST]
The actuator is structured in such a way that it can be secured on one of its three sides.
Warning
Caution
x
Some of the tapped holes used for installing the gripper are through holes. Therefore, never use long
screws exceeding the effective thread length. They may damage the mechanical or electrical parts
inside the gripper.
depth 6
(Same on back side)
depth 3
(Same on back side)
Installation
surface
dept
h 3
Installa
tion
sur
face
Installa
tion
sur
face
(Sam
e on
back
side)
depth 5
depth 3
depth 3
Stroke
Rear
3
3
