11.2 Notes on Transferring Work Parts

If the fingers receive a strong force or impact other than the gripping force when transferring work parts,
the finger positions may deviate, looseness may occur or damage may result. Accordingly, pay due
attention to the points listed below.

‹ Cause the center of gravity of the work part to match the gripping point as much as possible. If the two

are not aligned, gravitational moments will force the work part to assume an unstable posture.

‹ While being gripped, the work part should have play (compliance) in the gripping direction. Also

perform thorough alignment and avoid using the gripper in a manner where loads concentrate on one
finger alone when a work part is gripped.

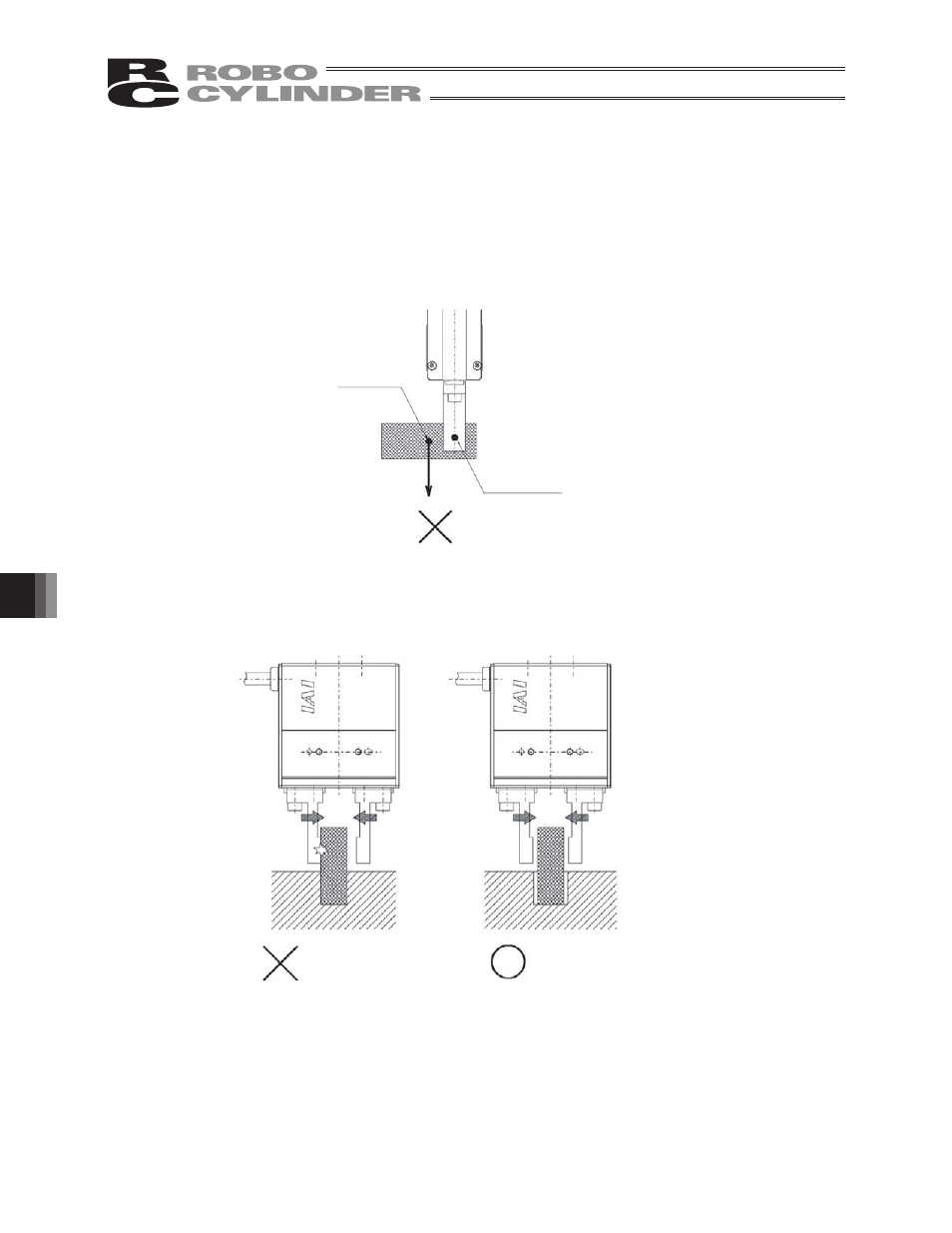

Gripping point

Center of gravity of
the work part

Unstable

No clearance is
available. Loads are
received unevenly.

Clearance is available.
