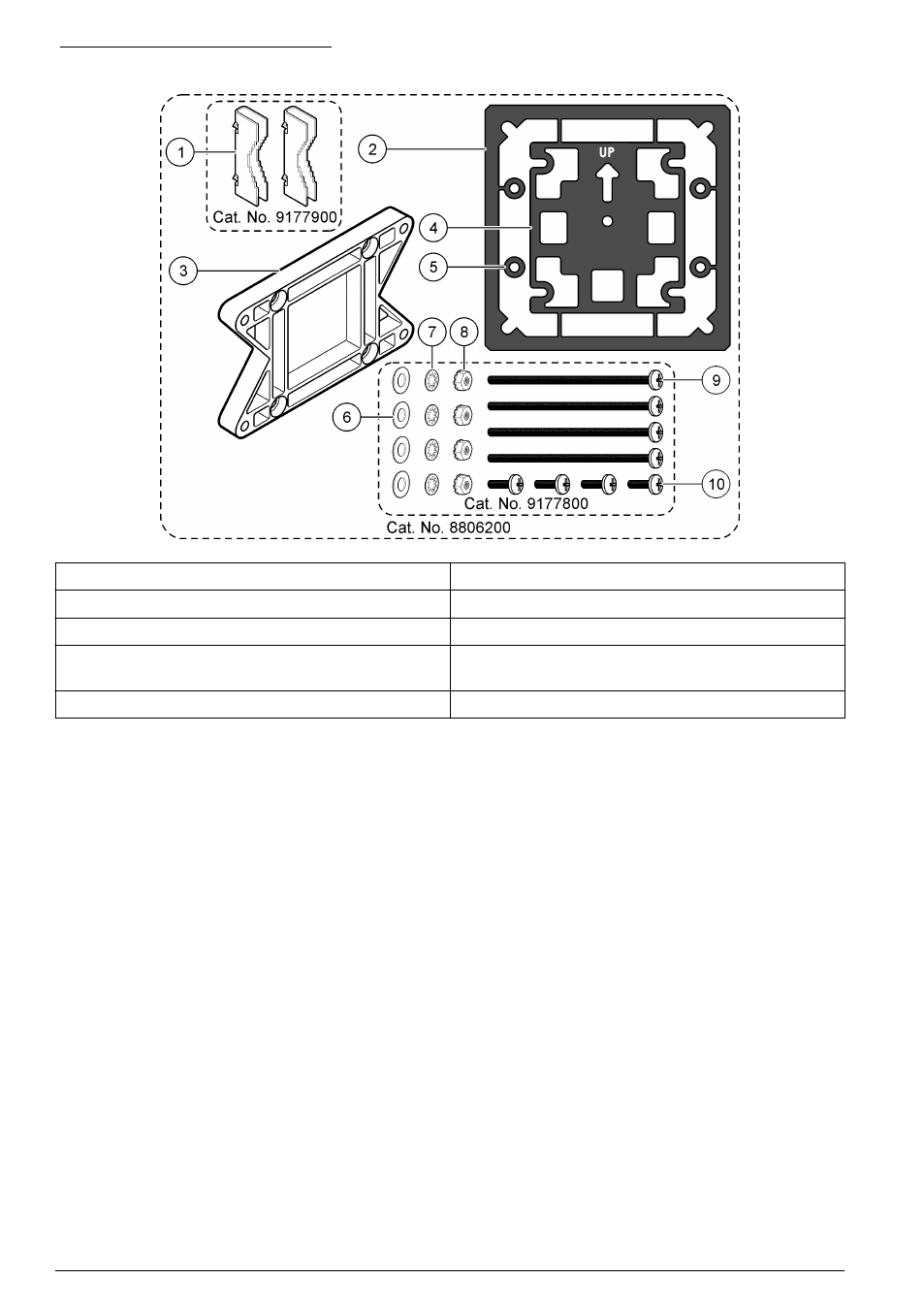

Figure 2 Mounting components

1 Mounting foot (2x)

6 Flat washer, ¼-inch ID (4x)

2 Sealing gasket for panel mount, Neoprene

7 Lock washer, ¼-inch ID (4x)

3 Bracket for wall and pipe mounting

8 M5 x 0.8 Keps hexnut (4x)

4 Vibration isolation gasket for pipe mount

9 Pan head screws, M5 x 0.8 x 100mm (4x) (Used for

variable diameter pipe mount installations)

5 Vibration isolation washer for pipe mount (4x)

10 Pan head screws, M5 x 0.8 x 15 mm (4x)

Note: A bracket for panel mounting is available as an optional accessory.
