© 2005 Alamo Group Inc. Section 8 - 12
Maverick (NH TS-100A,115A , 125A, 135A Asy. Man) 01/05
T1
BB
AA12
AA11
AA10
AA9
AA8
AA7
AA6
AA5
AA4
AA3
AA2
AA1
Z1
V1
Y2
Y1
H1
H2
F
X2
X1
R1
S1
G2
W 1
E
AA1 Swivel Cylinder, CCW
AA2 Swivel Cylinder, CW
AA3 Tilt Cylinder, Down
AA4 Tilt Cylinder, Up
AA5 Telescope Cyl, IN
AA6 Telescope Cylinder, Out
AA7 Dipper Cylinder, Down
AA8 Dipper Cylinder, Up
AA9 Lift Cylinder, Down
AA10 Lift Cylinder, Up
AA11 Swing / Door
AA12 Swing / Door
BB Solenoid Valve Connection for Diverter Valve
E Connector XT2 Module
F Connector XP2 Module
G2 Exterior Harness to G1 Interior Harness
H1 Lock Valve Connection
H2 Lock Valve Connection
R1 Cooler Fan Connection
S1 Temperature Connection Sensor
T1 Pump Solenoid 1 Connection
V1 Pump Solenoid 2 (Only on Timbercat Head)
W1 Charge Filter connection
X1 Return Filter Connection
Y1 Common, Connect to White Wire at Filter
Y2 Signal, Connect to Black Wire at Filter
Z1 Negative Chasis Ground
Connection Markings on Exterior Wire Harness:

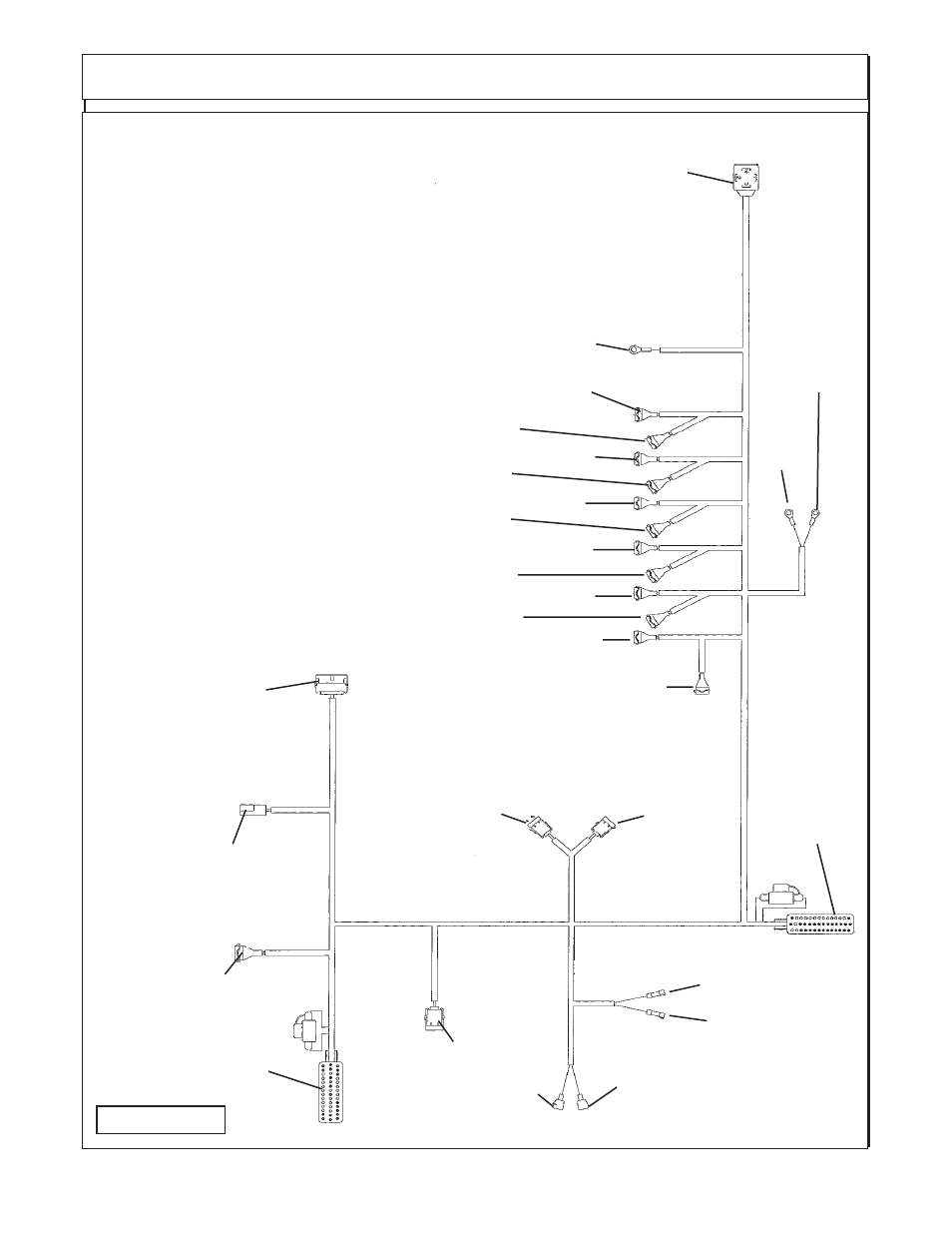

Exterior Wire Harness Schematic P/N 02981375A
FIGURE 27
