© 2005 Alamo Group Inc.

Section 8 - 3

Maverick (NH TS-100A,115A, 125A, 135A Asy. Man) 01/05

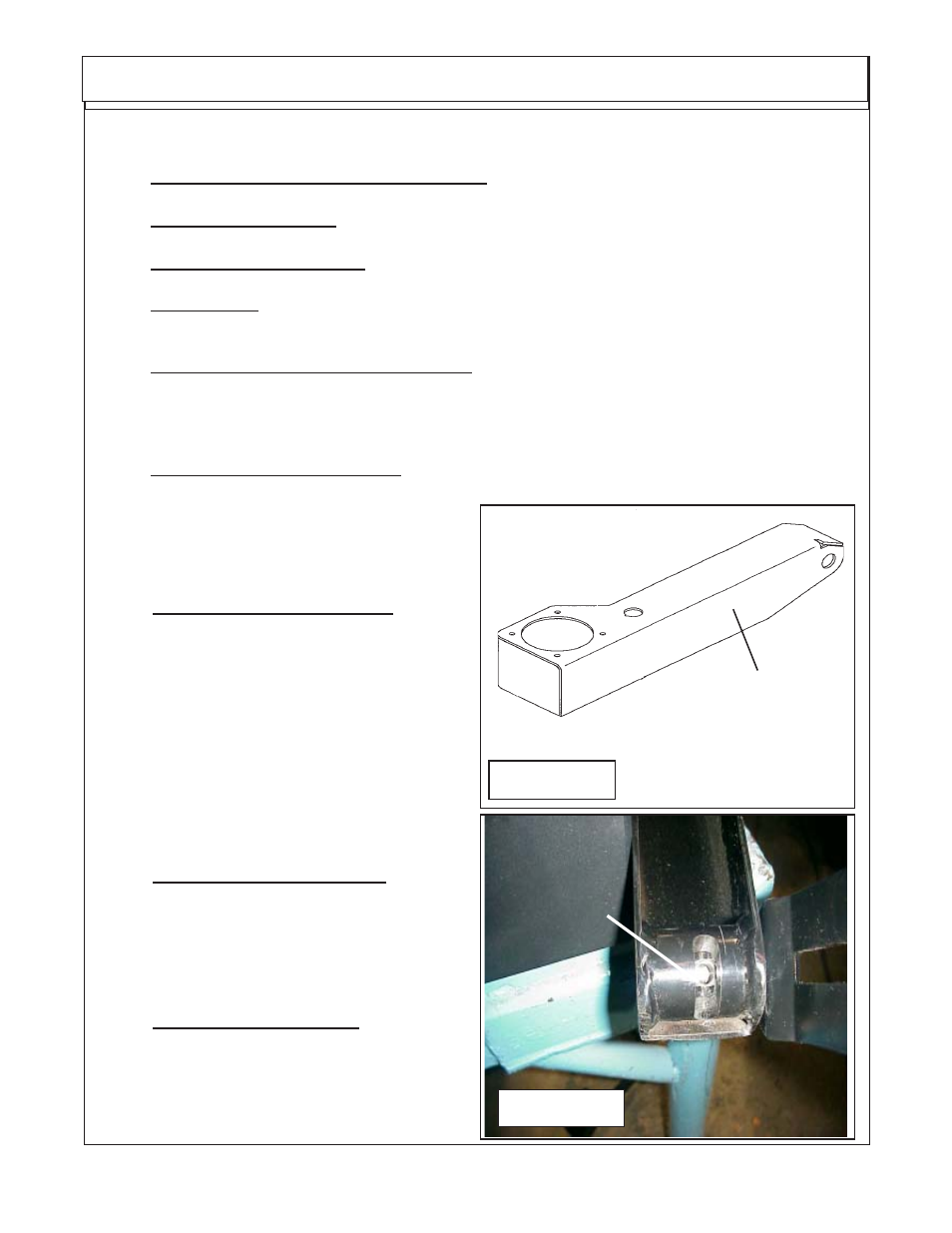

Arm Rest Weldment

P/N 02981415

FIGURE 5

Installing Seat Replacement Arm
Rest:

1.

Replace RH Factory Arm Rest. The fac-

tory seat RH arm rest will be replaced with a
weldment designed to serve as the armrest and
mount for the emergency stop switch and the
joystick assembly (See Figure 5, 6 & 7). Unbolt the
factory arm rest and bolt on the replacement arm
rest. The Arem rest is retained using the same type
method as thr factory arm rest, this is what allows
the arm rest to be raised up and down (See Figure
6) See the bottom of the welded replacement arm
rest. It may be required to use a die grinder in slotted
hole th help with alignment of retaining bolt. (See
Figure 6).

2.

Install Emergency Stop Switch. The emer-

gency Stop (E-Stop) Switch mounts into the arm
rest in the smaller of the two holes. The Knob and
mounting nut will need to be removed and the
switch installed from the bottom of the arm rest.
Replace mounting nut and knob (See Figure 5 , 7 &
8)

3.

Locate Joystick Assembly. The joystick

assembly has a flange around the bottom, it uses 4
screws to mount joystick to the arm rest. Lower the
wiring of joystick down through hole in arm rest.
Make certain the three plugs are in the hole and not
being pinched. (See Figure 9 & 12).

Locating Joystick and electrical components:

1.

Joystick Assembly with Resister Harness. The joystick has the resister wire harness

attached to it when you received the joystick.

2.

Emergency Stop Switch. The emergency Stop (E-Stop) Switch will be sent with the knob and

mounting nuts installed onto it. These will need to be removed when mounting switch.

3.

Replacement Seat Arm Rest. The Tractor seats Rh arm rest will be replaced with a fabricated

one to mount E-Stop Switch and Joystick.
4.

Wire Harness. The Wire harness is in two piece, The interior harness inside the cab and the

exterior harness connecting to the interior harness and running outside the cab to the pump and tank
area at the front of the tractor.
5.

Wire Harness through Floor of Tractor Cab. Some tractors may have a hole all ready through

the floor of the cab on the RH side. Lift Floor mat and check, if no hole (possible with rubber plug in it)
a hole will need to be cut with a hole saw. If cutting holes in floor of cab always check under side of floor
to make certain there are no components that will be hit and damaged by saw. DO NOT use a torch to
cut holes in cab floor.
6.

Access Panels of Tractor interior. Panels in the cab will need to be loosened and/or removed

to gain access to connections and/or mounting of components. Do not remove any panels until
instructed to do so.

Joystick / Electrical Mounting

FIGURE 6

Under Side of

Welded Arm

Rest with

Slotted Hole
