Exhaust / Muffler Relocation
Exhaust / Muffler
Relocation:
1. Remove The Exhaust . The Exhaust reloca-
tion kit will include a new mounting bracket, Bolting
hardware, replacement exhaust pipe from turbo to
muffler. The Muffler needs to be removed first (See
Figure 5). Remove the Exhaust pipe to turbo (See
Figure 5). Remove the tractors factory Exhaust pipe
mounting bracket (See Figure 6).
2. Install Exhaust Replacement Mounting
Bracket. The replacement exhaust mounting
bracket will bolt in the place of the factory mounting
bracket. The replacement bracket moves the ex-
haust inward towards the engine by about 5 to 6
inches. This is to give clearance of the boom and
exhaust system (See Figure 7).
3. Install Replacement Exhaust Pipe. Install
the replacement exhaust pipe using the new clamp
furnished in kit. Fasten the new exhaust pipe to the
new exhaust bracket using the two factory u-Bolts
that were used on the original exhaust pipe (See
Figure 8).
4. Reinstall the muffler to the exhaust pipe us-
ing the factory bolts and hardware. Check all the
bolts and components to the exhaust for tightness
and fit.

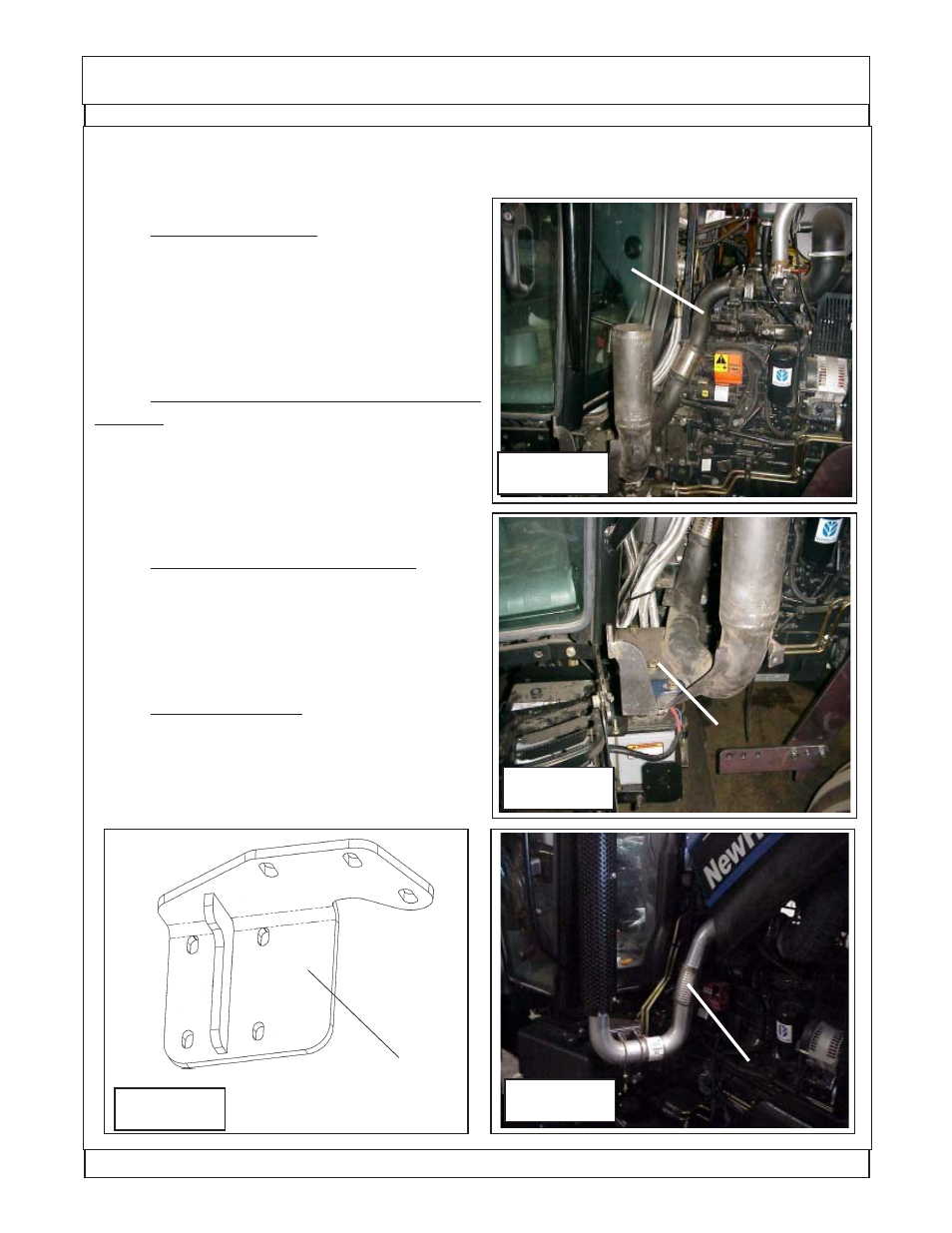

Figure 5
Tractor Factory
Exhaust pipe to
Turbo
Figure 6
Factory Exhaust
Mount Bracket
Figure 7
Figure 8
Replacement
Exhaust Bracket
P/N 02980933
New Exhaust Pipe
P/N 02980917
