1. CUTTING CIRCUIT SPECIFICATIONS
Hyd. Pump Speed (Front Aux Pump) ...................................1950 RPM
Hyd. Motor Speed.............................................................. 1220 RPM
Hyd. Motor Rated HP......................................................... 199 HP
Hyd. Motor Rotation
(as viewed f/ Top of the Deck) ................CW (Clockwise)
Relief Valve Setting At Motor............................................. 4000 PSI
Relief Valve Setting At Pump............................................ 4500 PSI
Hyd. Pump Flow
(Front Pump @ 1950 RPM) ........................25.3 GPM
Hyd. Oil Operating Temperature @ 100° F Ambient........ 155 - 165 ° F.
Hyd. Oil Filtration,
(Discharge f/ Charge Pump). .................... 10 Micron
Hyd. Tank Capacity........................................................... 17-1/2 Gal.
Hyd. Motor Start Stop Time (Approximate)....................... 6 Seconds
Cutting Diameter, (Rotary Head).......................................58 Inch
Spindle............................................................................... 4.5 “ by 9” Heat Treated Alloy
Blade Bar Type.................................................................. Stacked 3 Leaf
Blade Bar Size...................................................................1-1/4” Thick X 5" Wide (Ea. Leaf)
Blade Bar Material............................................................. T1 Steel
(bottom) & HRFB Steel (top & Middle)
Blade Swing.......................................................................360 Deg Swing
Blade Material.................................................................... High Carbon Alloy Steel
Cutter Weight. (Approximate w/ Rotary Head)..................950 lbs.
Cutter Deck Opening & Closing........................................ Hyd. Operated Door
Recommended Hydraulic Oil............................................ ISO AW Hyd. Oil (See decal below)
Fluid Cleanliness level....................................................... ISO 16/14/11

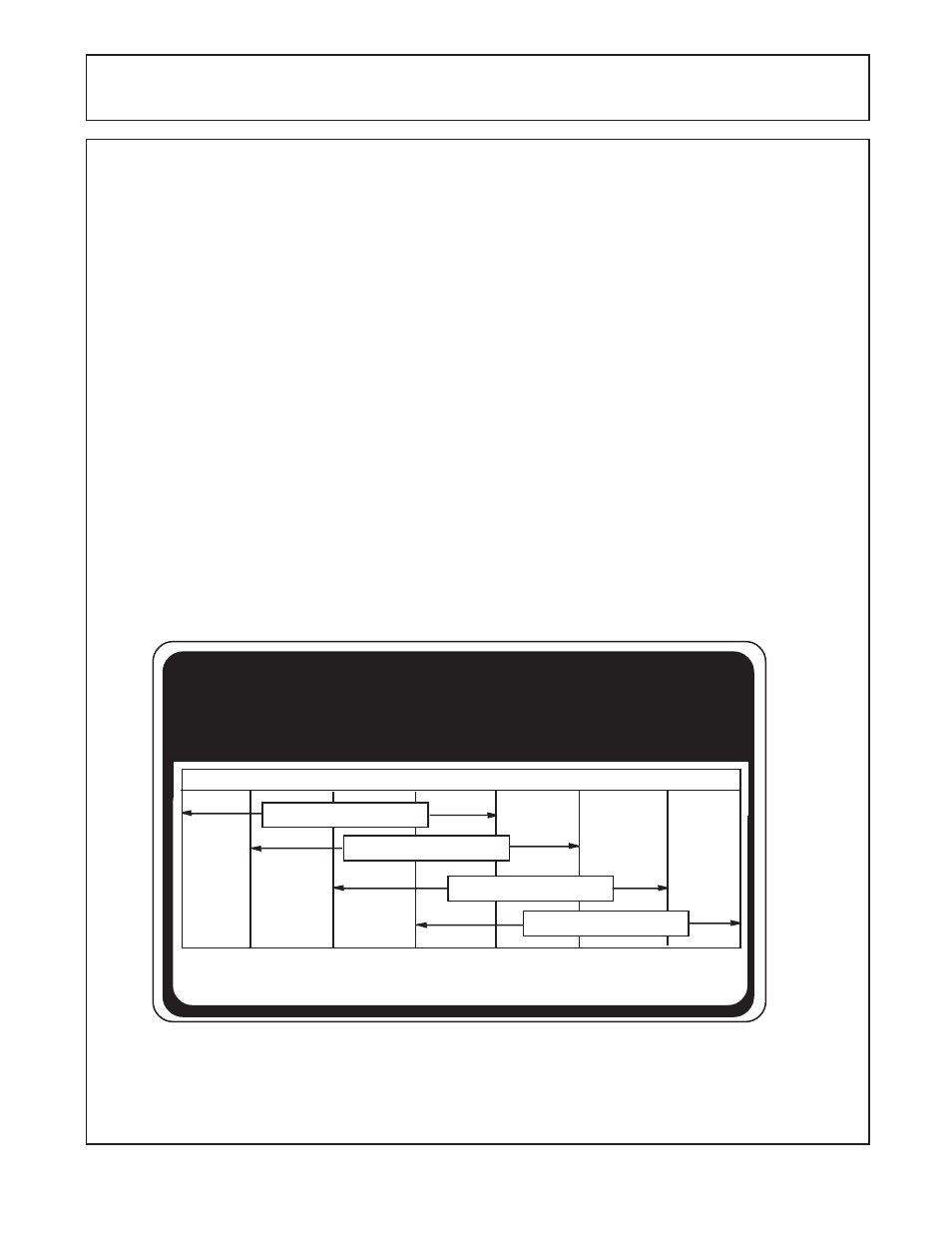

ATTENTION
20°F 10°F 30°F 40°F 60°F 70°F 90°F 110°F
AW ISO VG 32
AW ISO VG 46
AW ISO VG 68
AW ISO VG 100
The correct hydraulic fluid is dependent upon ambient
temperature. Refer to chart when selecting proper grade
02982828
SPECIFICATIONS - MAVERICK
