© 2005 Alamo Group Inc. Section 10 - 6
New Holland (NH TS-100A, 115A, 125A, 135A Asy. Man) 01/05
CONTROL VALVE - ELECTRONIC NETWORK

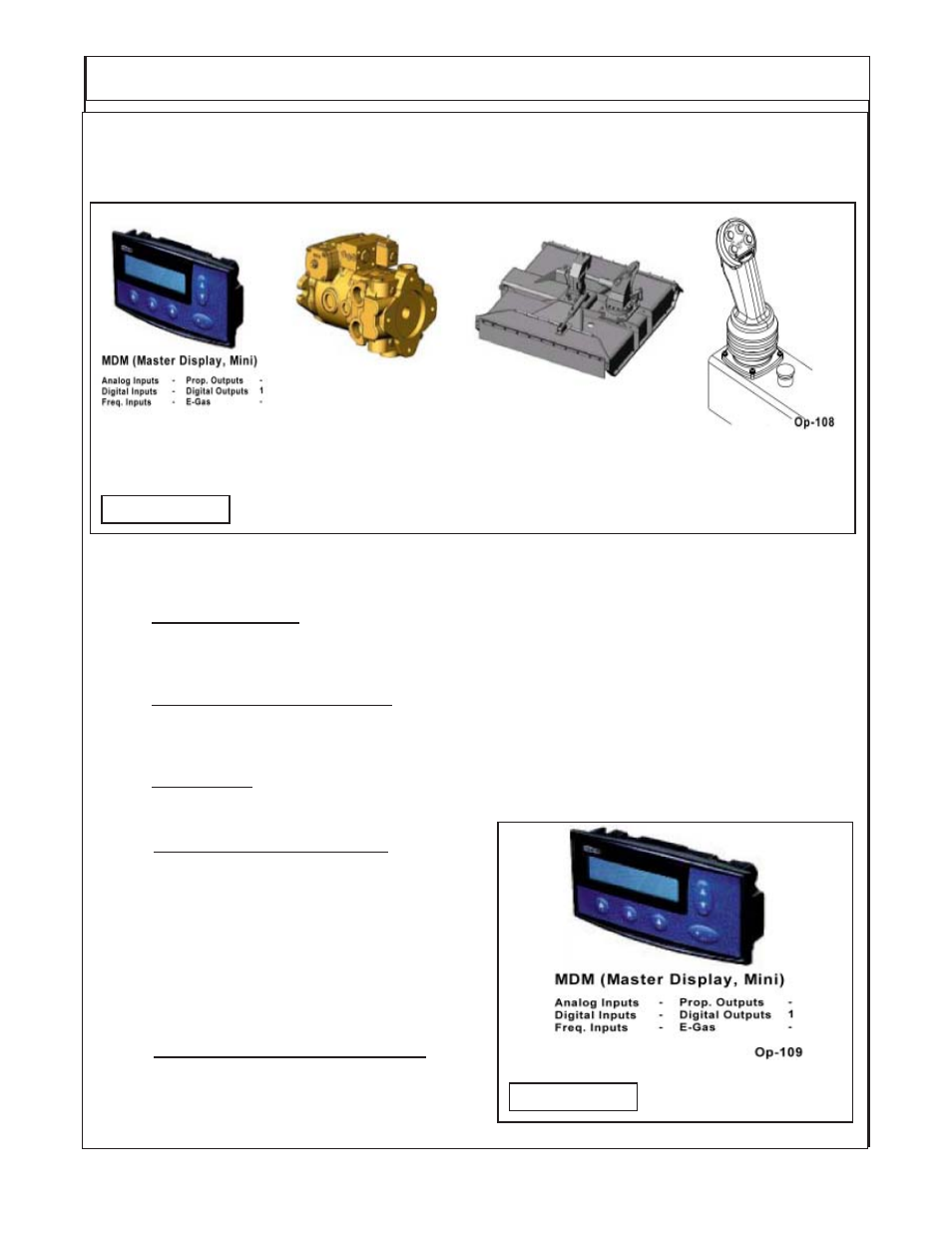

Maverick Mower Head Circuit : (continued from Previous page)
Item -D Item -C Item -B Item -A
FIGURE 7
Maverick Electronic Network
: (Figure 8)
Electronic Network. The electronic network is the control and communication network that
receives and transmits data to certain components in the boom control system. Its purpose, is to
manage the incoming and outgoing information.
There are five main components. The MDM is an operator Display that is located in the cab.
The purpose of the display is to house the programming software for the system control and
provide an interface between the operator and the Maverick Boom.
The interface is utilized through a multi-screen function that allows the operator to set
individual parameters for customized control functions.
The display also provides tools such as an
on board measurement device, useful for determin-
ing short circuits, component loss, and/or power
supply issues. REFERENCE PRODUCT MANUAL
FOR MDM DISPLAY. THIS MANUAL IS AVAIL-
ABLE FROM THE MANUFACTURER ON THE
INTERNET AT www.iqan.com viewable and print-
able with ADOBE ACROBAT READER. If you do
not have Adobe Acrobat Reader it can be ob-
tained at www.adobe.com.
Make certain to view the MDM section as this
is the type used on the maverick boom, there are
listings at the web site that will not apply to the
maverick boom.
FIGURE 8
