Disassembly
2. Electrical connection
DANGER!
Risk of electric shock!
• Before reaching into the device or the equipment, switch off the power supply and secure to prevent
reactivation!
• Observe applicable accident prevention and safety regulations for electrical equipment!
Circular plug-in connector:
→
Loosen the circular plug-in connector.
Cable gland:
→
Open the positioner: unscrewing the body casing in an anticlockwise direction.
→
Unscrew the screw terminals and pull out cables.
→
Close the positioner.
3. Mechanical connection
→
Loosen the fastening screws.
→
Remove the positioner upwards.
Pneumatic
connections
Positioner
Actuator
Fastening
screws (2x)
Pneumatic
connection to
the actuator
Actuator
Electrical
connection
circular plug-in
connector
Series 21xx Series 20xx

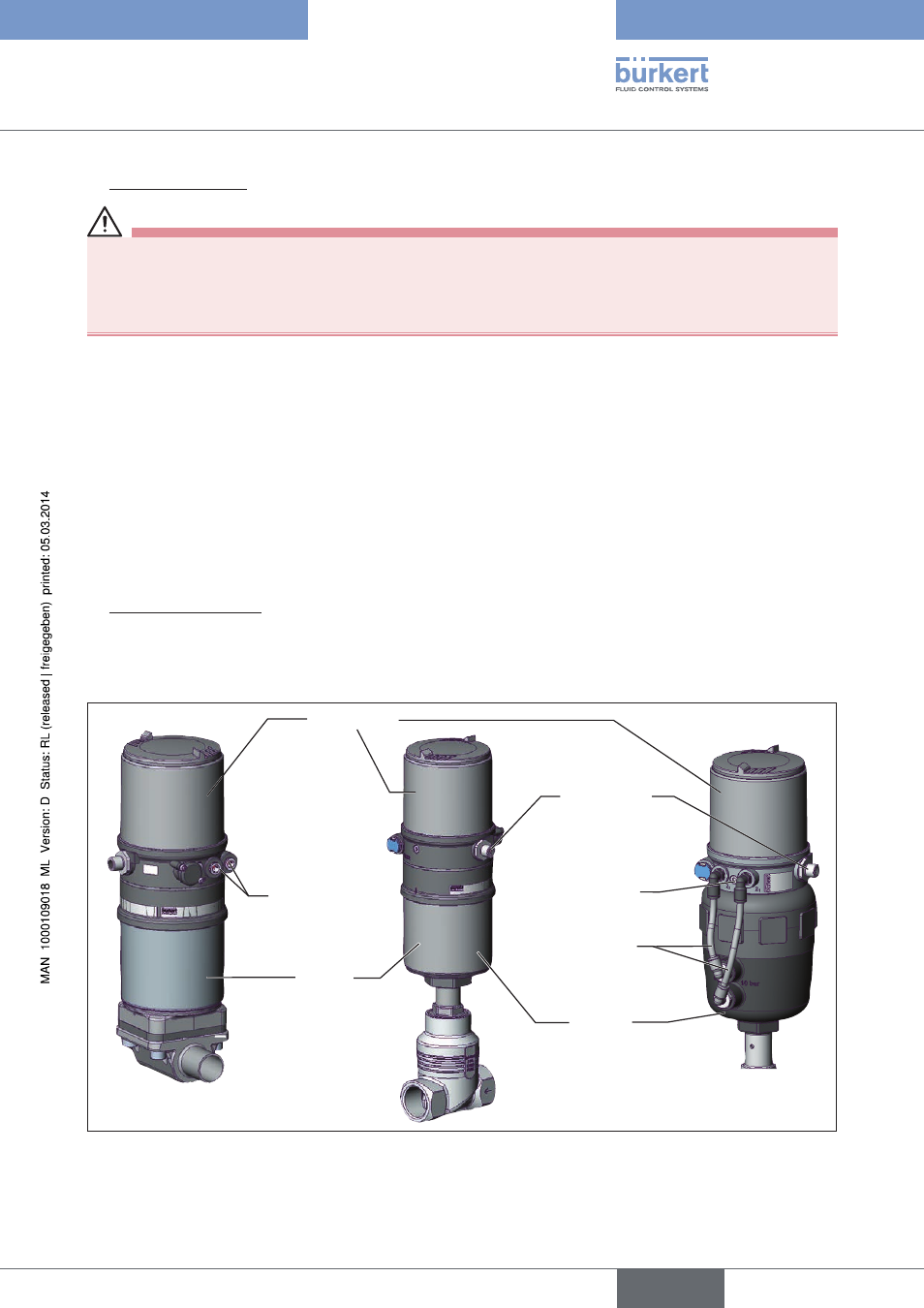

Figure 42: Disassembly the positioner
