7. CONTROL AND DISPLAY ELEMENTS
The following chapter describes the operating statuses as well as the control and display elements of the positioner.
Further information on the operation of the positioner can be found in the chapter entitled “12. Start-up”.
7.1. Operating status
AUTOMATIC (AUTO)
Normal controller mode is implemented and monitored in AUTOMATIC operating status.
→ LED 1 flashes green.
MANUAL
In MANUAL operating status the valve can be opened and closed manually via the keys.
→ LED 1 flashes red / green alternately.
DIP switch 4 can be used to switch between the two operating statuses AUTOMATIC and MANUAL.
ON DIP
1 2 3 4
7.2. Control and display elements of the positioner
DIP Switches
Key 2
Key 1
LED 2 LED 1
Communications
interface
Version 1 Version 2
1 2 3 4
ON DIP
Key 1
Key 2
LED 1
LED 2
Communications
interface

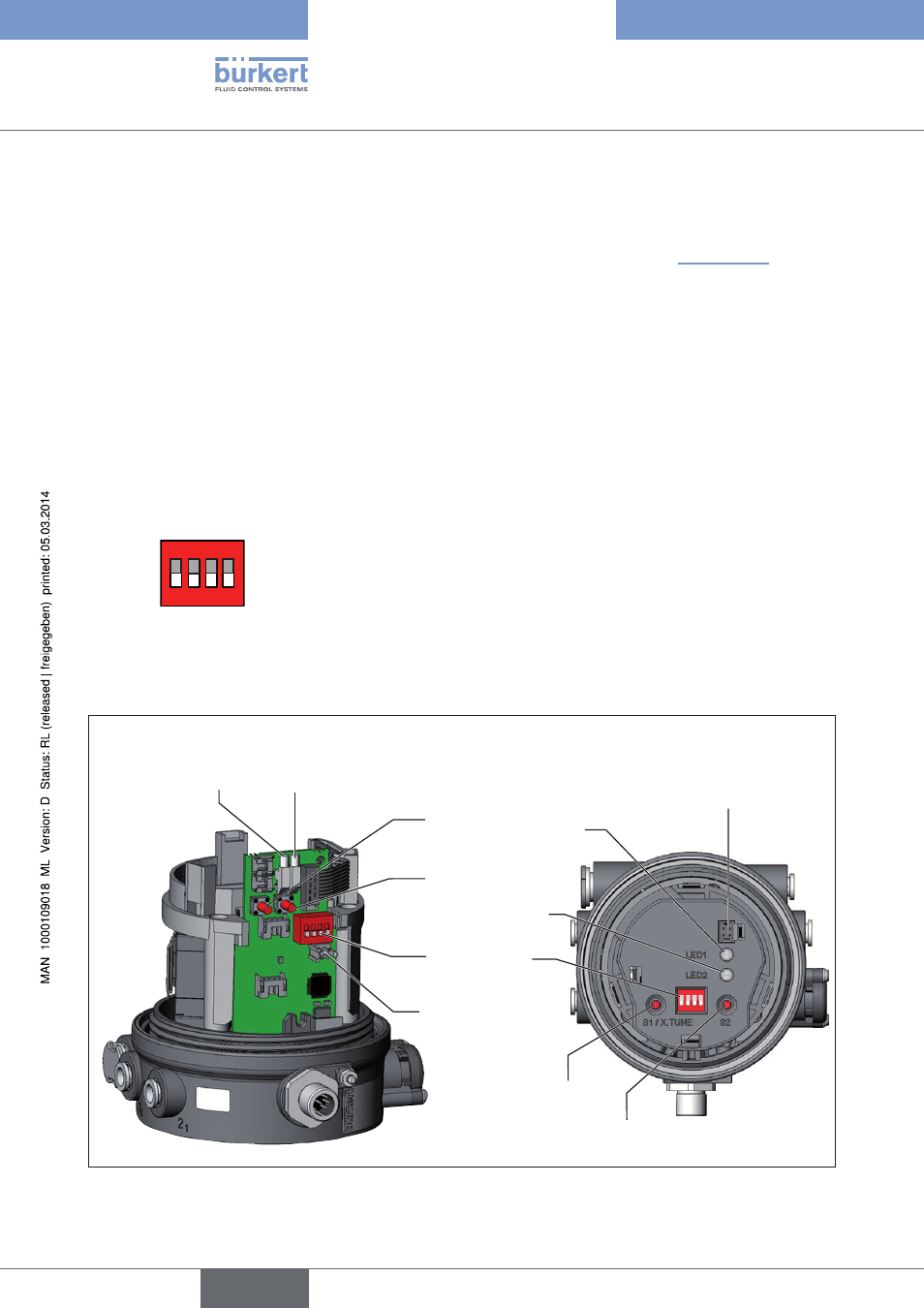

Figure 8: Description of control elements
