26
Controlanddisplayelements
7.3. Configuration of the keys
The configuration of the 2 keys varies depending on the operating status (AUTOMATIC / MANUAL).
The description of the operating statuses (AUTOMATIC / MANUAL) can be found in the chapter entitled “7.1.
Operating status”.
Key 2
Key 1
Key 1 Key 2
Version 1 Version 2

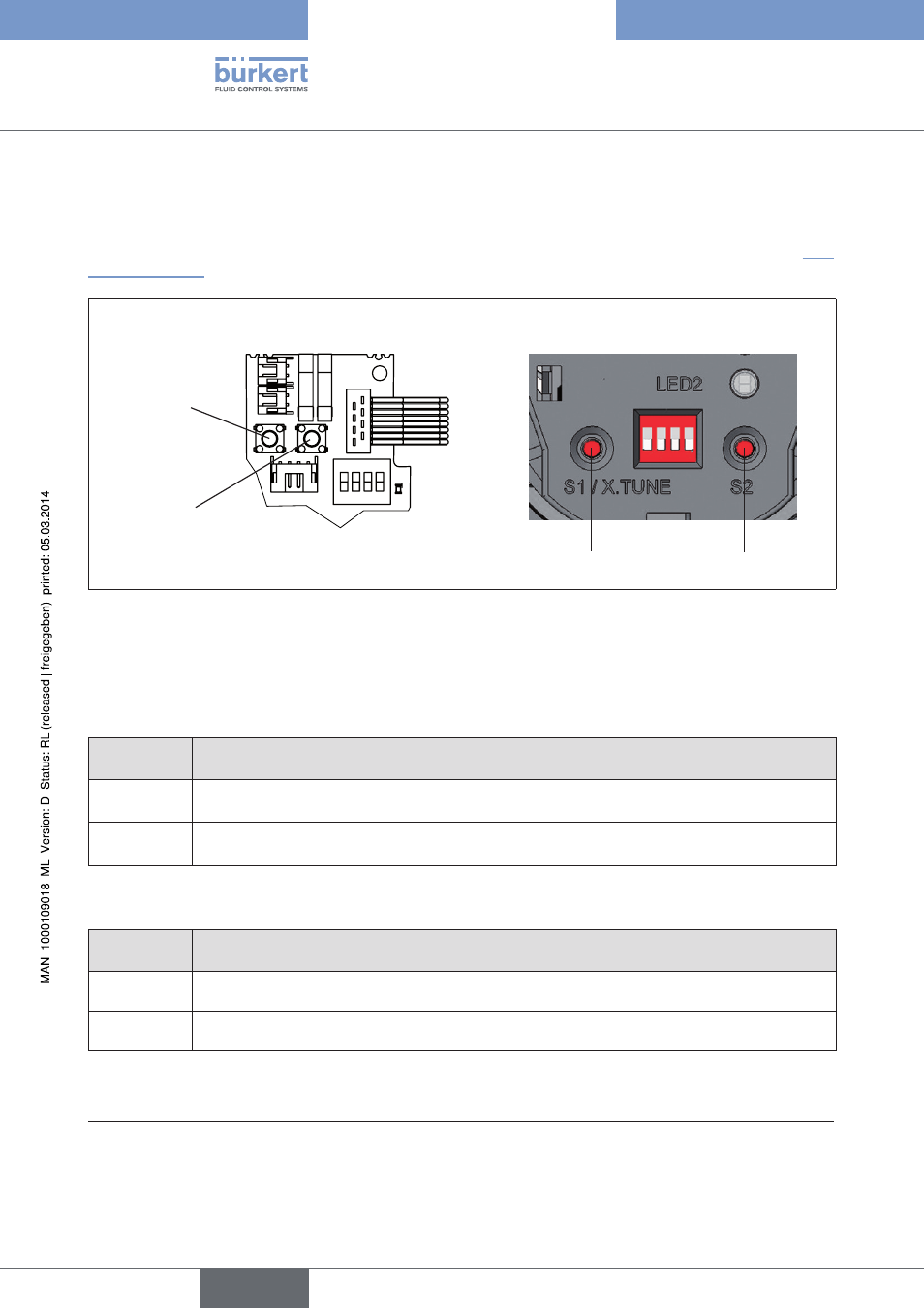

Figure 10: Description of the buttons
→
To operate the buttons, for
Version 1:
unscrew the body casing
Version 2: unscrew the transparent cap
MANUAL operating status (DIP switch 4 set to ON):
Key Function
1
Aerate 7)
(manually open / close the actuator) 8)
2
Deaerate 7)
(manually open / close the actuator) 8)
Table 6: Configuration of the keys for MANUAL operating status
AUTOMATIC operating status (DIP switch 4 set to OFF):
Key Function
1 Press for 5 seconds to start the X.TUNE function
2 -
Table 7: Configuration of the keys for AUTOMATIC operating status
7)
No function if the binary input was activated with the “Manual/Auto change-over” via the communications
software
8)
Depending on the operating principle of the actuator.
English
Type 8694
