Franklin Fueling Systems T5 Series Fuel Management System Programming Guide - Manual (Page 12)

8

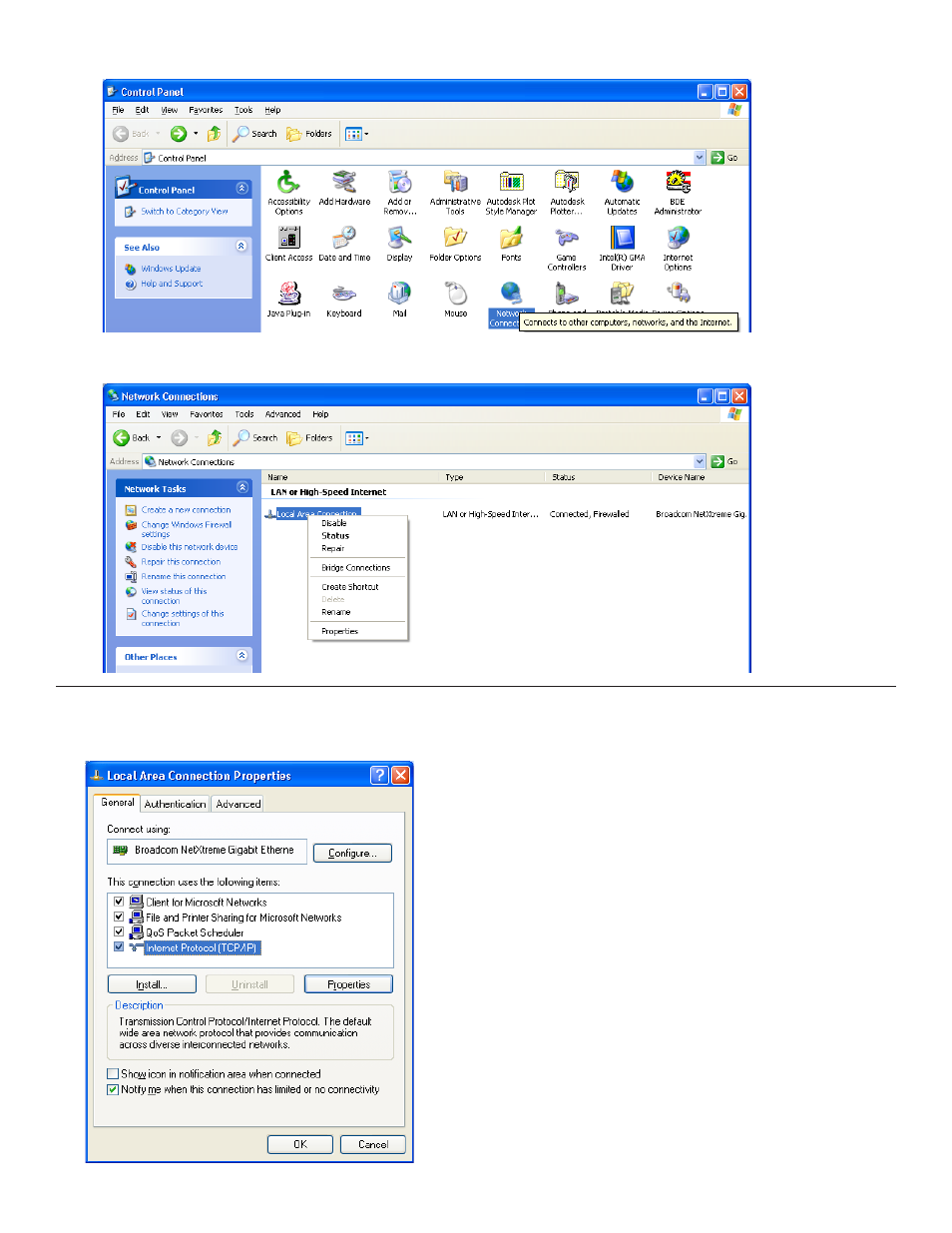

• In Classic View, click on Network Connections.
4. Right-click on Local Area Connection and select Properties.
5. In the Local Area Connection Properties dialog box,
under “This connection uses the following items,” select
Internet Protocol (TCP / IP) and click Properties.
There are many ways to configure a computer to
communicate with a T5 series console. These factors are
dependent on the user’s computer knowledge and how the
computer is currently configured.
To determine which method is best for your site, read the
instructions in the following section carefully. Make detailed
notes on the current configuration of the TCP / IP settings on
the PC you are using. Read both the “Obtain an IP address
automatically” and the “Use the following IP address”
methods before making a choice between the two.
