Software-based Confi guration and Control, cont’d
MLC 226 IP Series • Software-based Confi guration and Control 4-26
PRELIMINAR
Y
Control
• User Mode — The fi rst of the Control Web pages is User Mode, which is a
representation of the controller’s front panel buttons, volume control, and any
optional control modules (IRCMs, RCMs, ACMs) that are part of the system.
Clicking on a button on screen emulates a button press on the corresponding
device. This page is accessible to both administrators and users.
From the factory, the MLC 226 IP comes with a preloaded Web page with a basic
representation of the MLC 226’s front panel controls and the buttons of any
optional attached control modules. See the example below.

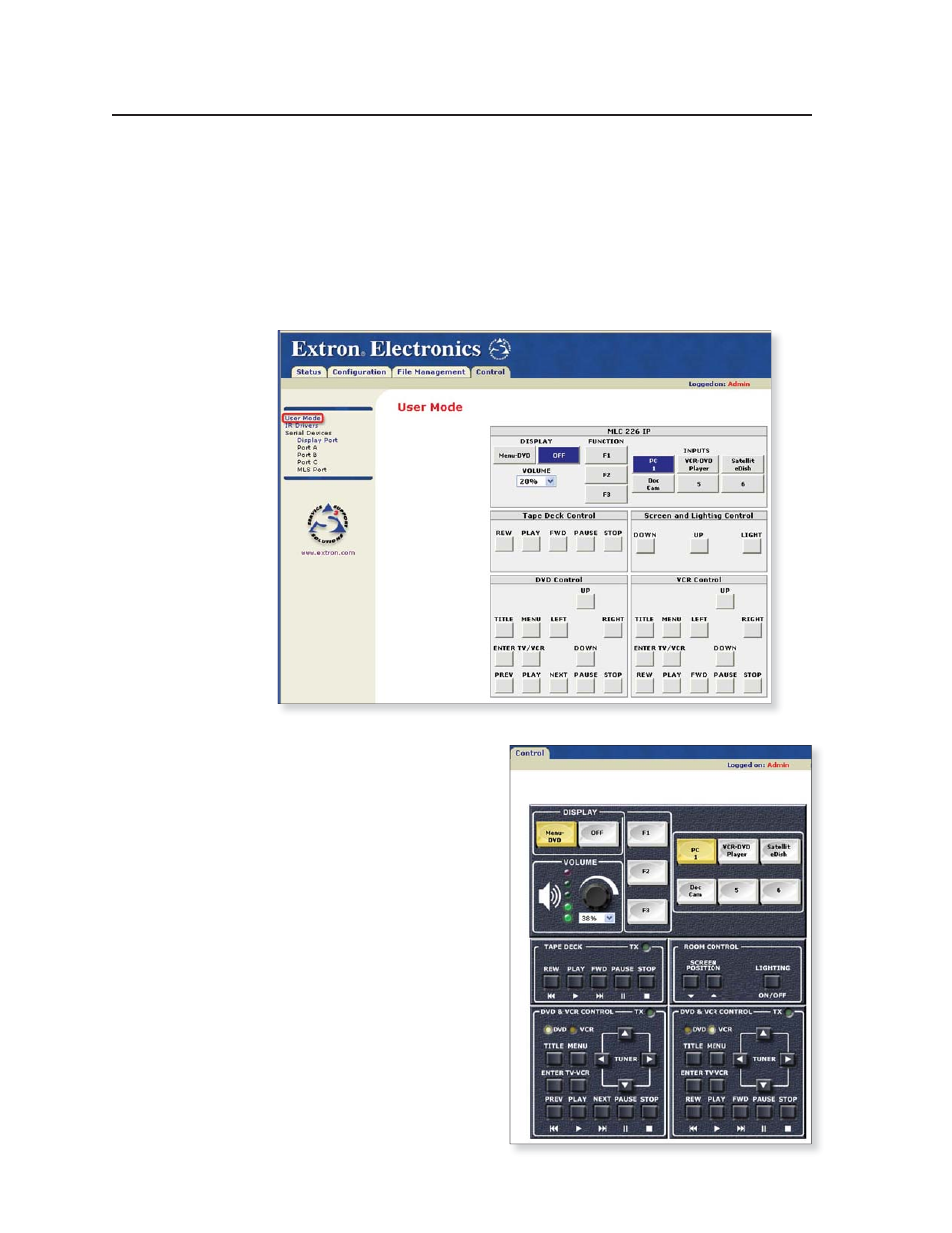

Typical User Mode page
Web pages that show a more
lifelike representation of the
MLC’s front panel and of control
modules (as shown at right) are
included with the confi guration
software. These pages (over 200
fi les) can be uploaded into the
MLC if you select Upload
Enhanced Web Pages from the
Advanced Configuration page
in Global Confi gurator before
you build the confi guration and
load it into the MLC.
Enhanced User Mode page
