Software-based Confi guration and Control, cont’d
MLC 226 IP Series • Software-based Confi guration and Control
4-8
PRELIMINAR
Y
2.

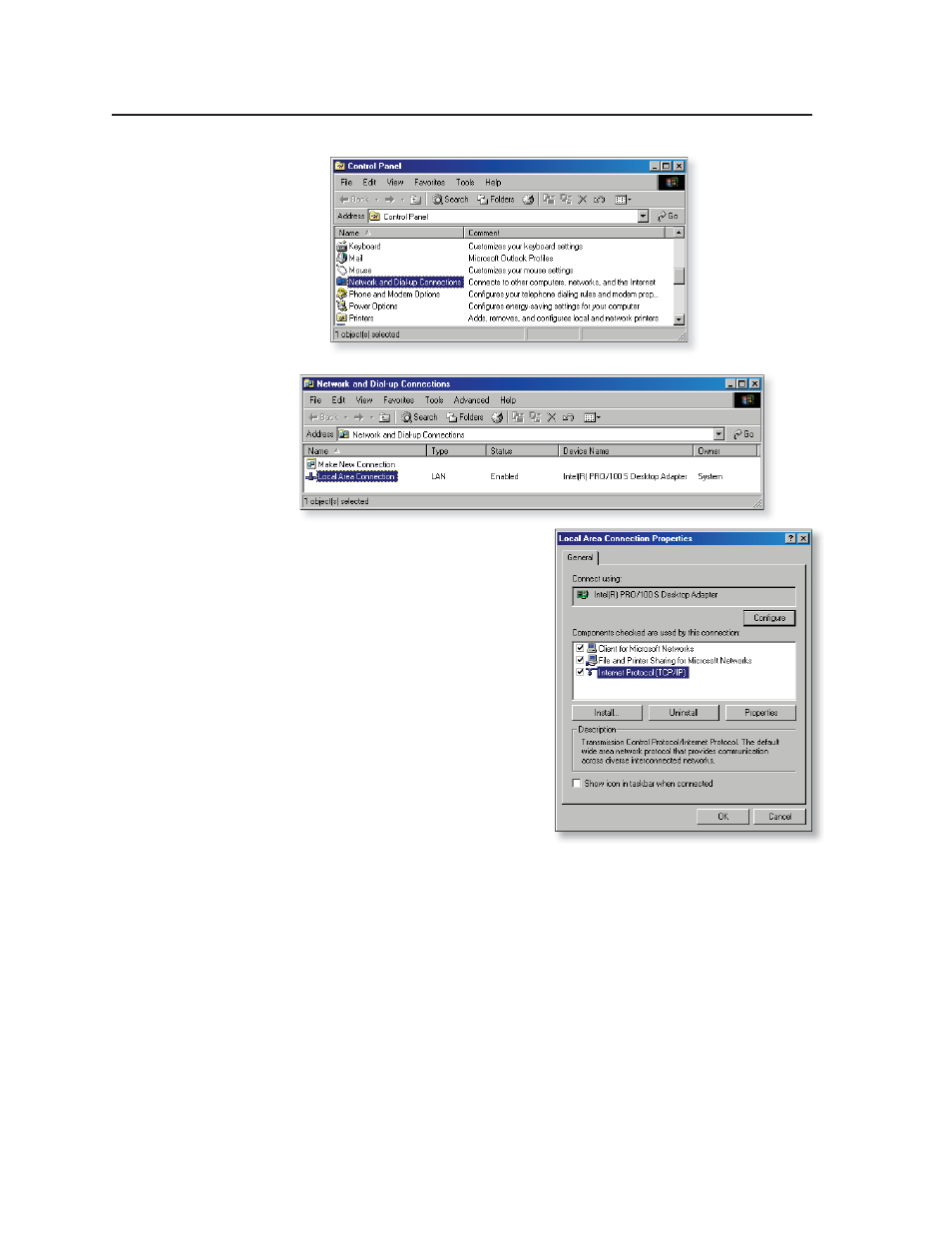

Right-click on Local Area Connection, then select Properties.
3.
Select Internet Protocol (TCP/IP)
and click on the Properties button.
If Internet Protocol (TCP/IP) is not
on the list, it must be added
(installed). Refer to the Windows
user’s manual or the Windows
online help system for information
on how to install the TCP/IP
protocol.
4.
Write down the PC’s current IP
address and subnet mask below.
If your PC is set to “Obtain an IP
address automatically,” make a note
of that, instead. You will need to
restore these settings to the PC later.
IP address:
. . .
.
Subnet mask:
. . . .
5.
Change the PC’s IP address so it can communicate with the MLC 226 IP and
change the controller’s IP settings.
a.
Select the “Use the following IP address:” radio button.
b.
Enter the following values, as shown in the following picture:
IP
address:
192.168.254.253
Subnet mask:
255.255.0.0
Default gateway:
blank or 0.0.0.0
