Special Applications, cont’d
MLC 226 IP Series • Special Applications 6-4
PRELIMINAR
Y
e. Click the green arrow adjacent to the Press area or drag the command to
the Press area.
f. For Toggle, click 2 to associate the AV Mute Off command with the
second button press.
7. If desired, confi gure the button’s lights.
a. In the Button Operations area, click the Light Control tab.
b. Click on the desired button light setting, a combination of color and
action (nonblinking, slowly blinking, fast blinking).
c. Click the green arrow adjacent to the Release area.
d. For Toggle, click 1 to associate that button lighting setting with the fi rst
button release.
e. Repeat steps 7b and 7c to select a button light setting for the second
button release.
f. Click on the newly added button lighting command in the Press area.
g. Click Toggle 2.

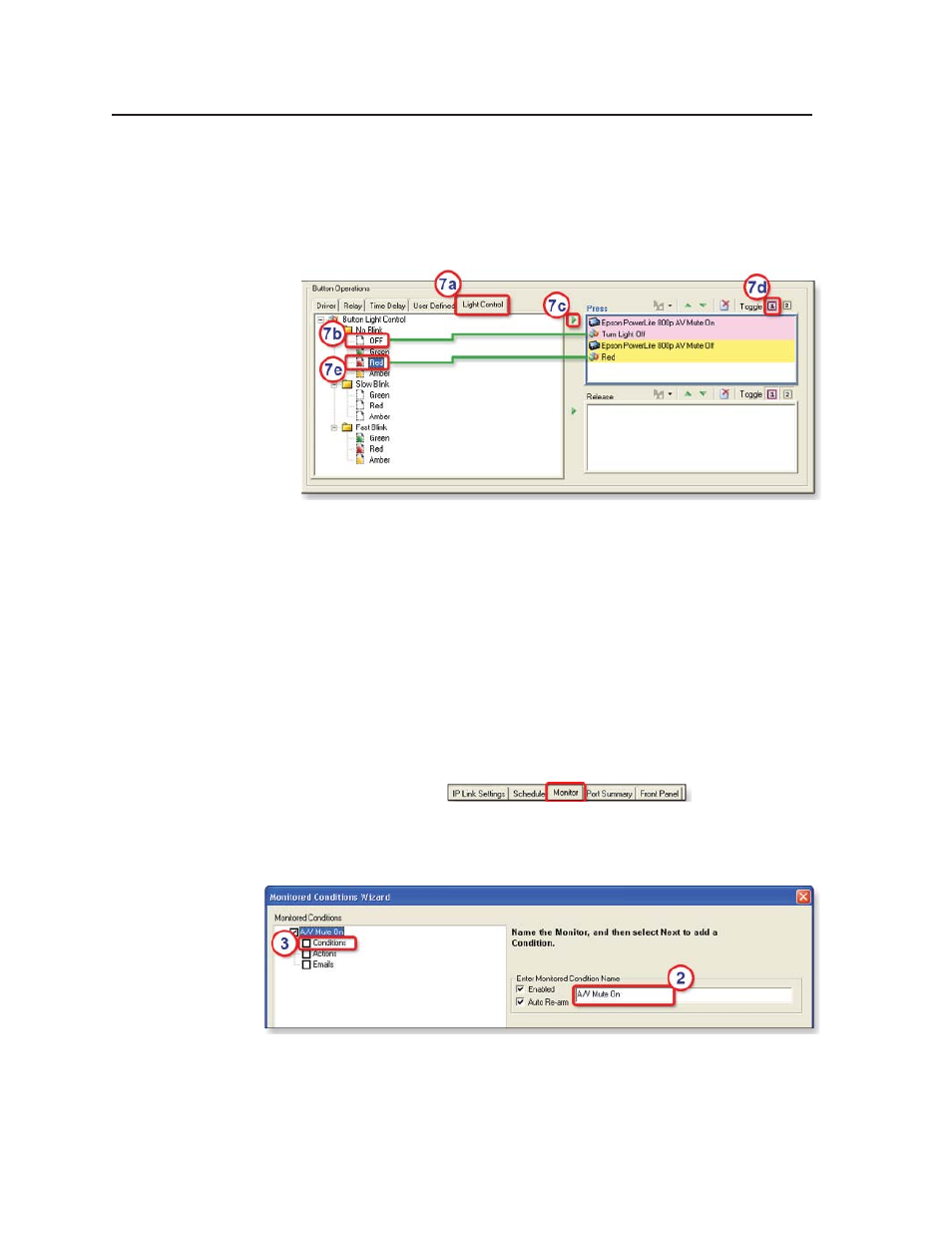

Setting up monitoring conditions
1. Click the Monitor tab ( ), then click
Add Monitor (near the bottom of the GC window). The Monitor Conditions
Wizard window appears.
2. Type in the name of the fi rst monitored condition: A/V Mute On, as shown in
the following illustration.
3. Select Conditions in the Monitored Conditions area.
4. Click on the name of the projector in the Subject Port area (Epson
PowerLite 800p, in this example).
