6-13 MLC 226 IP Series • Special Applications
PRELIMINAR
Y
12. If desired, type in text for the onscreen button label and the tool tip.
13. In the Button Mode list box, select Toggle.

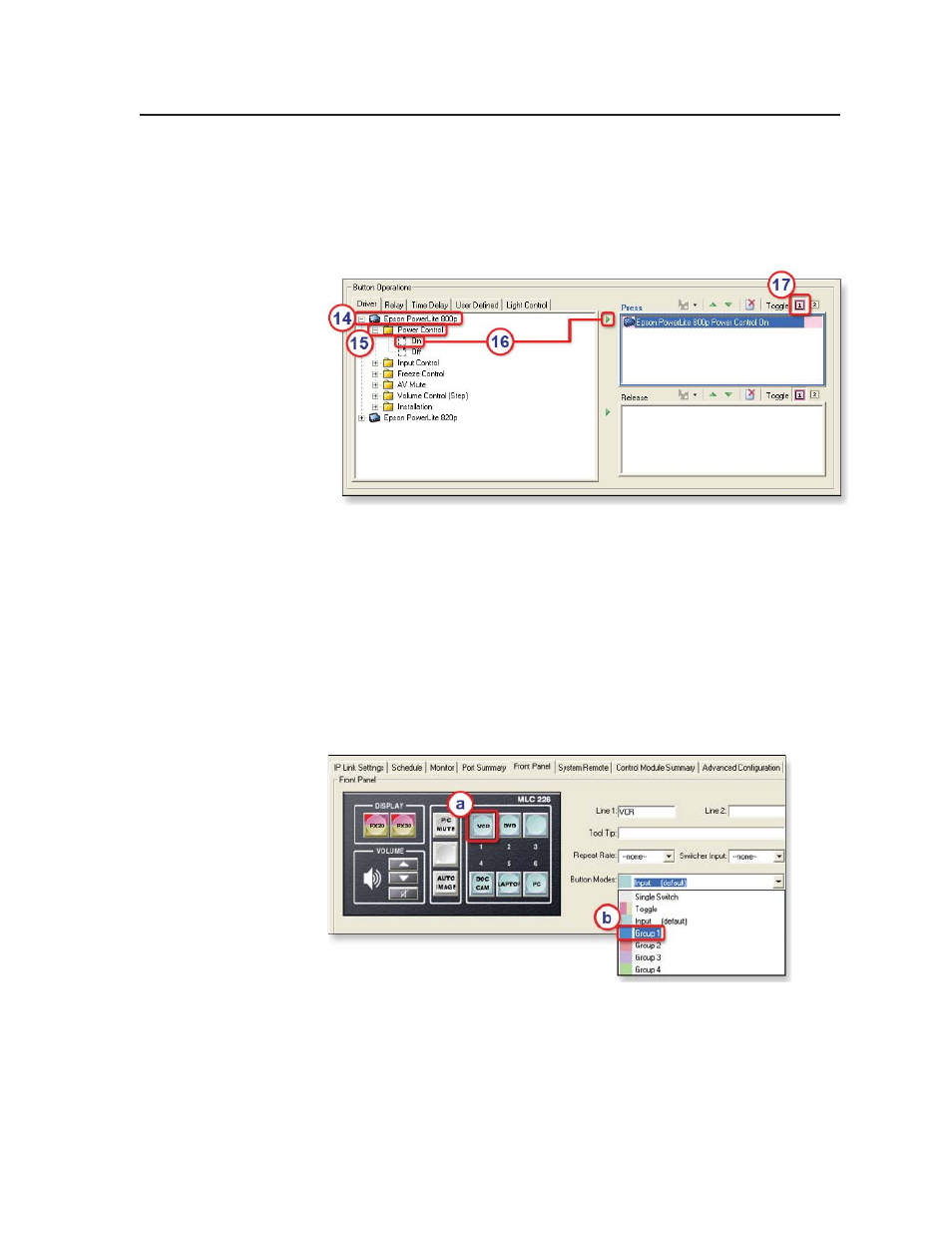

14. In the Driver tab within the Button Operations area, double-click on the
projector (Epson PowerLite 800p in this example) to control with the
Display On button.
15. Double-click the Power Control folder.
16. Select On and click the green arrow next to the Press area.
17. Click on the command in the Press area, and click 1 to select the fi rst toggle.
18. Select Off and click the green arrow next to the Press area.
19. Click on the command in the Press area and click 2 to select the second toggle.
20. Click the Display Off button.
21. Repeat steps 12 through 19, using the second projector (Epson PowerLite 820p
in this example).
22. Confi gure the MLC’s input buttons into two groups: one controlling inputs to
projector 1, the other controlling inputs to projector 2.
a. Click input button 1.
b. In the Input Modes list box, select Group 1.
c. Repeat steps 22a and 22b for input buttons 2 and 3.
d. Click input button 4.
e. In the Input Modes list box, select Group 2.
