6-9 MLC 226 IP Series • Special Applications
PRELIMINAR
Y
6. If desired, type in text for the onscreen button label, the tool tip (text that
appears when the mouse pointer hovers over that button in GlobalViewer),
and assign an input to the button.
7. In the Button Mode list box, select Toggle. This sets the button for toggle
mode, which allows you to confi gure the button for two sets of presses and
releases instead of the default of one press and release.
8. In the Button Operations area’s Driver tab, double-click the name of the DVD-
VCR player. A list of available driver functions is displayed below the driver
name.

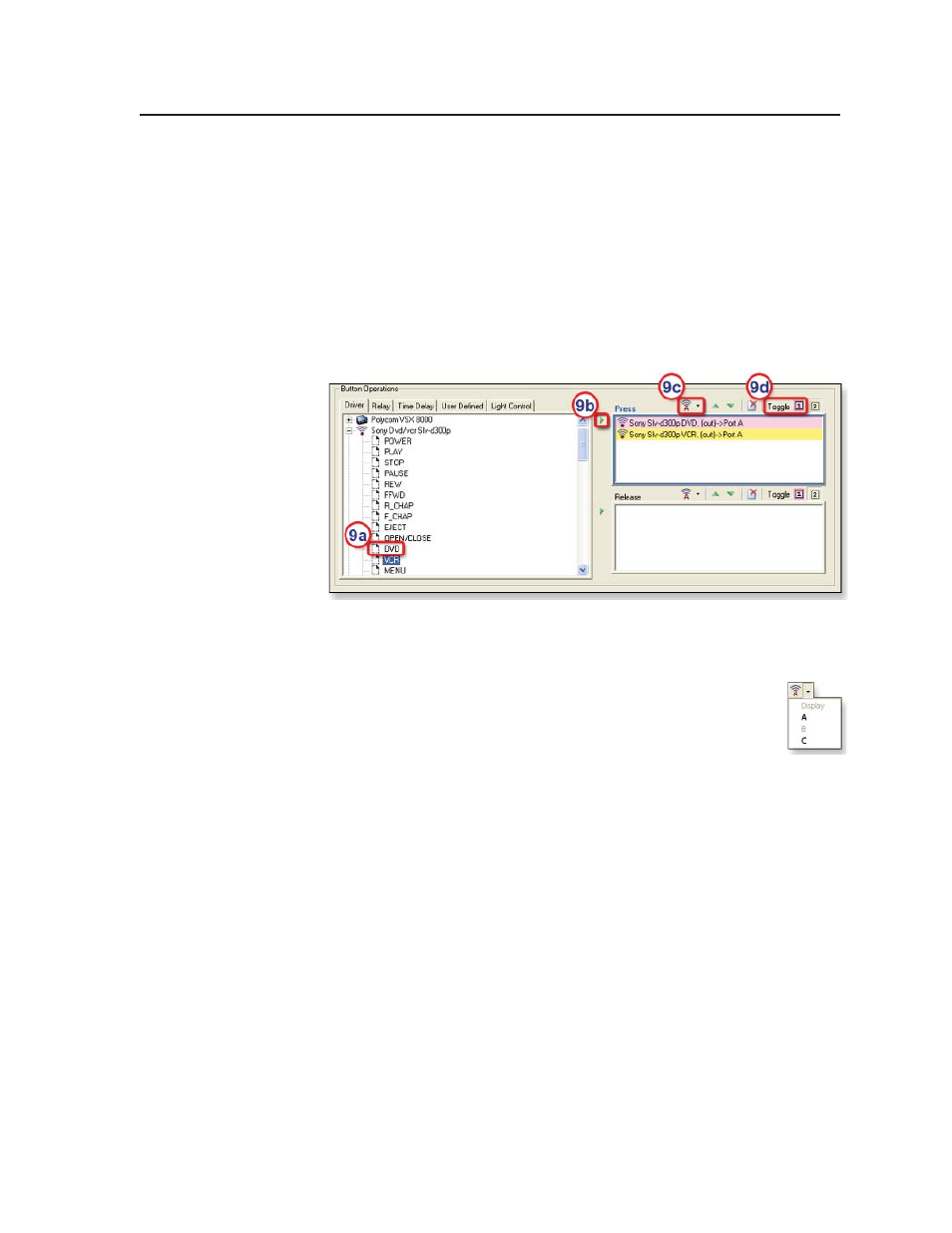

9. Set the actions for the DVD part of the player.
a. Click DVD.
b. Click the green arrow adjacent to the Press area or drag the DVD
command to the Press area
c. Click the Port Select button and choose the IR output port
that will send commands to the DVD-VCR player, as shown at
right.
d. For Toggle, click 1 to indicate which press (the fi rst) to associate
the DVD command with. In the example shown above, the DVD is
associated with button press 1, the VCR is associated with button press 2.
10. Set the actions for the VCR part of the player using the procedure outlined in
step 9 but selecting VCR and toggle 2.
11. Click the name of any other IR command that should be sent to the DVD/
VCR player and assign it to the desired press or release.
