Status, System status, Preliminar y – Extron Electronics MLC 226 IP Series Installation User Manual
Page 64: Software-based confi guration and control, cont’d
Software-based Confi guration and Control, cont’d
MLC 226 IP Series • Software-based Confi guration and Control
4-20
PRELIMINAR
Y
Status
These Web pages provide only settings information. Changes must be made
via the Configuration Web page or via the Global Confi gurator software or SIS
programming. Personnel who have user access can view these pages but do not
have access to confi guration pages.
System Status

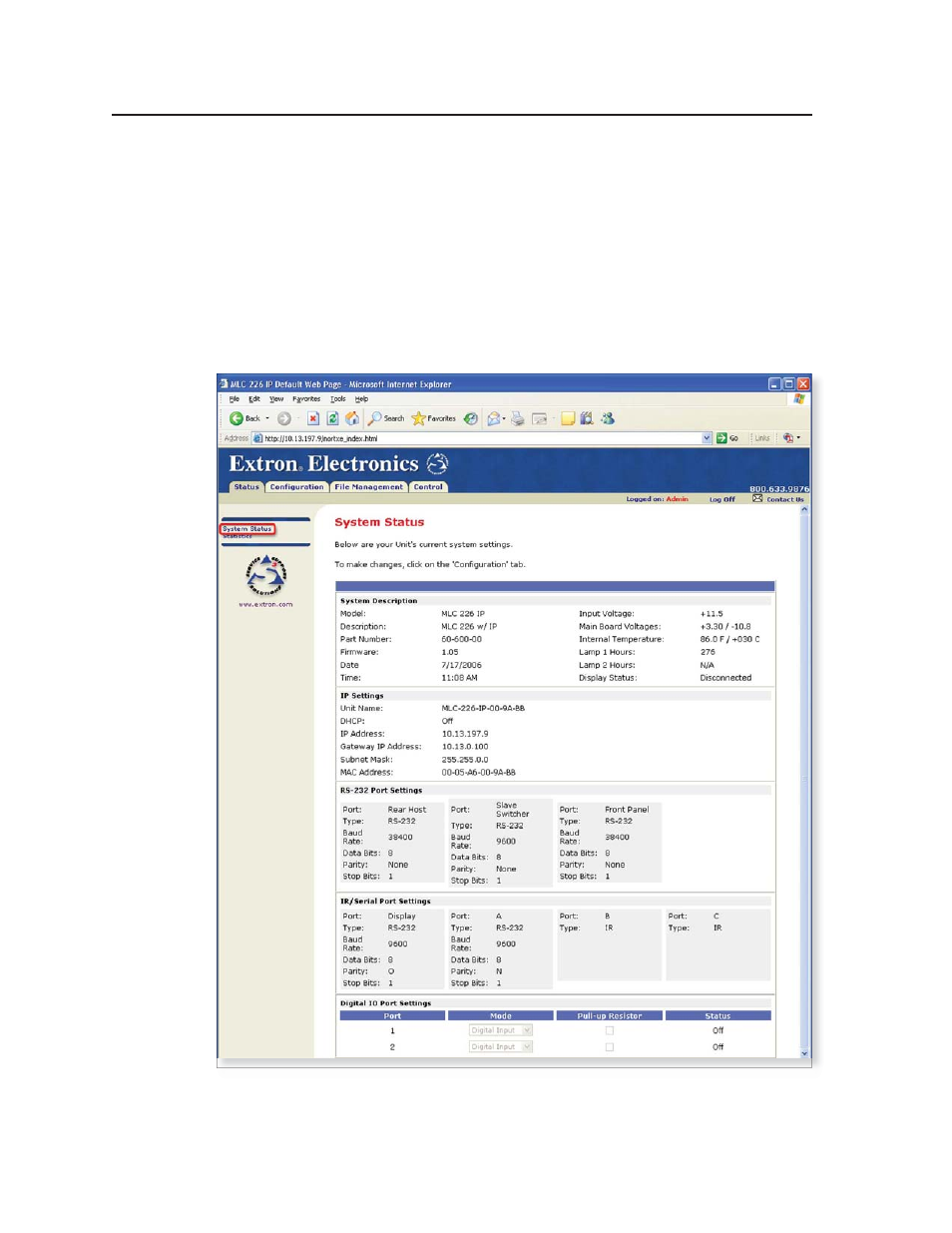

The System Status page provides information about the MLC’s model, part
number, fi rmware level, voltages and internal temperatures, port and IP settings,
and the status of projector lamp hours and the display connection, as shown in the
following example. This information is useful when troubleshooting problems.
N Projector lamp hours are a refl ection of time elapsed since the lamp was changed
as determined by the driver/events associated with the MLC’s Display RS-232/
IR port.
