MLC 226 IP Series • Special Applications
PRELIMINAR
Y
5.

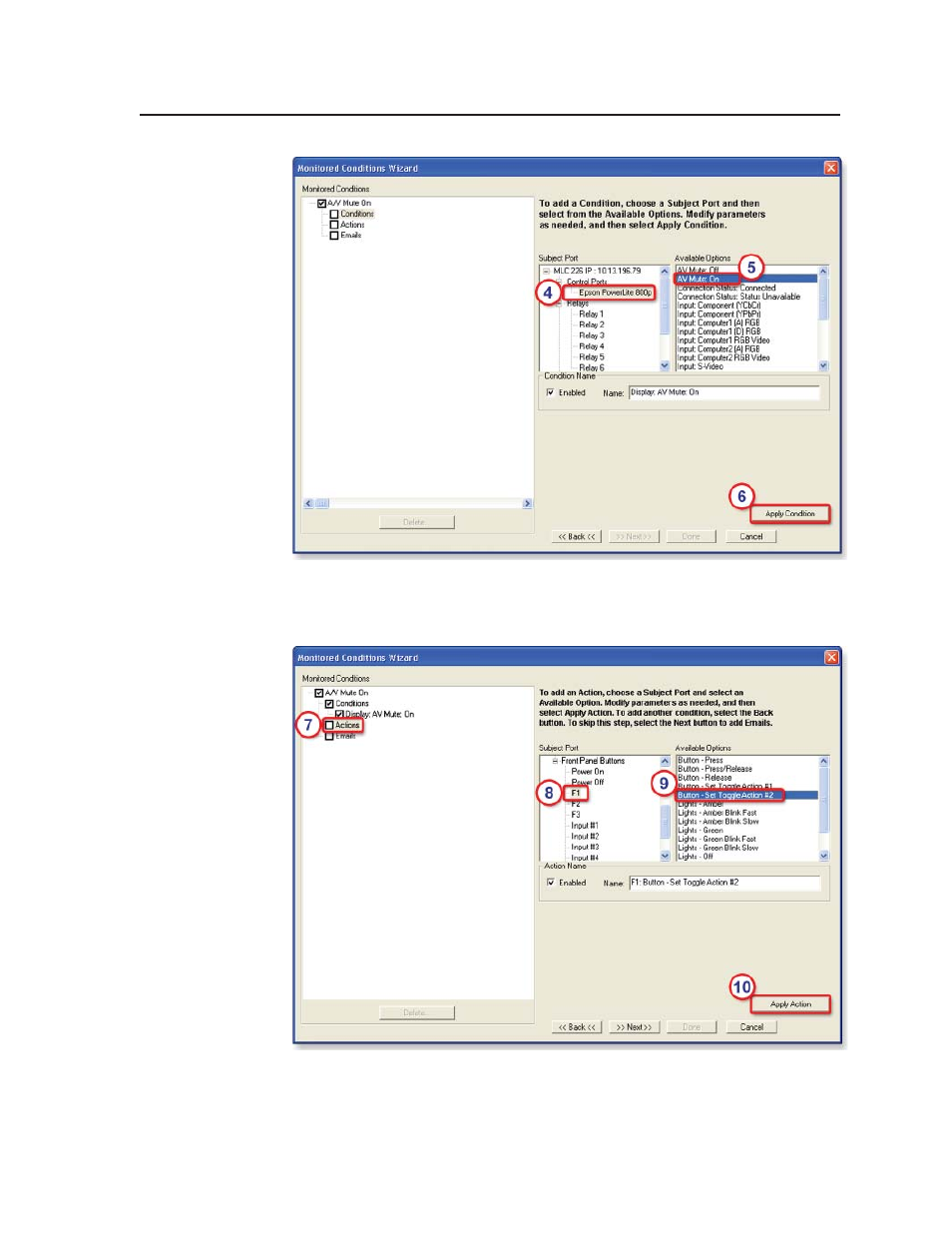

Click the AV Mute: On command in the Available Options area.
6.
Click the Apply Condition button.
7.
Click Actions in the Monitored Conditions area.
8.
Scroll through the Subject Port area and click on F1 in the Front Panel Buttons
section.
9.
Click Button - Set Toggle Action #2 in the Available Options area. This sets
the state of the F1 button so that the next press of F1 triggers the operations on
toggle action #2.
