Preliminar y, Operation, cont’d – Extron Electronics MLC 226 IP Series Installation User Manual
Page 38
Operation, cont’d
MLC 226 IP Series • Operation
3-8
PRELIMINAR
Y
Using the Web pages
1.
Using a Web browser, enter the MLC’s IP address and open the MLC’s
embedded Web page. If an administrator password has been set and if you
are prompted to do so, type in the administrator password.
2.

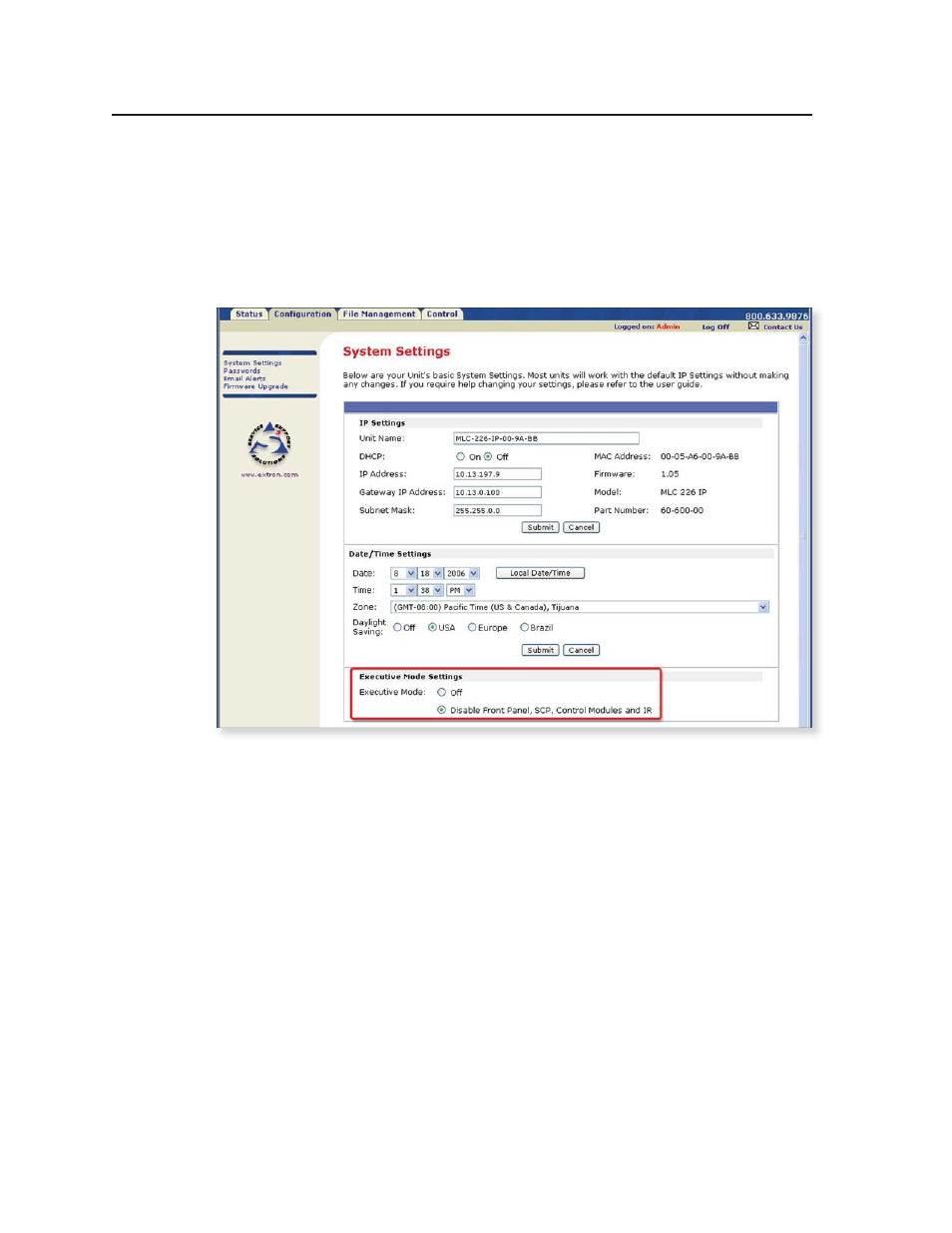

Click on the Configuration tab, which opens to the System Settings page.
3.
Select either Off or Disable Front Panel, SCP, Control Modules and IR in the
Executive Mode settings area. See the following picture.
N If
Disable Front Panel, SCP, Control Modules and IR is selected via the
System Settings factory default Web page, front panel lockout can’t be enabled/
disabled via the front panel unless PIN Mode is enabled. See pages 5-39 to 5-40
to fi nd the SIS commands for PIN enabling/disabling.
