6-7 MLC 226 IP Series • Special Applications
PRELIMINAR
Y
29. Complete the rest of the confi guration as described in the MLC 226 IP Series
Setup Guide and in chapter 4 of this manual, then save the project and build
and upload the confi guration to the MLC.
Working With Combination Source Devices
Many combination DVD-VCR players can output the video signals from both the
video tape and the DVD parts on a single port. If you connect this single output
to one input on a switcher (or projector), the switcher has no way to automatically
know whether it receives input from the DVD or from the VCR; the switcher treats
it as one input device and does not switch between the two.
Available methods
There are several ways to work around the single-input limitation to make both the
DVD and VCR media accessible to the switcher, including the following methods:
• Using separate source output ports on the DVD-VCR player
• Using a distribution amplifi er with the switcher
• Using separate IRCM control modules for DVD-VCR control
• Using an IRCM-DV+ control module for DVD-VCR control
Using an IRCM-DV+ control module and one MLC input button
for DVD-VCR control

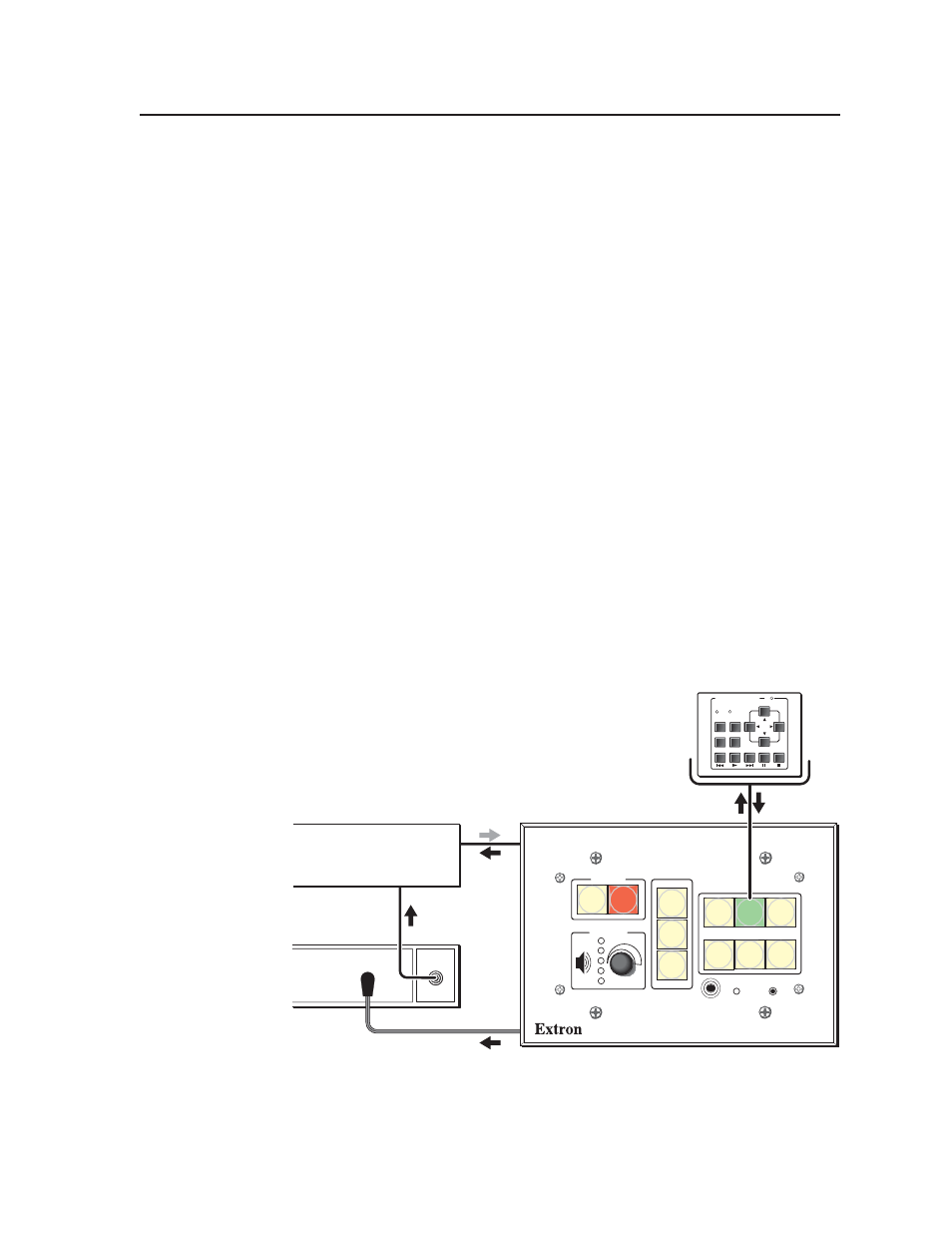

If the combination DVD-VCR player has only one available output port and
neither a distribution amplifi er nor a pair of control modules [(IRCM-DVD or
IRCM-DVD+) and IRCM-VCR] is available for use, you can create a special
confi guration to allow control via the MLC 226 IP or SCP 226 front panel and an
optional IRCM-DV+.
OUTPUT
DVD-VCR
Player
Switcher or
Projector
MLC 226 IP Front Panel
IR Emitter
MLC 226 IP
1 2 3
4 5 6
VOLUME
CONFIG IR
ON OFF PIC
MUTE
AUTO
VCR
DOC
CAM
LAPTOP
DVD-
VCR
PC
DISPLAY
TV
TUNER
DVD & VCR CONTROL
PLAY NEXT/FWD PAUSE STOP
TUNER
Tx
PREV/REW
ENTER
TITLE MENU
TV/VCR
DVD VCR
IRCM-DV+
An IRCM-DV+ normally must be associated with two different MLC or projector
inputs, one for the DVD half of the IRCM-DV+, one for the VCR half. However, in
this installation example, both halves will be associated with the same input.
