Special Applications, cont’d
MLC 226 IP Series • Special Applications 6-8
PRELIMINAR
Y
In this example (shown above and described in the following procedure), the
DVD/VCR player’s output is connected to switcher/projector input 2, which is
associated with the MLC 226 IP’s input 2 button.
N Detailed instructions on basic confi guration via software are available in the
MLC 226 IP Series Setup Guide and in chapter 4 of this manual.

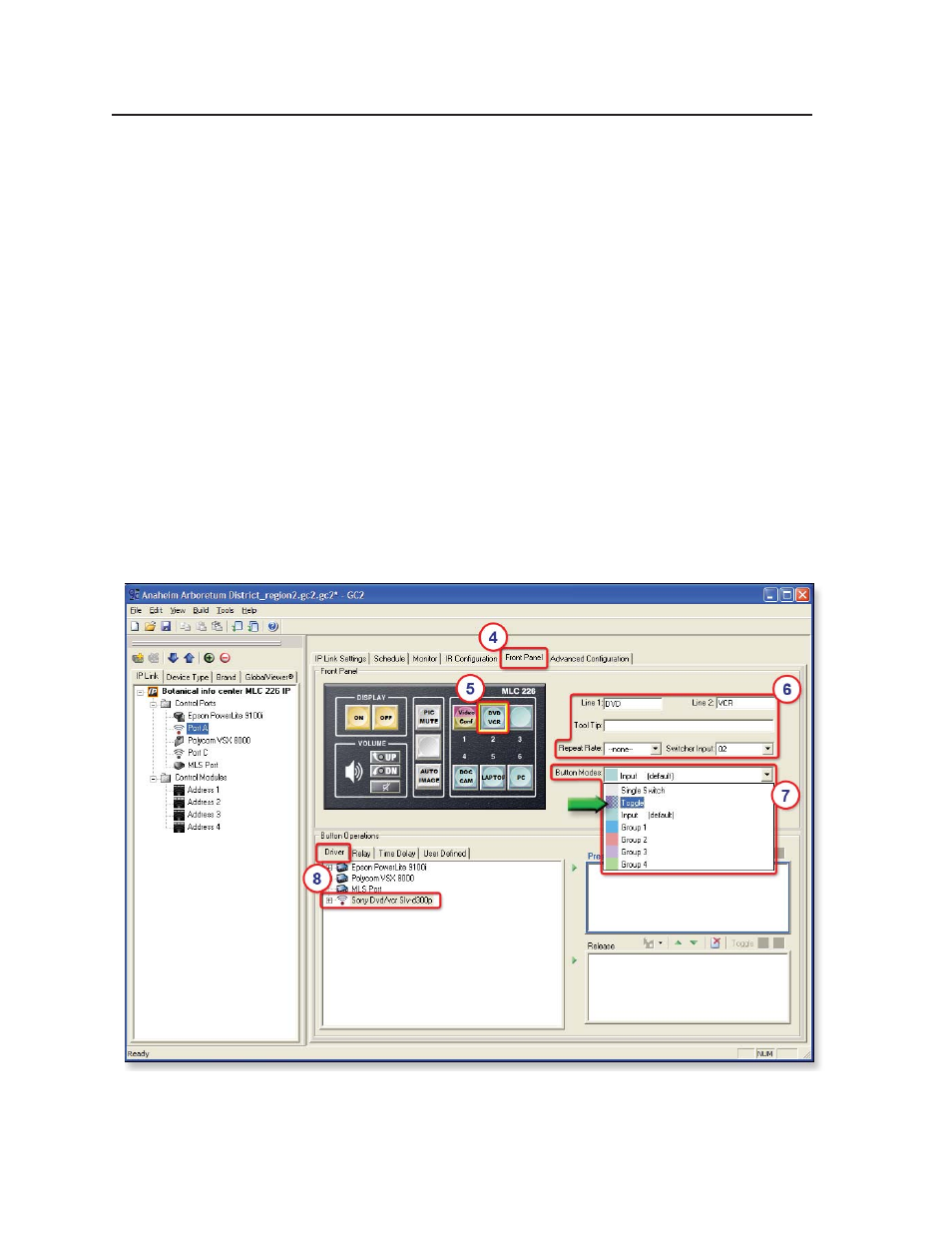

N The numbers in the following sample screen images correspond to the
procedure’s step numbers.
To confi gure a single MLC 226 IP input button to control the IRCM-DV+ and DVD-
VCR player, follow this procedure:
1. Connect cables between the MLC, input/output devices, and the PC as
described in chapter 2, “Installation.”
2. Install and start the Global Confi gurator software and create or open a GC
project, and add an MLC to the project, if that has not already been done. For
instructions, refer to chapter 3 of the MLC 226 IP Series Setup Guide, steps 1, 2,
and 3.
3. In Global Confi gurator, add device drivers and assign them to the Projector
RS-232/IR port and the IR/Serial Output ports. For instructions on these
tasks, refer to chapter 3, step 5, of the MLC 226 IP Series Setup Guide. In this
example the DVD-VCR player will be connected to IR/Serial Output port A.
4. Click on the Front Panel tab.
5. Click the input button (button 2 for this example) that will be used with the
DVD-VCR player.
