Programming and Control, cont’d
MLC 226 IP Series • SIS Programming and Control
5-36
PRELIMINAR
Y
Command/response table for special function SIS commands, continued
Command
ASCII
Command
(host to MLC)
Response
(MLC to host)
X?
values
and additional descriptions
Button press/release emulation
Emulating a button press or release causes the commands and actions that are associated with the button via the main
event script to be executed. Button emulation triggers only what has been set up via the Front Panel tab in Global
Confi gurator. Emulation does not trigger the built-in SIS input switching commands (
X20)
!) or the projector power
on/off commands (1P or 0P).

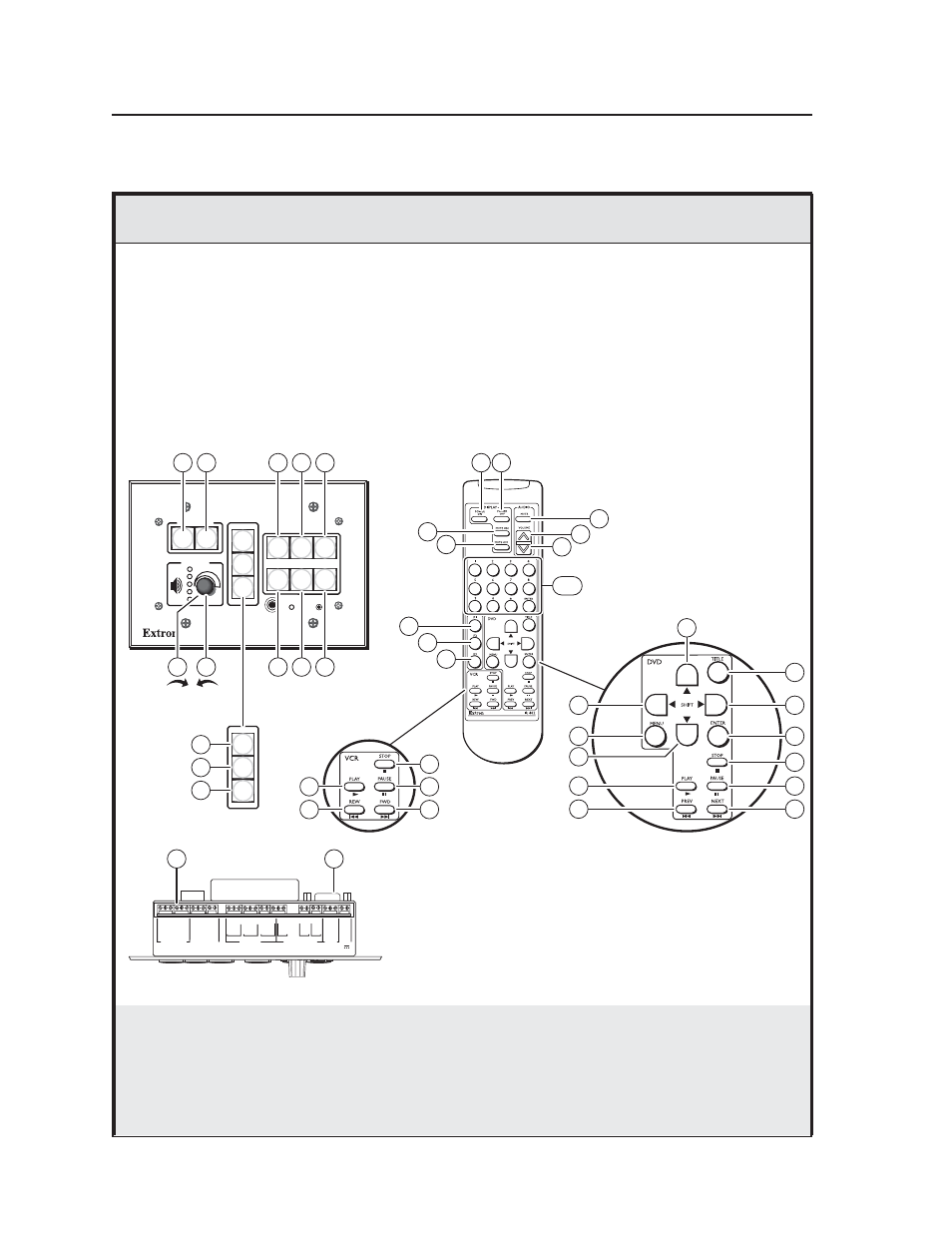

See the diagrams below and on the next page to determine the number of the memory block associated with each
button.
N The input button register numbering shown in the following illustrations is for a stand-alone MLC.
PROJECTOR
MLC 226 IP
1 2 3
4 5 6
VOLUME
CONFIG
IR
ON
OFF
INPUT
1
INPUT
2
F1
F2
F3
INPUT
4
F1
F2
F3
INPUT
5
INPUT
6
INPUT
3
Front
A B C D E
DISPLAY
RS-232/IR
RS-232 12V
CM/IR/SCP
A B C D E
MLS PWR
A B
Tx/IR
Rx
GR
OUND
PWR
S
N
S
GR
OUND
+12V OUT
Rx
Tx
GR
OUND
GR
OUND
+12V IN
+12V OUT
GR
OUND
CONT MOD
IR IN
S
CP COM
NORMALLY OPEN
1 2
COMMON
COMMON
COMMON
GR
OUND
Tx/IR
Tx/IR
Tx/IR
GR
OUND
GR
OUND
A
RELAYS
IR/SERIAL OUT
3 4
B
5 6
C
A
B
C
1
2
106
107
9 10 11
2
1
4
121
5
6
123
7
3
6
5
111
109
125
110
116
118
24
120
122
124
113
112
114
119
117
115
25
108
12 13 14
7
MLC 226 IP
or
SCP 226
Button/Switch Memory Block Numbering for the
MLC 226 IP Series, SCP 226 Series, and IR 402
IR 402
25 24
Clock-
wise
Counter-
clockwise
Digital I/O
(rear host port pin 1)
Power Sense/
Digital Input
See MLC 226 IP
front panel.
9-23
MLC 226 IP Bottom Panel
(rotated 180 degrees)
Emulate a button/switch press
X?
*42#
SwPrs*
X?]
This command causes the
MLC to issue the commands
associated with a button press.
X?
= the number of the memory
block for the button/switch for
which you want to emulate a
press (1 - 128). See the diagrams
above and on the next page.
