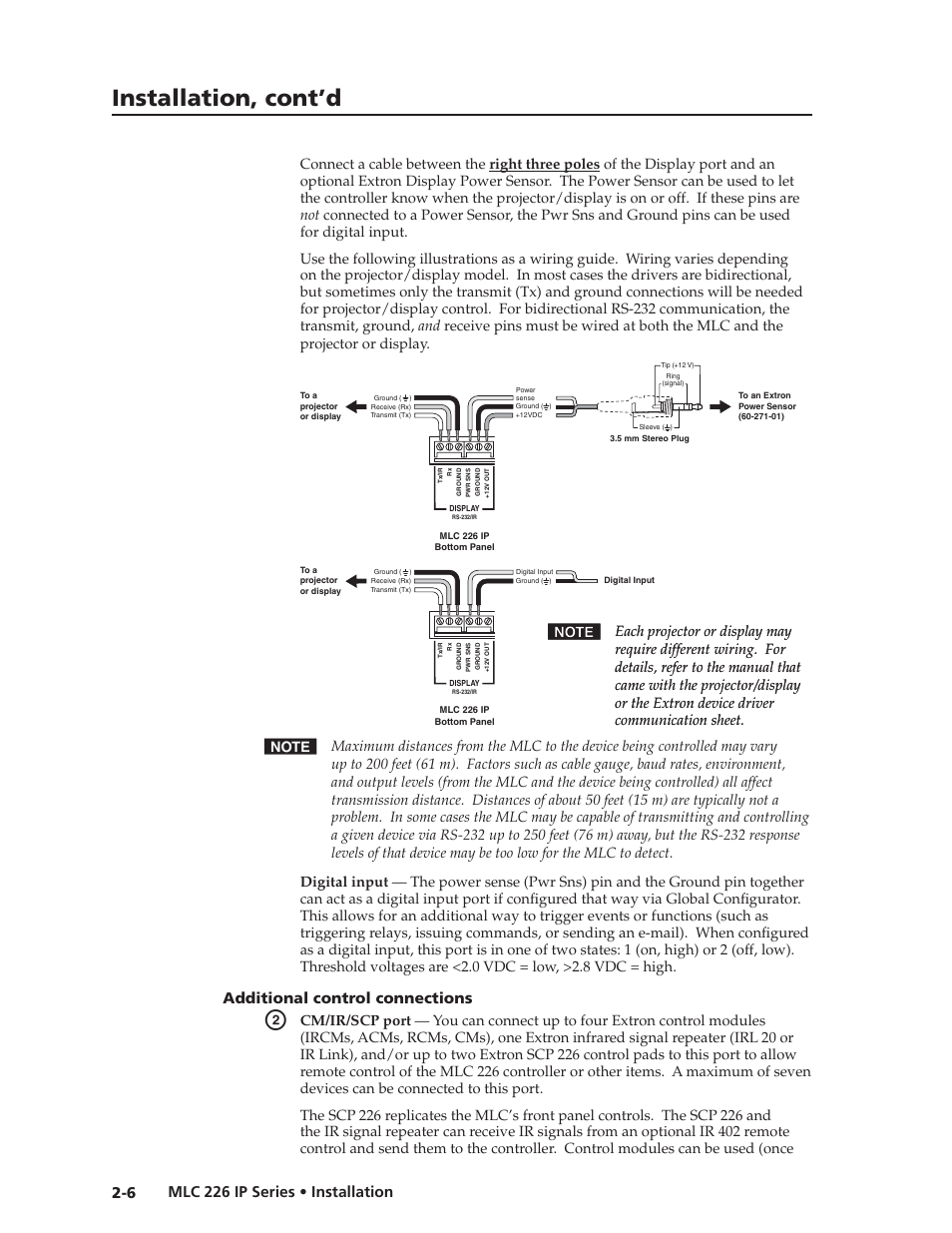

Additional control connections, Preliminar y, Installation, cont’d – Extron Electronics MLC 226 IP Series Installation User Manual
Page 16
