USERS MANUAL
CHATTER™ DATA LOGGER
61

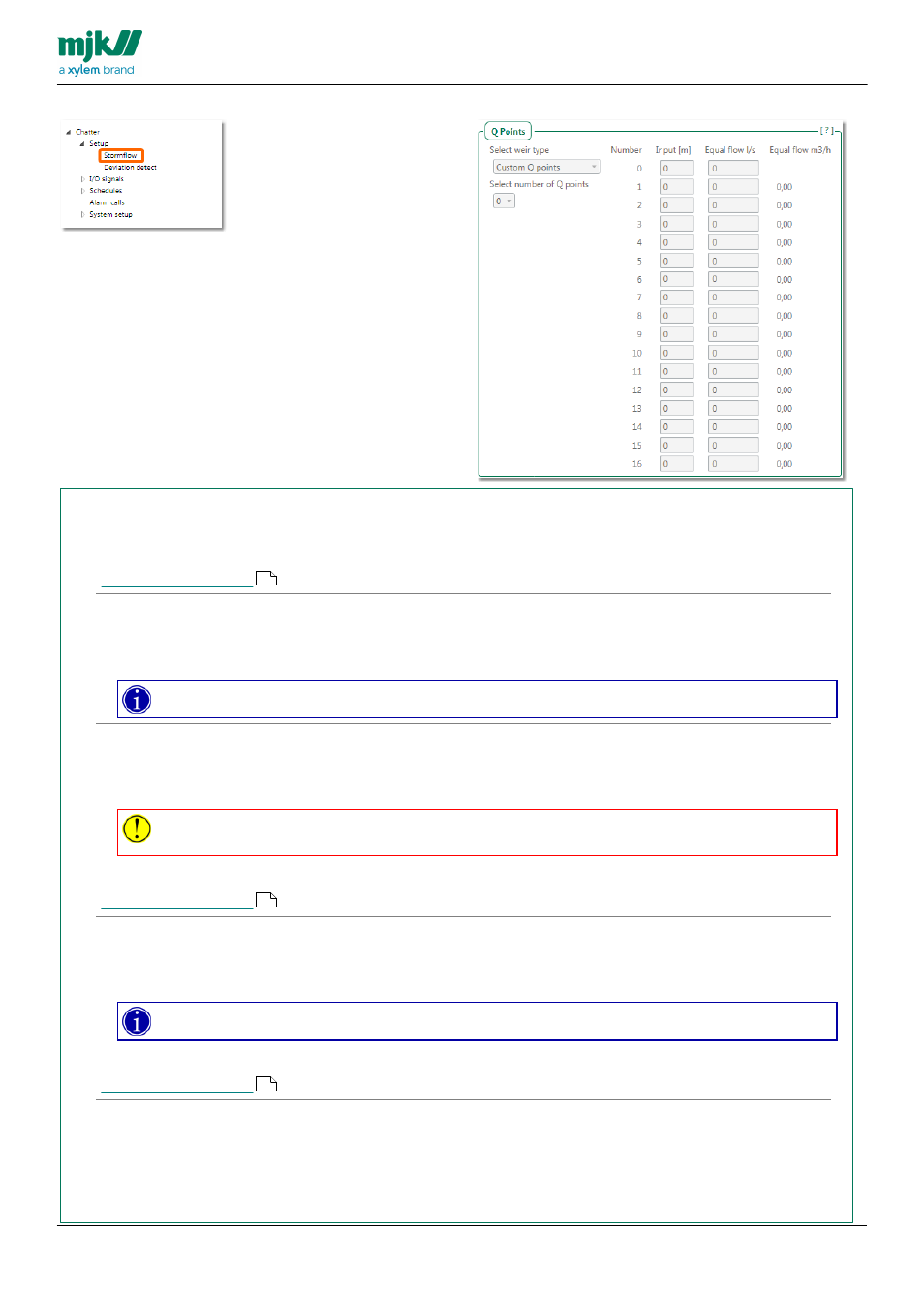

Q points
Use this window to set the way
stormflow calculations will
operate.
Weir type
Select between the supported weir types
A dditional inform ation:
Supported weir types
Select number of Q points
Select the number of Q points you want to use. You can select up ro 16 Q points
This setting is valid for custom Q ponts only
Max head, h [m]
Enter the maximum head, h, for the selected weir measured in meters
It is impossible to calculate the amount of spill if the actual head is greater than the maximum
head. In such a situation, the spill value will be the value corresponding to the maximum head.
A dditional inform ation:
Supported weir types
Weir width, b [m]
Enter the width, b, for the selected weir measured in meters
The Weir width is only available if you select a rectangular weir.
A dditional inform ation:
Supported weir types
Depth below edge
Enter the depth from the crest to the bottom of the weir, p,, measured in meters
