Digital sensors
General
Up to four digital sensors - mechanical switches or active devices - may be connected to the panel mount
version of a Chatter™ Data Logger.
The common side of the digital sensors are connected to either the terminal marked GND or the terminal
marked 3V6-A depending on the type of digital sensor used.
The other side of the digital sensor is connected to one of the terminals DI 1, DI 2, DI 3 or DI 4

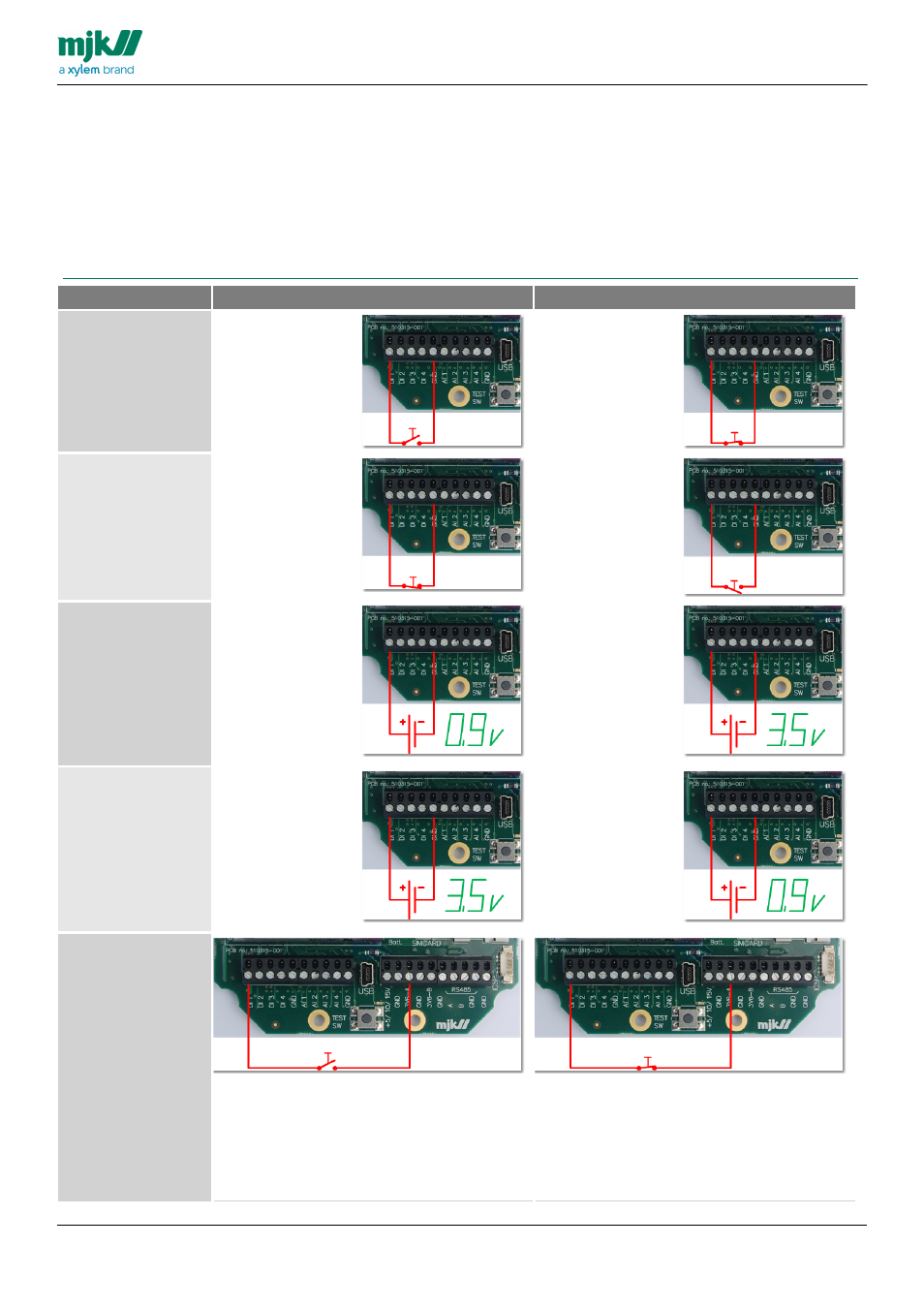

Mode Normal state, no alarm or event Active state, alarm or event
Normally open, a
floating input is the
normal state, an
input connected to
GND generates an
event or alarm.
Normally closed, an
input connected to
GND is the normal
state, a floating
input generates an
event or alarm.
Active high, a
voltage less than 2 V
relative to GND is
the normal state, a
voltage between 2 V
and 5 V relative to
GND generates an
event or alarm.
Active low, a voltage
greater than 2 V
relative to GND is
the normal state, a
voltage between 2 V
and 5 V relative to
GND generates an
event or alarm.
Active high, a
voltage less than 2 V
relative to GND is
the normal state, a
voltage between 2 V
and 5 V relative to
GND generates an
event or alarm.
The power supply
for the alarm switch
is provided by the
Chatter™ Data
Logger
