Connect sensor – Xylem CHATTER RTU and E-mail User Manual
Page 29
USERS MANUAL
CHATTER™ DATA LOGGER
29
Connect sensor

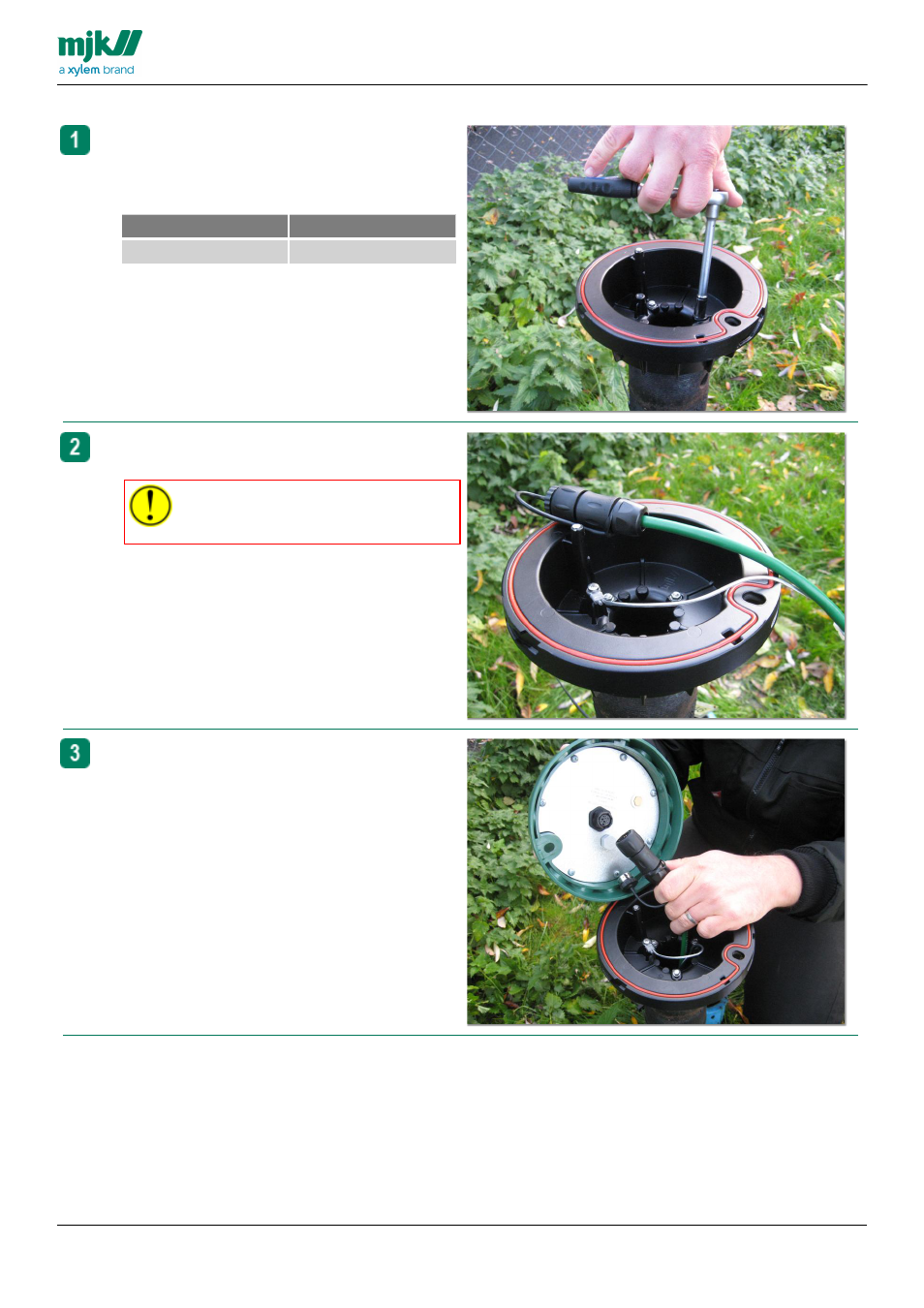

Mount the black aluminium base in the end of the
tube using one set of wedges to fit the internal
diameter of the tube.
Tools
Type
Size
Socket wrench
7 mm
Attach the safety wire to the black aluminium base
using a screw and washer.
Always use the safety wire. The cable
connector is not designed to carry the
weight of the sensor and the cable
Attach the plug on the cable to the receptacle on
the base plate.
The connector is keyed, it will only fit in the correct
position
