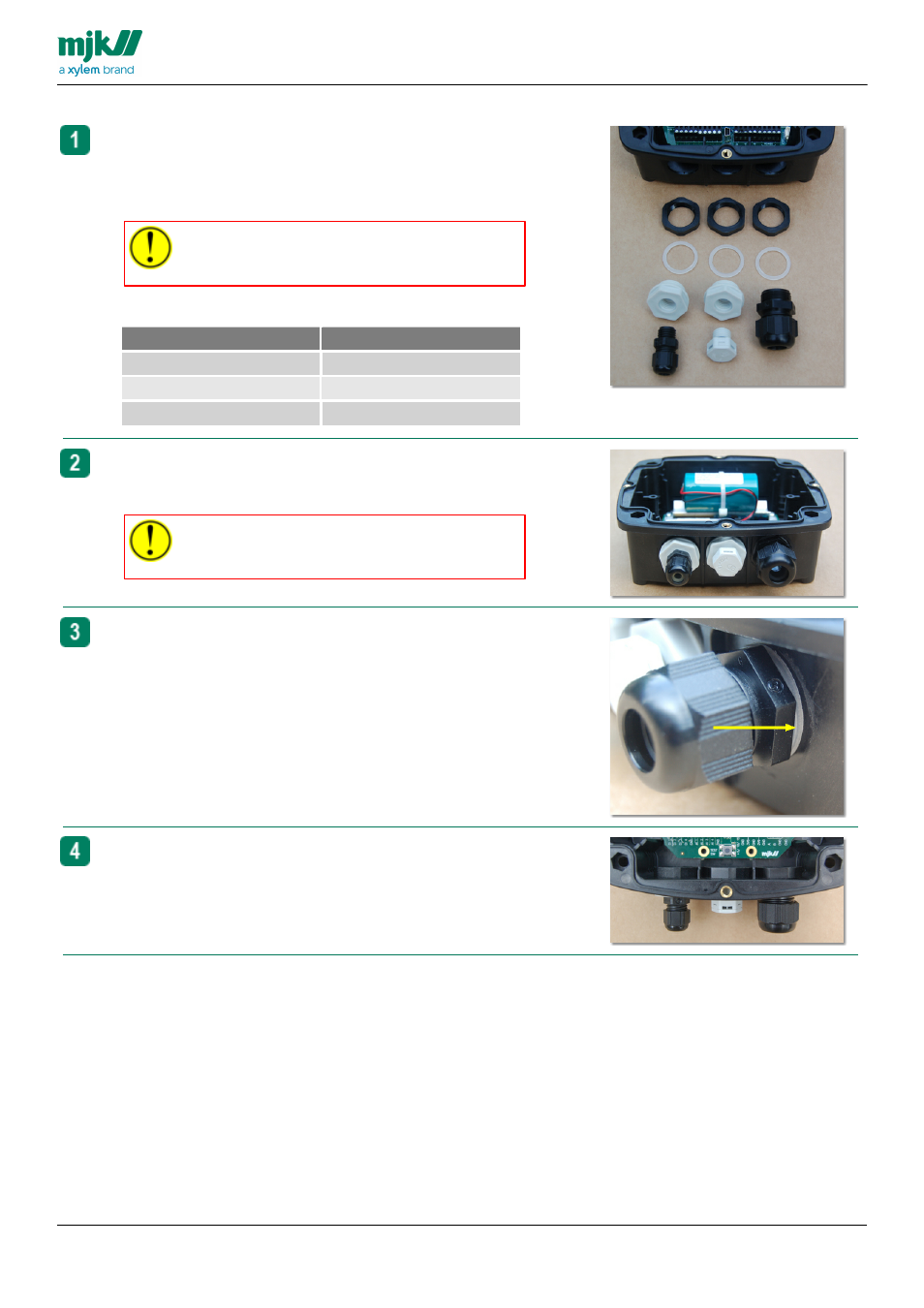

Insert cable glands
Open the plastic bag with the cable glands, the content is
shown here.
Punch out the blanks in the housing where you want to insert
cable glands
Be careful when you knock out the blanks, don't
damage the electronic components inside the
housing.
Tools
Type Size
Open end wrench 15 mm
Open end wrench 17 mm
Open end wrench 24 mm
Insert the cable glands you need. Here are glands for
antenna and transmitter and, in the centre, an air pressure
equalization valve.
The air pressure equalization valve must be
fitted if a pressure transmitter with a relative
measuring system is used.
Place the nylon washer between the cable gland and the
outside of the housing.
The nuts fit into groves on the inside, preventing them from
turning when you tighten the cable glands form the outside.
