Page 58
CPS6000 –48V Indoor/Outdoor Power Shelf
Issue 21 January 2008
58

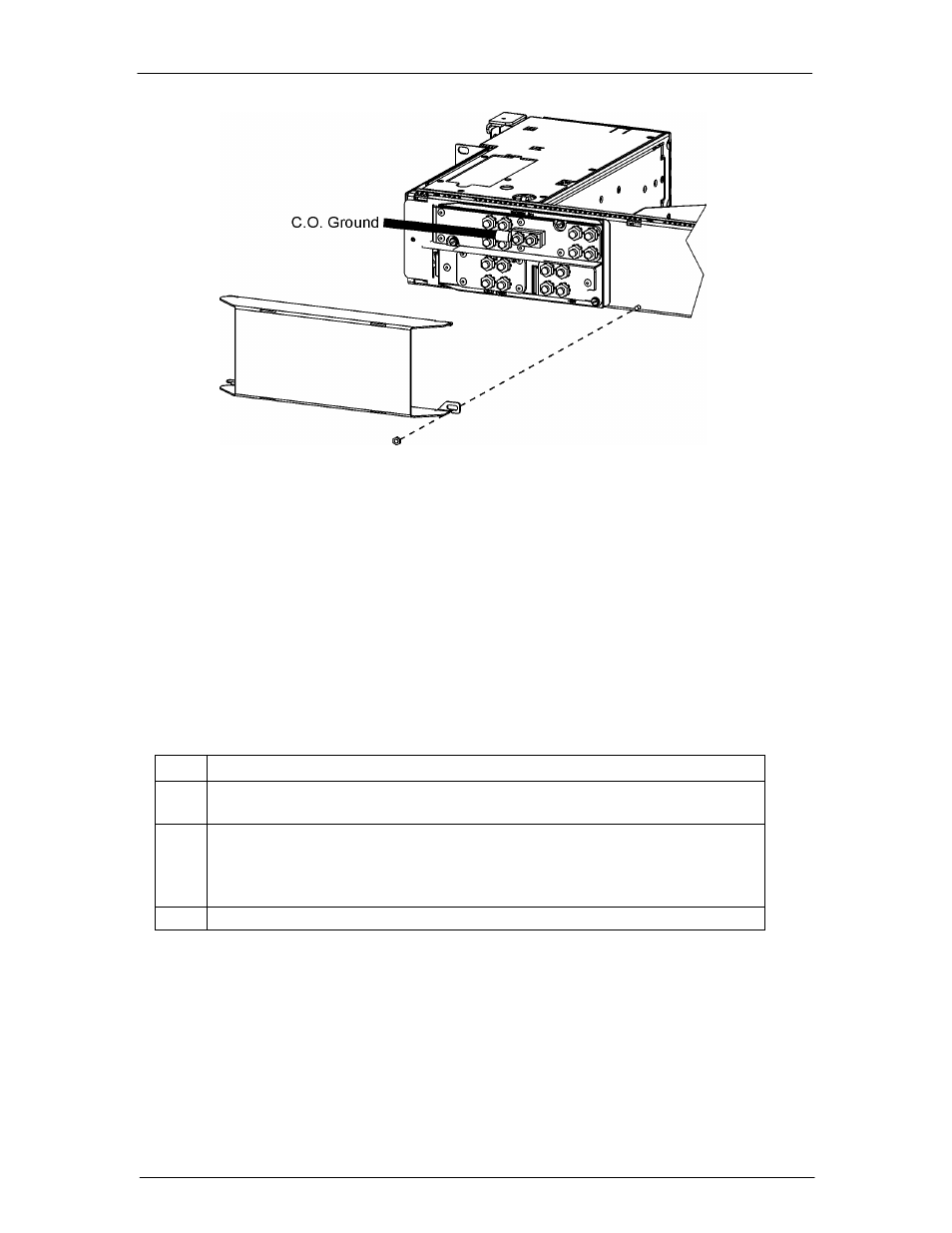

Figure 5-14b: C.O. Ground Conductor Connection
Rectifier Installation
Install the Rectifier
This procedure is used to install the rectifier in the CPS6000 shelf. Figure 5-15 is a 23-inch
shelf with 4 rectifier positions and a Single-Slot Distribution Module.
Note: All rectifier ac and dc connections are made when rectifiers are seated in the shelf.
Rectifiers will power up when ac is applied to the shelf.
Step Action
1.
Before engaging the rectifier connector into the back of the rectifier slot, press
the Latch release button, the latch will spring open. See Figure 5-15.
2.
Firmly push the rectifier into the rectifier slot until the connector on the rear of
the rectifier engages with the connector at the back of the rectifier slot on the
CPS shelf. The latch will pop most of the way up when the rectifier is properly
seated. Push the latch up into the latched position.
3.
Repeat until all rectifiers are installed.
