CPS6000 –48V Indoor/Outdoor Power Shelf
Issue 21 January 2008
12

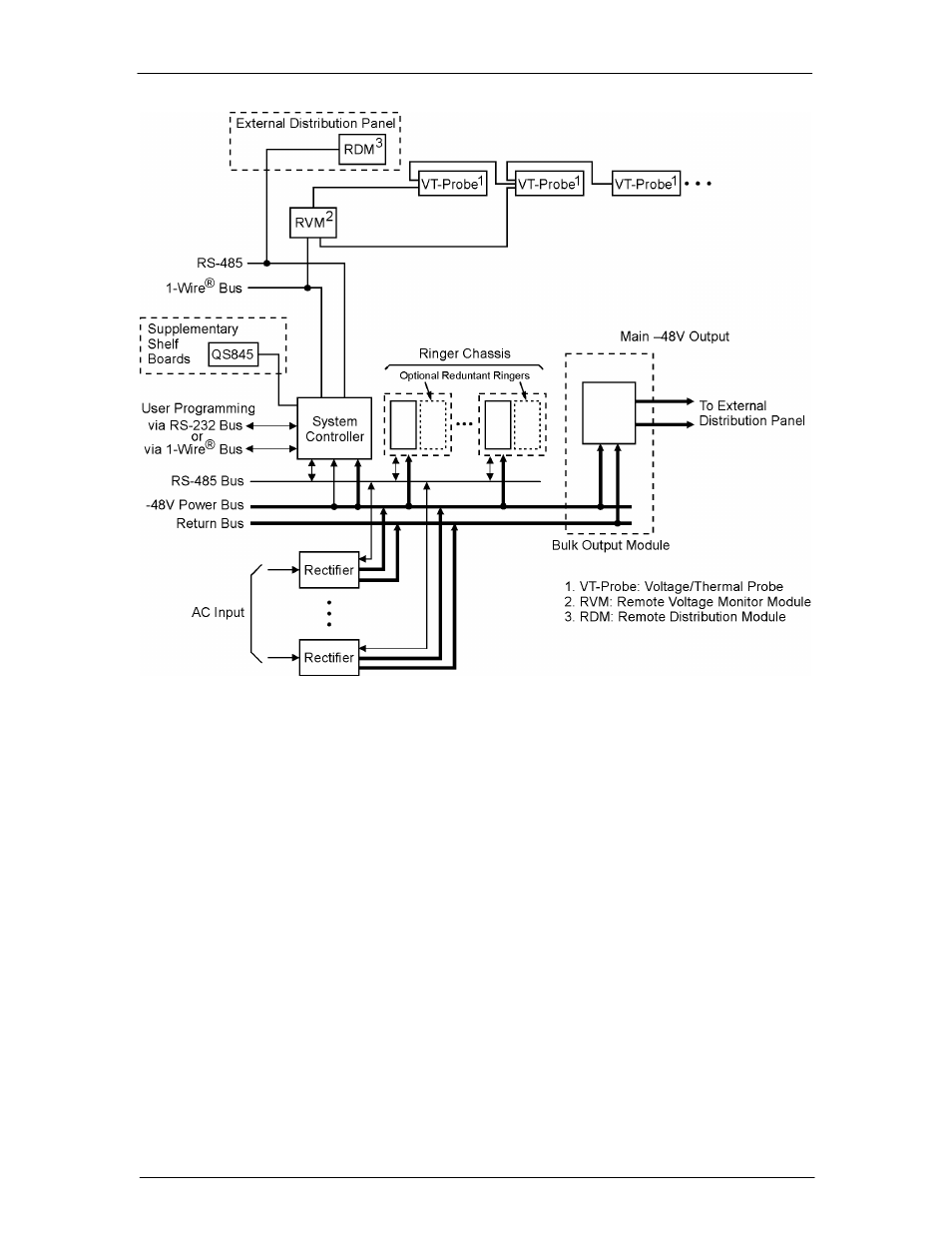

Figure 2-2: CPS6000 System with Bulk Output Module
Shelf Design
Features
•
The shelf is available in 19-inch (phase 2) and 23-inch standard widths and has the
following features:
•
Accepts plug-in rectifier, ringer and Distribution Modules.
•
19-inch shelves provide 4 Power Slots.
•
23-inch shelves provide 5 Power Slots
•
Rectifiers, Ringer Chassis, and Distribution Modules may be installed in Power Slots.
Permits growth of plant capacity and easy maintenance without service interruption.
