CPS6000 –48V Indoor/Outdoor Power Shelf
Issue 21 January 2008
204
Navigating Once Connected

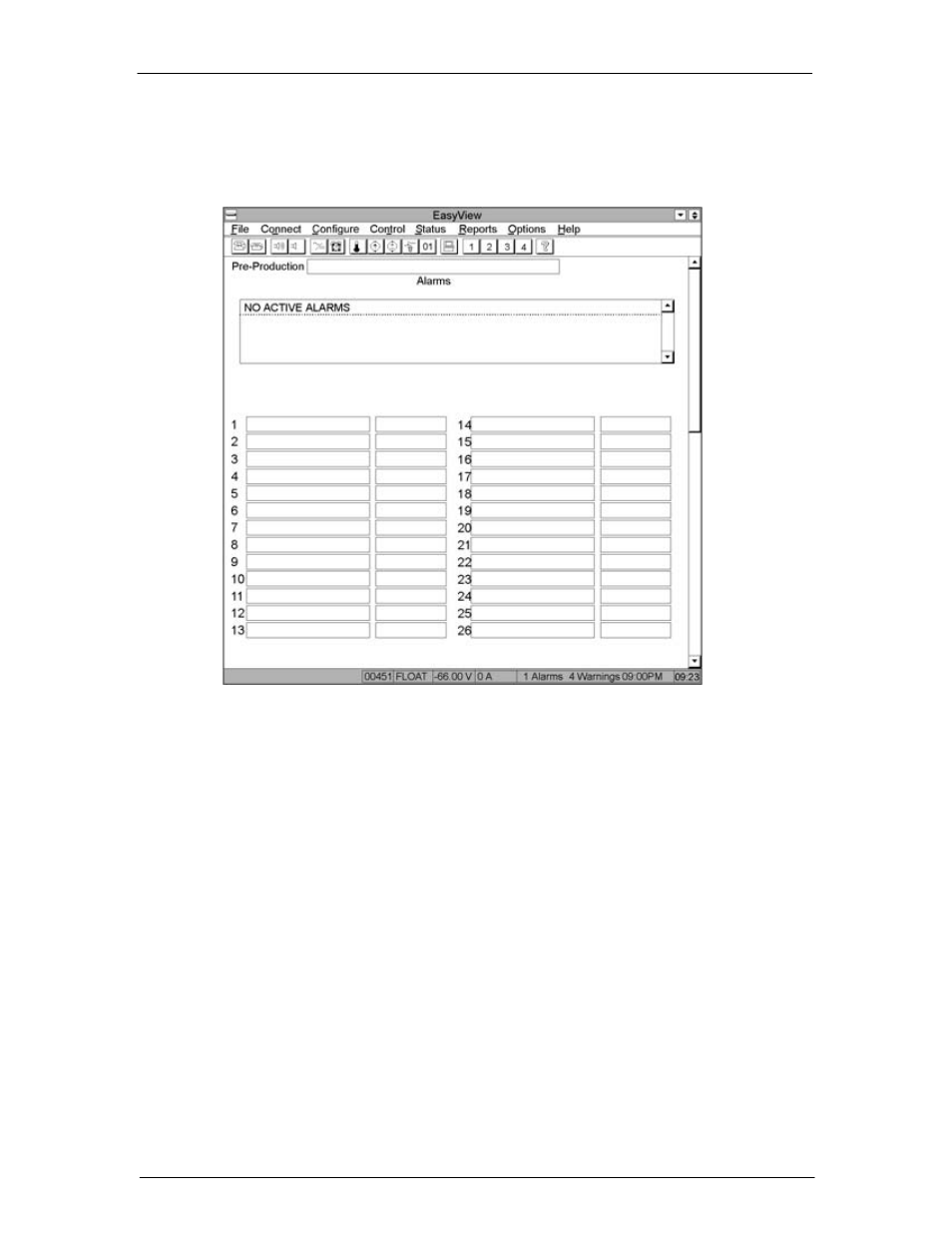

Once you've connected to the controller, you should see the following screen. Note that any
alarms currently on the plant will be visible.
There are three pull-down menus you may choose to gain access to plant features and
functions. They are Configure, Control, and Status.
Configure
This pull-down menu allows one to access all CPS6000 controller parameters that may be
uniquely configured. It allows access to set alarm thresholds and alarm relays, set battery
connect and disconnect thresholds, enable auto-boost mode and set boost charge thresholds,
change passwords, enable imminent shutdown feature, set rectifier parameters, configure
serial ports, and configure slope thermal compensation.
Control
This pull-down menu allows one to access all CPS6000 controller parameters that may be
activated to perform a function. It allows one to perform a plant battery test, clear all clearable
alarms, perform a lamp test, change the plant state from float to boost mode, and inhibit or
restart rectifiers.
