CPS6000 –48V Indoor/Outdoor Power Shelf
Issue 21 January 2008
57
C.O. Ground Conductor Installation
C.O. Ground Conductor Installation
Use an M6 double-hole lug on 5/8-inch center (Not provided) to terminate one end of the
Central Office (C.O.) ground conductor to the CPS shelf. Terminate the other end of the
conductor with a lug appropriate for the installation site. The C.O. Ground conductor can be
top or bottom fed. 6 AWG is the maximum gauge that can be used with regular 5/8-inch
center lugs. To use 2 AWG, a suitable narrow tongue lug like the Burndy/FCI may be
evaluated.
Install C.O. Ground Conductor
This procedure is used to connect the Central Office Ground Conductor.
Step Action
1. Is the cable routed from the top?
2. Yes - Connect the conductor lug to
the bottom 2 positions for C.O.
ground. See Figure 5-14a and b. No - Continue.
3. Connect the C.O. ground conductor to the top two mounting positions.
4. Attach the M6 screws and torque to 65 in-lb (7.3 Nm).

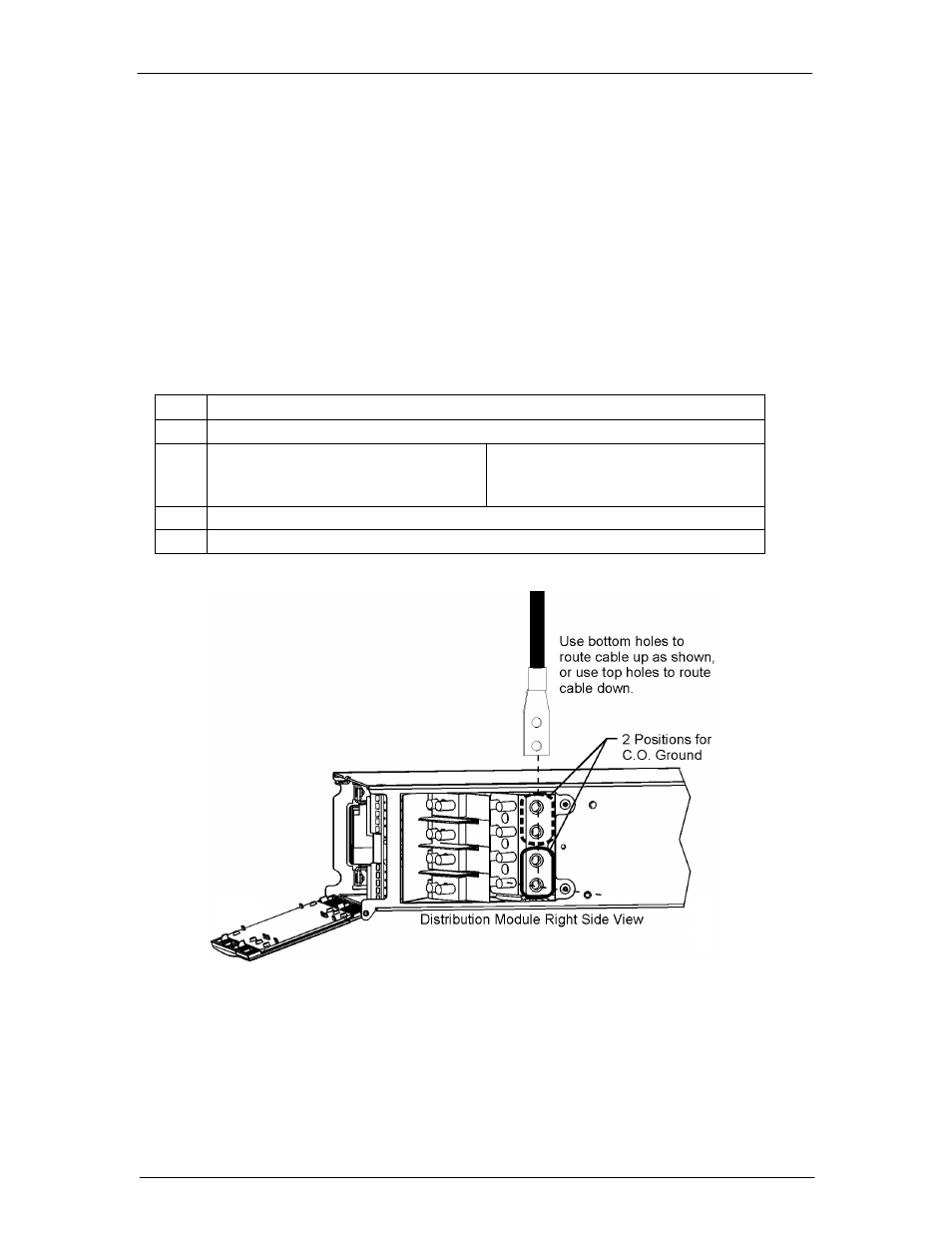

Figure 5-14a: C.O. Ground Conductor Connection
