Page 4

E8950

INSTALLATION GUIDE

ZL0105-0B

PAGE 4

02131

Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

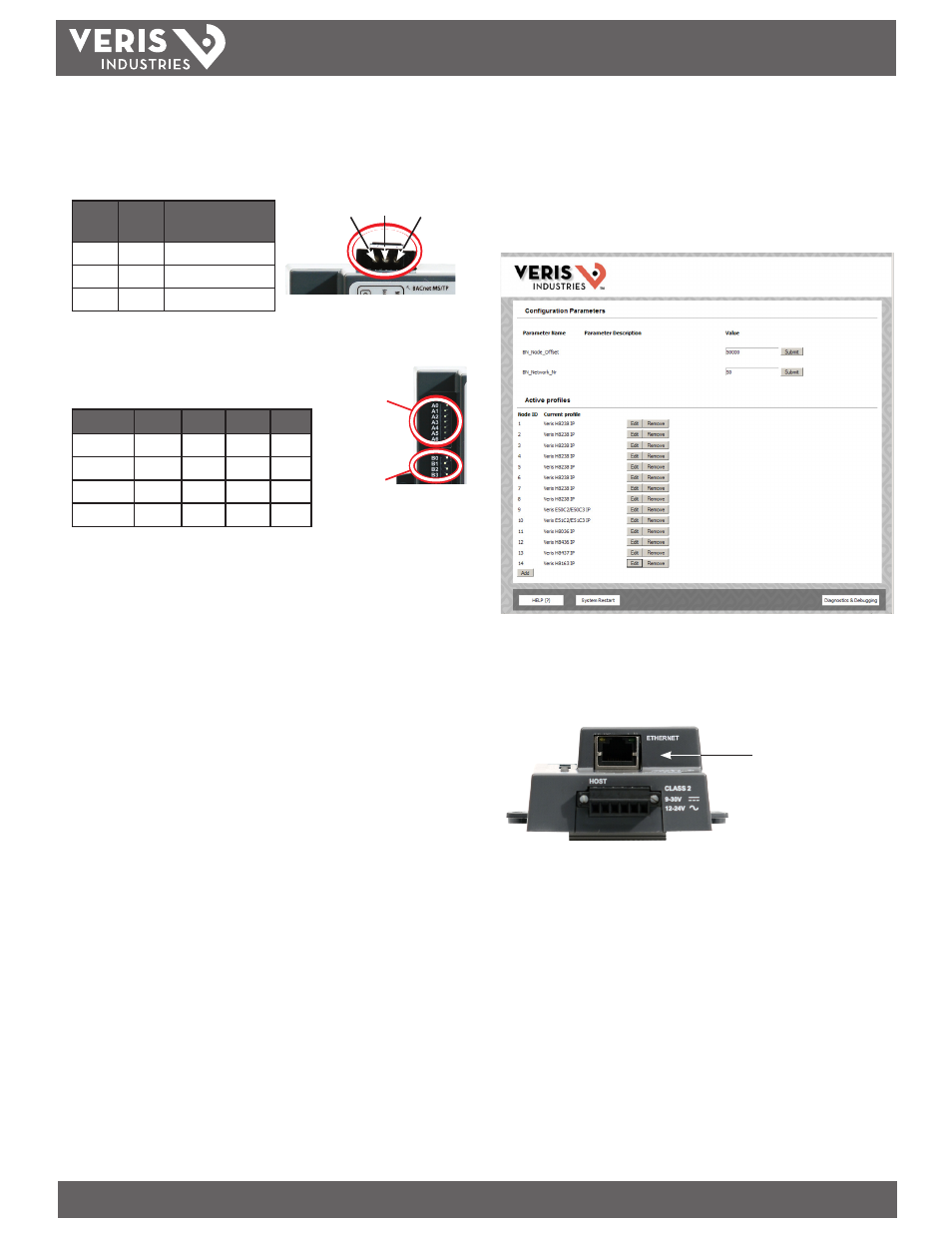

MS/TP Setup (if using BACnet/IP, skip this section)

1. Connect the MS/TP connections on the E8950 to the field controller or other

BACnet MS/TP interface according to its guidelines.

Pin

Label

Pin #

Pin assignment

Pin 1

RS-485 + (MS/TP)

Pin 2

RS-485 - (MS/TP)

Pin 3

RS-485 Shield

2. Set the MAC address using DIP switches A0-A6. See Appendix 2: DIP Switch

Addresses section at the back of this document for a full table of valid address
switch settings.

3. Set the MS/TP baud rate using DIP switches B0-B3.

Baud

9600





19200





38400







76800







Accessing the Graphical User Interface (GUI)

If the E8950 IP address parameters are already configured to work on the network
and the E8950 is being accessed from a PC on that same network, open a web
browser and enter the IP address of the E8950 into the address/URL filed on the
browser. Press enter. The GUI will launch and appear, as shown, in the browser
window.

If the E8950 IP address parameters are not configured for the network, connect a PC
directly and access the GUI from it as follows:

4. Connect a standard CAT5 ethernet cable between a PC and E8950.

Ethernet/BACnet IP

port location

MAC

Address

Baud

Rate

G (Shield) – +
