E8950 INSTALLATION GUIDE
ZL0105-0B PAGE 2 ©2013 Veris Industries USA 800.354.8556 or +1.503.598.4564 / [email protected] 02131
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Aerospond, Veris, and the Veris ‘V’ logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.

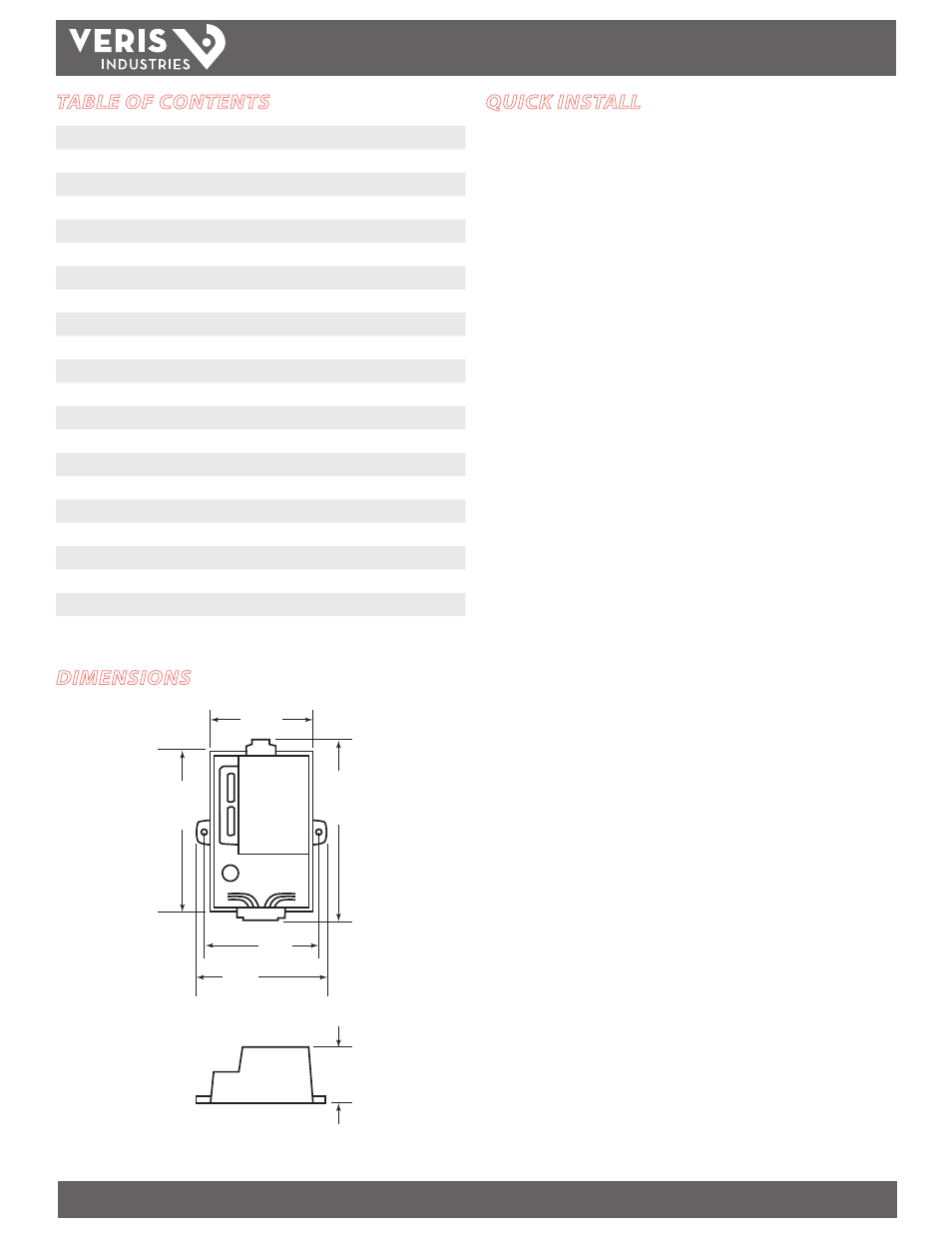

DIMENSIONS
2.9”
(74 mm)
4.5”
(115 mm)
5.1”
(129 mm)
3.25”
(83 mm)
3.6”
(92 mm)
1.6”
(41 mm)
TABLE OF CONTENTS
Dimensions 2
Quick Install 2
Product Diagram 3
LED Blink Codes 3
Installation 3
BACnet Programming Information 8
Troubleshooting 9
China RoHS Compliance Information 9
Appendix 1: Data Objects for Supported Metering Devices
Enercept H8035 Series Meter
10
Enercept H8036 Series Meter 11
E50C2 and E50C3 (without logging) Uni-Directional Meter 12
E51C2 and E51C3 (without logging) Bi-Directional Meter 15
H8436 Series Meter 20
H8437 Series Meter 21
H8238 Multi-Circuit Meter 24
H8163 Energy Meter with H8163-CB Modbus Communication Board 28
E30A042, E30A142 Branch Circuit Power Meter 31
E30Bxxx, E30Cxxx, E31Bxxx, E31Cxxx Branch Circuit Power Meter 62
Appendix 2: DIP Switch Address Settings 81
Appendix 3: Quick Guide to Calculate the Number of Meters Supported 83
QUICK INSTALL
1. Connect the Modbus outputs of the metering devices to the Modbus terminals on
the 6-pin connector of the E8950. Daisy chain up to 32 metering devices to the
E8950 (provided that the total number of data points from all devices does not
exceed 1000).
2. Connect 9-30 VDC or 12-24 VAC to the power terminals on the 6-pin connector.
3. Use DIP switches S0 to S2 to set the Modbus baud rate on the E8950 to the same
rate as on all metering devices in the chain (factory default is 9600 baud).
4. Use DIP switch A7 to select the BACnet physical layer (MS/TP or IP).
5. If using BACnet MS/TP, connect the MS/TP connections to the BACnet interface.
Use DIP switches A0 to A6 to set the MAC address, and use DIP switches B0 to B3 to
set the MS/TP baud rate (factory default is 76800).
6. If using BACnet/IP, connect the E8950 to a PC using an ethernet cable and use the
GUI to set the IP address.
7. If the default network number (50) or the default Device_ID offset will cause
conflicts, connect the E8950 to a PC using an ethernet cable and use the GUI to set
them appropriately.
8. Apply power to the E8950 and allow time to map all Modbus devices in the chain.
9. If the configuration is final and will not change (no Modbus devices will be added,
removed, or changed), set the configuration mode to Normal (slide DIP switch A7
to the right) to speed future power-up cycles and prevent the auto-configuration
mechanism from overwriting when power is cycled.
