Chapter 5 Device Network Settings
Vantage CNM User’s Guide
66

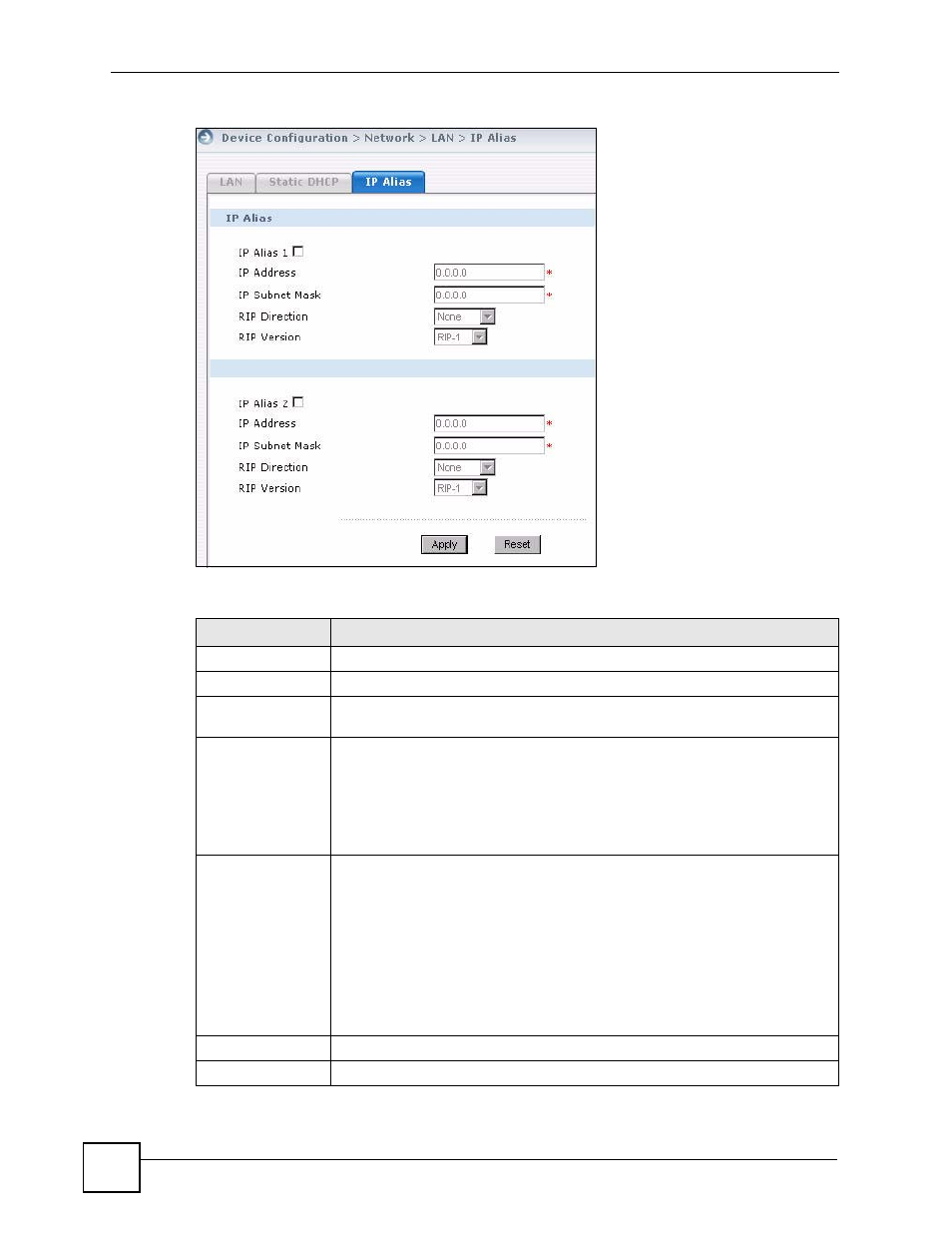

Figure 30 Device Operation > Device Configuration > Network > LAN > IP Alias
The following table describes the fields in this screen
Table 16 Device Operation > Device Configuration > Network > LAN > IP Alias
LABEL DESCRIPTION
IP Alias 1,2 Select the check box to configure another network for the device.
IP Address Enter the IP address of the device in dotted decimal notation.
IP Subnet Mask The device automatically calculates the subnet mask based how many aliases
you select. See also the appendices for more information on IP subnetting.
RIP Direction RIP (Routing Information Protocol, RFC1058 and RFC 1389) allows a router to
exchange routing information with other routers. The RIP Direction field controls
the sending and receiving of RIP packets. Select the RIP direction from Both/In
Only/Out Only/None. When set to Both or Out Only, the device broadcasts its
routing table periodically. When set to Both or In Only, it incorporates the RIP
information that it receives; when set to None, it does not send any RIP packets
and ignores any RIP packets received.
RIP Version The RIP Version field controls the format and the broadcasting method of the
RIP packets that the device sends (it recognizes both formats when receiving).
RIP-1 is universally supported but RIP-2 carries more information. RIP-1 is
probably adequate for most networks, unless you have an unusual network
topology. Both RIP-2B and RIP-2M sends the routing data in RIP-2 format; the
difference being that RIP-2B uses subnet broadcasting while RIP-2M uses
multicasting. Multicasting can reduce the load on non-router machines since
they generally do not listen to the RIP multicast address and so will not receive
the RIP packets. However, if one router uses multicasting, then all routers on
your network must use multicasting, also. By default, RIP direction is set to Both
and the Version set to RIP-1.
Apply Click Apply to save your changes back to the device.
Reset Click Reset to begin configuring this screen afresh.
