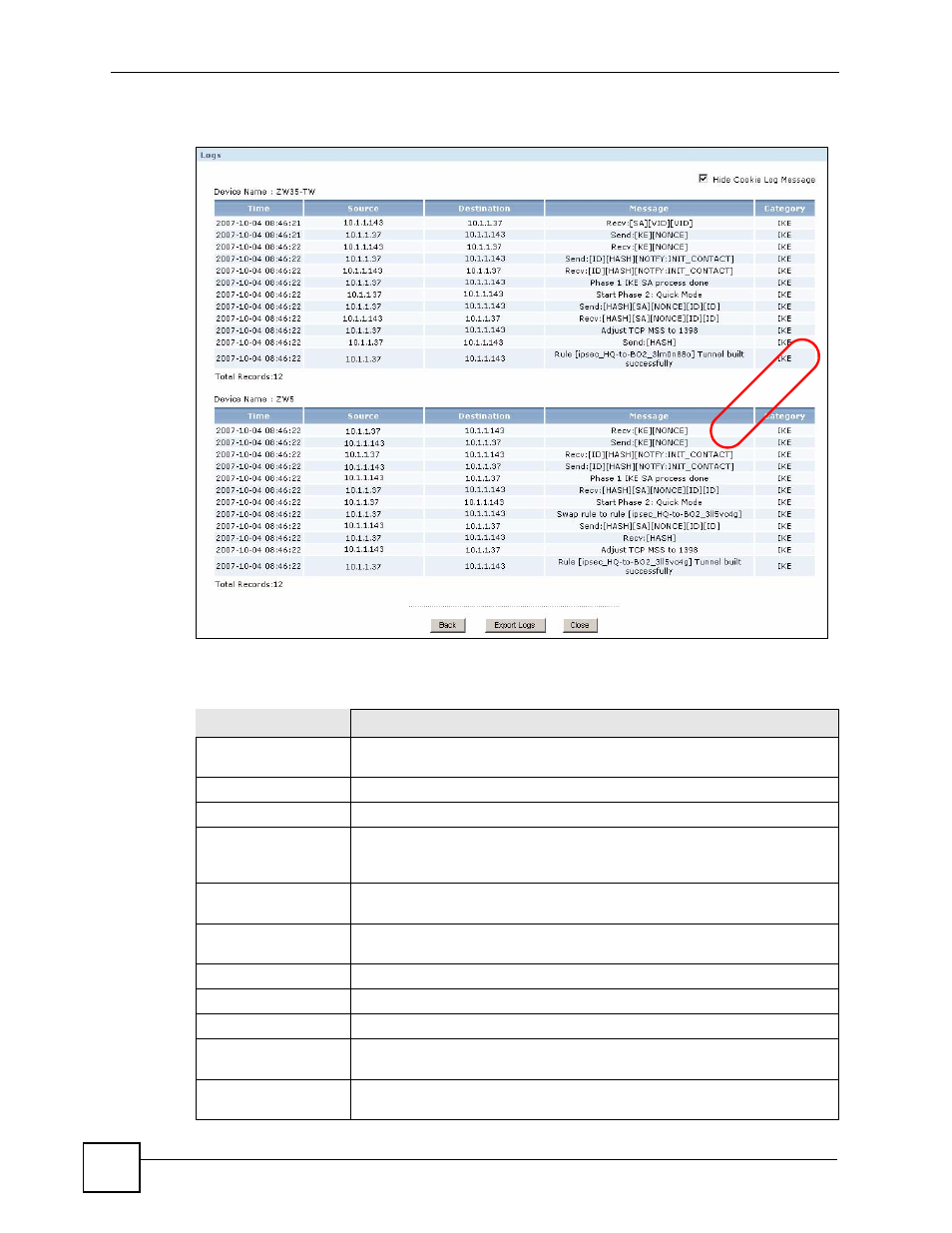

Figure 145 VPN Management > VPN Monitor > By Community > Show Detail > Diagnostic >
Logs
The following table describes the fields in this screen.
Table 125 VPN Management > VPN Monitor > By Community > Show Detail > Diagnostic >
Logs
LABEL DESCRIPTION
Hide Cookie Log
Message Select this to hide the IKE cookie logs.
Device Name: This field displays the device name for the following logs section.
Time This field displays the time the log was recorded.
Message This field states the reason for the log. Refer to the device User’s Guide for
log message descriptions and the device CLI Reference Guide for details on
using the command line interpreter to display logs.
Source This field lists the source IP address and the port number of the incoming
packet.
Destination This field lists the destination IP address and the port number of the incoming
packet.
Category This displays the category type of the logs.
Total Records This entry displays the total number of records on the current page of the list.
Back Click this to return to the previous screen.
Export Logs Click this to export the current logs shown in this screen to a
TriggerLogsStore.csv file.
Close Click this to close the diagnostic screens and return to the VPN Tunnel
Status Screen.
