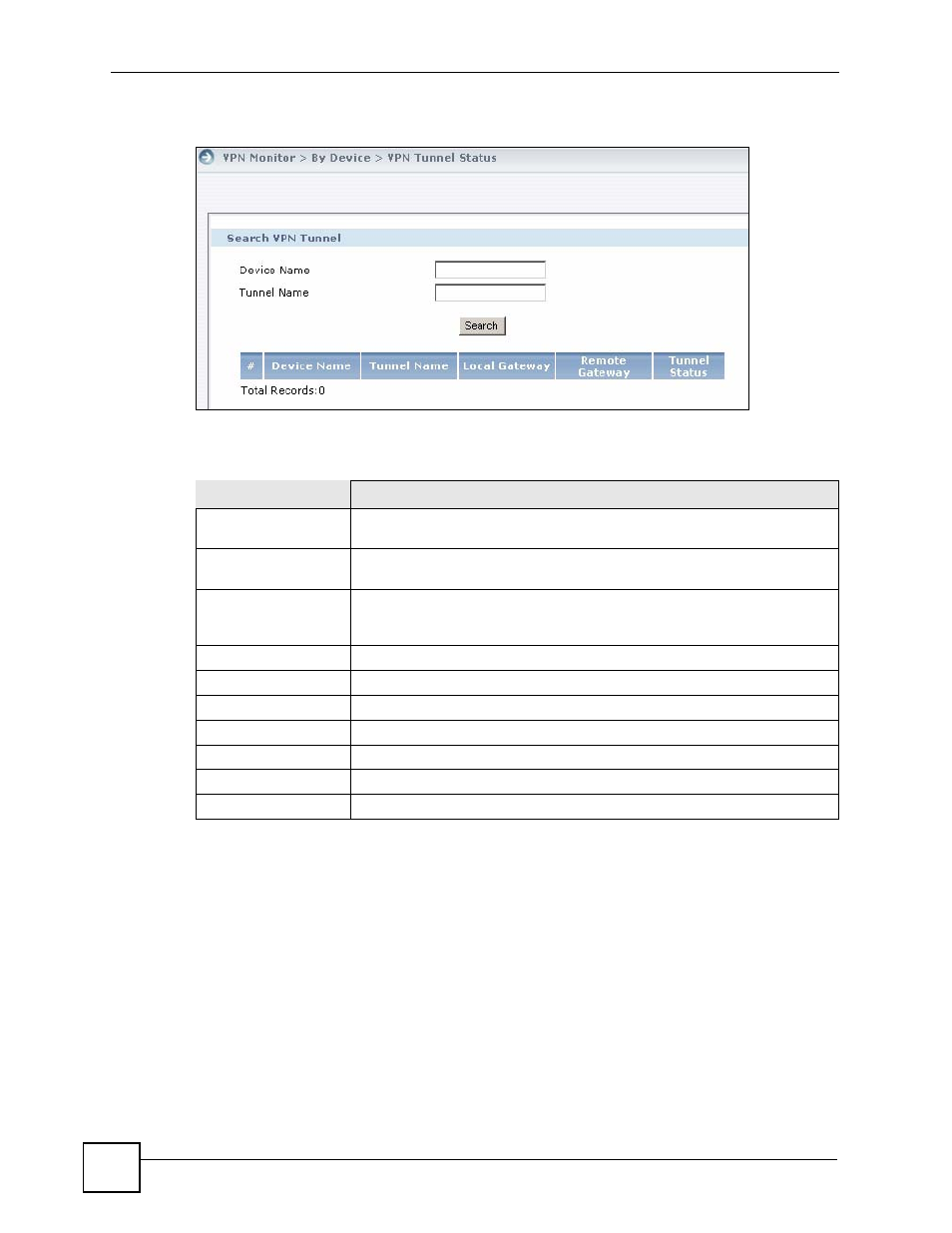

Figure 147 VPN Management > VPN Monitor > By Device > VPN Tunnel Status > Search
Special Tunnel
The following table describes the fields in this screen.
14.3.3 SA Monitor
Use this menu item to monitor all VPN tunnel status for devices. To open this screen, click
VPN Management from the menu bar and click VPN Monitor > By Device > SA Monitor in
the navigation panel.
Table 127 VPN Management > VPN Monitor > By Device > VPN Tunnel Status > Search
Special Tunnel
LABEL DESCRIPTION
Device Name Type a partial of or a full case-insensitive device name. A blank of device
name is equivalent to “any”.
Tunnel Name Type a partial or a full case-sensitive tunnel name. A blank of tunnel name is
equivalent to “any”.
Search Click this to query device(s) or tunnel(s) according to the device name and
tunnel name you input. Clicking this with both fields empty queries all
configured VPN tunnels.
# This is the number of an individual entry.
Device Name This displays the name of the device the VPN tunnel is configured for.
Tunnel Name This displays the name of the tunnel.
Local Gateway This displays the local VPN gateway IP address of this tunnel.
Remote Gateway This displays the remote VPN gateway IP address of this tunnel.
Tunnel Status This displays the current status of this tunnel
Total Records This entry displays the total number of records on the current page of the list.
