6-11

Section

System Maintenance

216

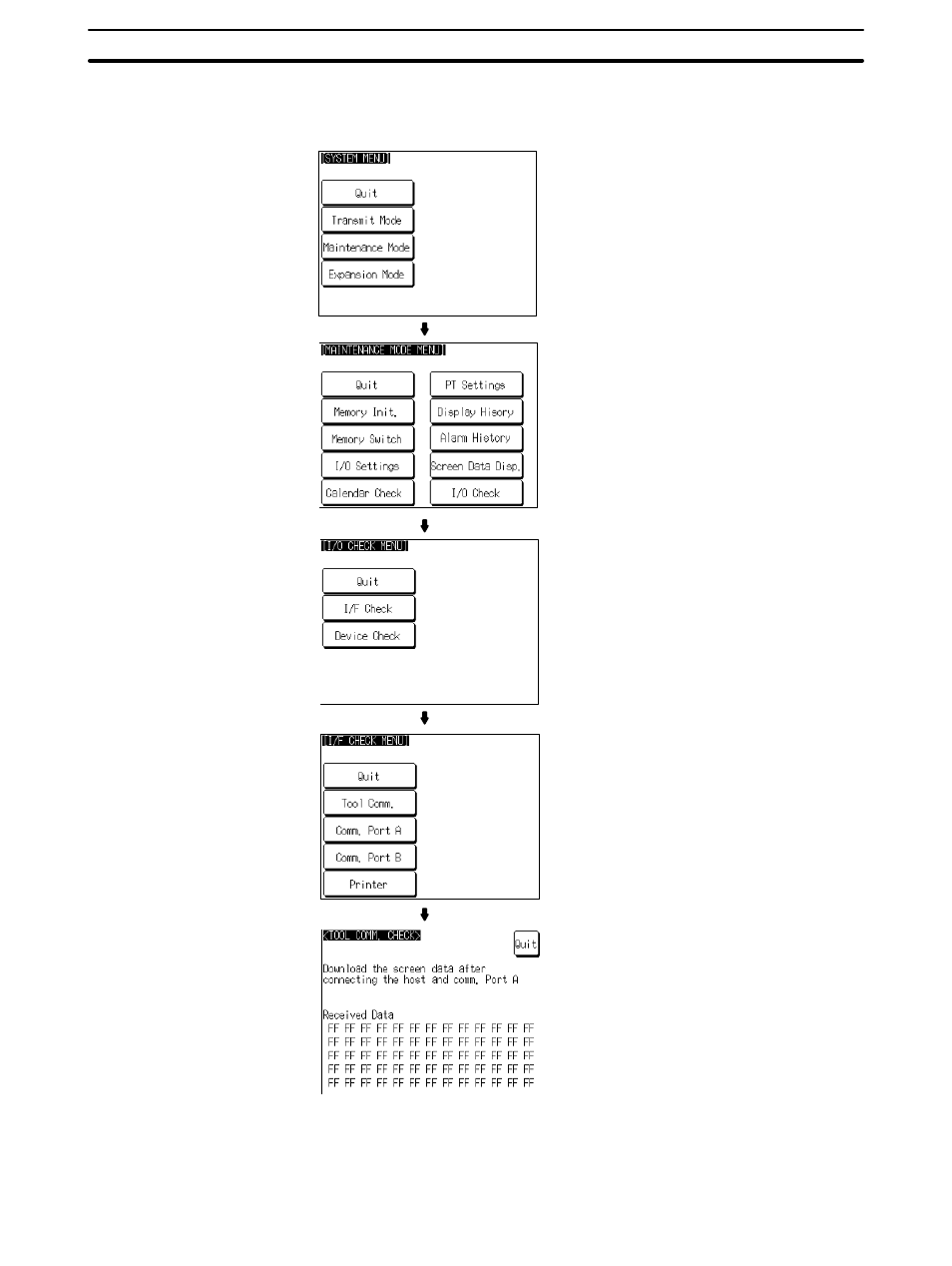

Check communication with the Support Tool by following the menu operation
from the System Menu shown below.

Select Maintenance Mode.

Select I/O Check.

Select I/F Check.

Select Tool Comm..

The check on communication with the Sup-
port Tool starts.

Ver 3.10

• If communication with the Support Tool is normal, data transmitted from the

Support Tool is displayed as hexadecimal data when received by the
NT31/NT31C.

Checking
Communication with the
Support Tool
