3.2 Typical characteristics
4513/4514 Group User’s Manual
3.2.5 A-D converter typical characteristics

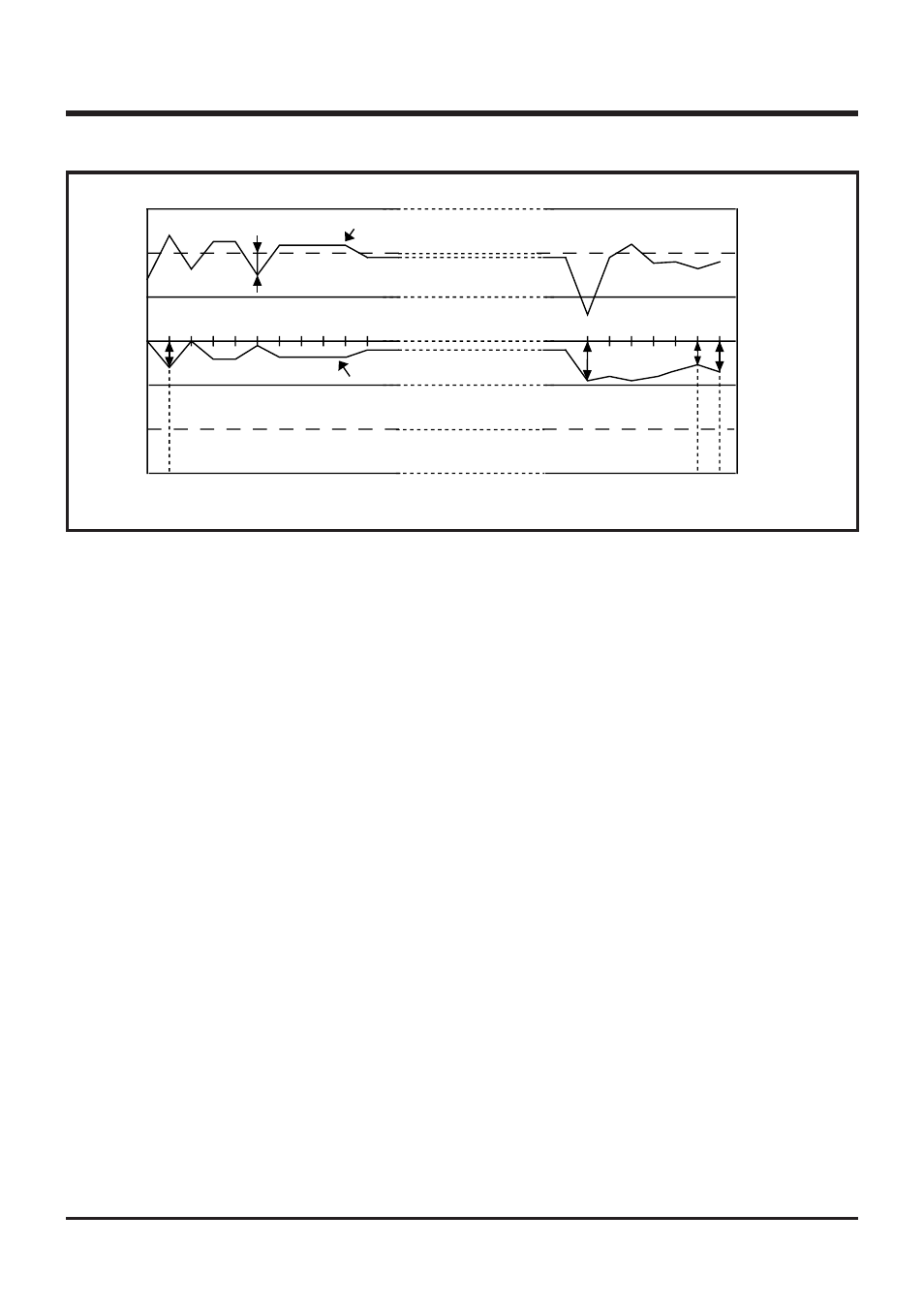

Fig. 3.2.1 A-D conversion characteristics data
Figure 3.2.1 shows the A-D accuracy measurement data.
(1) Non-linearity error ......................... This means a deviation from the ideal characteristics between V
0
to
V
1022
of actual A-D conversion characteristics. In Figure 3.2.1, it is
(
➃
–
➀
)/1LSB.
(2) Differencial non-linearity error .... This means a deviation from the ideal characteristics between the
input voltages V
0
to V
1022
necessary to change the output data to
“1.” In Figure 3.2.1, this is
➁
/1LSB.
(3) Zero transition error ..................... This means a deviation from the ideal characteristics between the
input voltages 0 to V
DD
when the output data changes from “0” to “1.”
In Figure 3.2.1, this is the value of
➀
.
(4) Full-scale transition error ............. This means a deviation from the ideal characteristics between the
input voltages 0 to V
DD
when the output data changes from “1022”
to “1023.” In Figure 3.2.1, this is the value of
➄
.
(5) Absolute accuracy ........................ This menas a deviation from the ideal characteristics between 0 to
V
DD
of actual A-D conversion characteristics. In Figure 3.2.1, this is
the value of ERROR in each of
➀
,
➂
,
➃
and
➄
.
For the A-D converter characteristics, refer to the section 3.1 Electrical characteristics.
